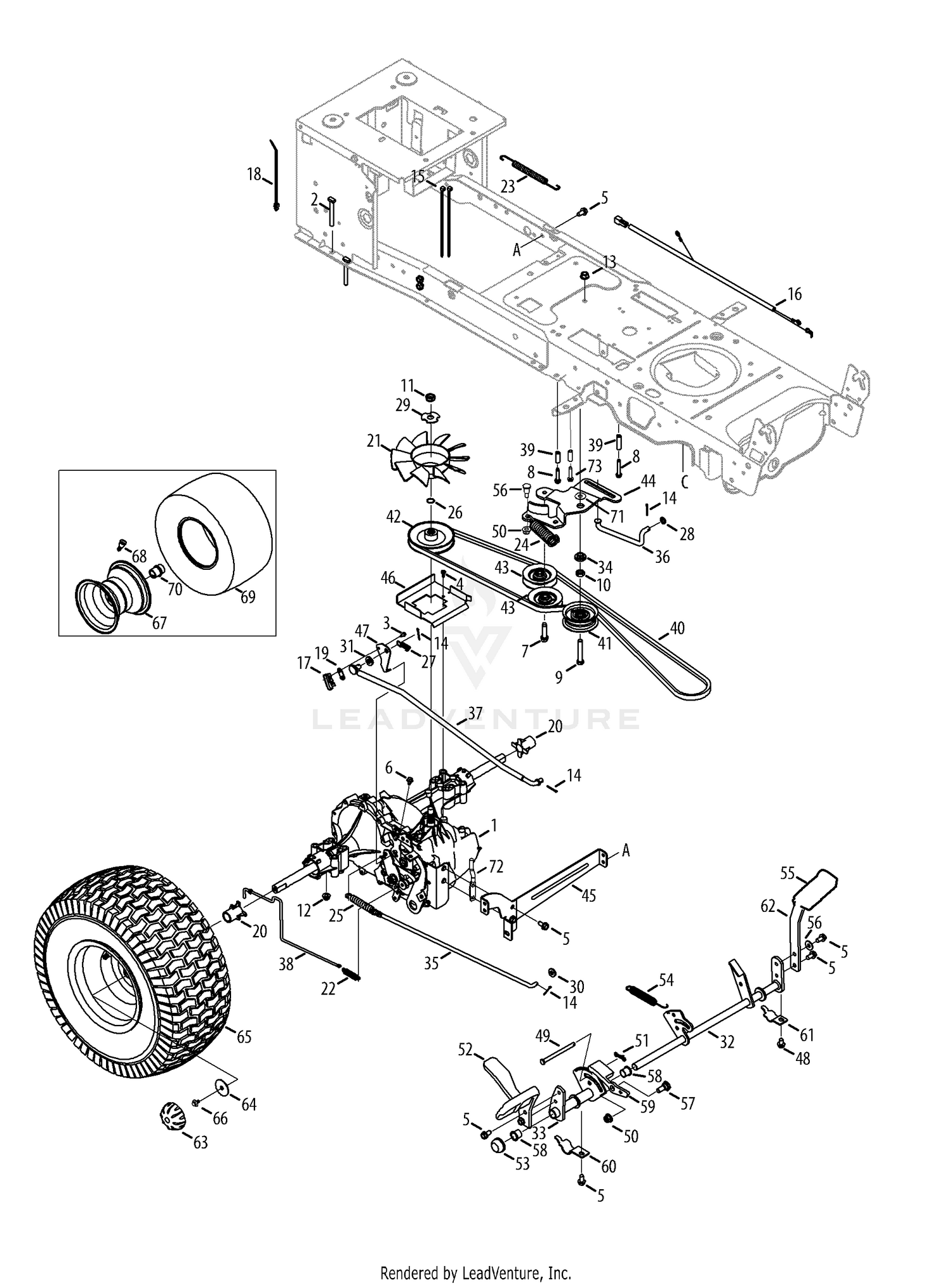

| Ref | Part Number | Description |
|---|
| 1 |
918-0319 |
TRANSMISSION ASSEMBLY Not Available Price: |
| 2 |
710-0176 |
Hex Screw, 5/16-18:2.75 Price: $3.89 |
| 3 |
710-0227 |
Screw, #8-18:0.500 Price: $3.90 |
| 4 |
710-0351 |
Screw, #10-16:0.500 Price: $3.90 |
| 5 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 6 |
710-0653 |
Taptite Screw, 1/4-20:0.375 Price: $3.78 |
| 7 |
710-1007 |
Screw, Sems, 3/8-16, 1.500 Price: $5.71 |
| 8 |
710-1325 |
Taptite Screw, 1/4-20:1.625 Price: $4.11 |
| 9 |
710-3011 |
Hex Screw, 3/8-16:2.25 Price: $6.49 |
| 10 |
912-0240 |
Jam Nut, 7/16-20 Price: $3.90 |
| 11 |
712-0346 |
Jam Nut, 1/2-20 This part replaces 912-0346. Price: $3.95 |
| 12 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 13 |
912-0431 |
Flangelock Nut, 3/8-16 Price: $4.29 |
| 14 |
714-0111 |
Cotter Pin This part replaces 914-0111. Price: $4.20 |
| 15 |
725-0157 |
Cable Tie, 3/16 X .05 X 7.4 Price: $3.46 |
| 16 |
725-04791A |
Jumper Harness Price: $13.92 |
| 17 |
725-1644 |
SAFETY SPRING SWITCH Price: $8.34 |
| 18 |
926-0154 |
Push Mount Cable Tie 7.5 LG Price: $5.50 |
| 19 |
926-0320 |
Insulator Nut Plate Price: $6.01 |
| 20 |
731-05299A |
Sleeve, .765 ID x 1.500 LG Price: $3.66 |
| 21 |
731-06098 |
Hydro Fan Price: $17.02 |
| 22 |
932-0209 |
Extension Spring, .48 OD X 2.03 Price: $7.01 |
| 23 |
732-04606 |
Extension Spring, .500 DIA X 12.6 LG Price: $11.15 |
| 24 |
732-04624 |
Extension Spring, 1.00 DIA X 4.75 Price: $8.83 |
| 25 |
732-0716D |
Extension Spring, .59 OD X 4.00 LG Price: $11.49 |
| 26 |
732-0729 |
Wire Ring Price: $4.20 |
| 27 |
732-3118 |
Extension Spring, .375 OD X 1.44 LG Price: $8.78 |
| 28 |
736-0264 |
Flat Washer.330 ID x.630 OD This part replaces 936-0264. Price: $5.99 |
| 29 |
736-04263 |
Washer, Lock, TRANS HYDRO Price: $5.94 |
| 30 |
936-3008 |
Washer, Flat, .344 X .750 X .120 Price: $6.24 |
| 31 |
736-3010 |
Washer, Flat, .407X.812X.135:HT Price: $4.02 |
| 32 |
647-04152D |
BRAKE PEDAL SHAFT ASSEMBLY Not Available Price: |
| 33 |
683-04537A |
DRIVE SHAFT ASSEMBLY Not Available This part replaces 683-04537. Price: |
| 34 |
738-04420 |
SHOULDER SPACER 1.375X.380X.183 Price: $6.01 |
| 35 |
747-04139 |
Rod, Brake, Hydro Price: $21.28 |
| 36 |
747-04957A |
FOOTPEDAL BYPASS ROD Not Available Price: |
| 37 |
747-04979 |
Rod, Control, Hydro Price: $102.74 |
| 38 |
747-04991 |
Rod, Hydro Bypass Price: $8.61 |
| 39 |
750-04456 |
Spacer, .260 X .372 X 1.420 LG Price: $6.20 |
| 40 |
954-04207 |
Belt, V Type, Poly Price: $36.03 |
| 41 |
756-04224 |
Pulley, Idler, Flat 2.75 OD Price: $24.80 |
| 42 |
756-04308 |
Pulley, Input, 4.13 DIA Price: $27.39 |
| 43 |
756-04325 |
Pulley, Idler, V-Type x 3.06 Price: $22.60 |
| 44 |
783-06027B |
DOUBLE IDLER BRACKET Not Available Price: |
| 45 |
783-06133-0637 |
TRANSMISSION MOUNTING BRACKET Not Available Price: |
| 46 |
783-06260-0637 |
BELT GUIDE SUPPORT Not Available Price: |
| 47 |
783-1019B |
SWITCH BRACKET Not Available Price: |
| 48 |
710-0604A |
Taptite Screw, 5/16-18:0.625 Price: $3.96 |
| 49 |
711-05068A |
Clevis Pin, 5/16 x 3.985 Price: $6.64 |
| 50 |
712-04065 |
Flangelock Nut, 3/8-16 Price: $3.68 |
| 51 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 52 |
719-0584B-0637 |
Control Pedal Price: $52.81 |
| 53 |
726-0214 |
Push Cap Price: $9.11 |
| 54 |
732-04587 |
Extension Spring, .63 DIA x 4.95 LG Price: $6.51 |
| 55 |
735-04136 |
Brake Pedal Pad Price: $13.49 |
| 56 |
738-0430 |
Scr, Shldr, .50 x .685 3/8-16 Price: $10.55 |
| 57 |
738-0380 |
Shld. Bolt 3/8-16 x .500" Dia. This part replaces 938-0380. Price: $7.34 |
| 58 |
741-0495 |
NYLINER BEARING Price: $4.02 |
| 59 |
748-04203 |
Cruise Latch Price: $12.39 |
| 60 |
783-05914 |
Pedal Support Bracket Price: $6.23 |
| 61 |
783-05940 |
Pedal Support Bracket, 5/8 Price: $6.17 |
| 62 |
783-06103A-0637 |
FOOT BRAKE PEDAL (POWDER BLACK) Not Available Price: |
| 63 |
731-2290B |
HUB CAP This part replaces 731-2290A. Price: $3.82 |
| 64 |
736-0430 |
Washer, Flat, .350 x 1.59 x .062 Price: $3.90 |
| 65 |
634-0104-0911 |
Wheel Assembly Price: $127.19 |
| 66 |
710-05339A |
SCREW 5/16-24 x .750 GR5 This part replaces 710-05339. Price: $3.70 |
| 67 |
634-04369-0662 |
Rim Assembly, Plastic Bead, 46" Price: $145.10 |
| 68 |
934-0255 |
Tubeless Air Valve Price: $3.83 |
| 69 |
734-1730-0901 |
Tire, 20 x 8 x 8 Price: $92.28 |
| 70 |
941-0490 |
Axle Hub Price: $11.60 |
| 71 |
736-0344 |
FLAT WASHER This part replaces 936-0344. Price: $4.13 |
| 72 |
747-05444A |
BELT KEEPER ROD Not Available Price: |
