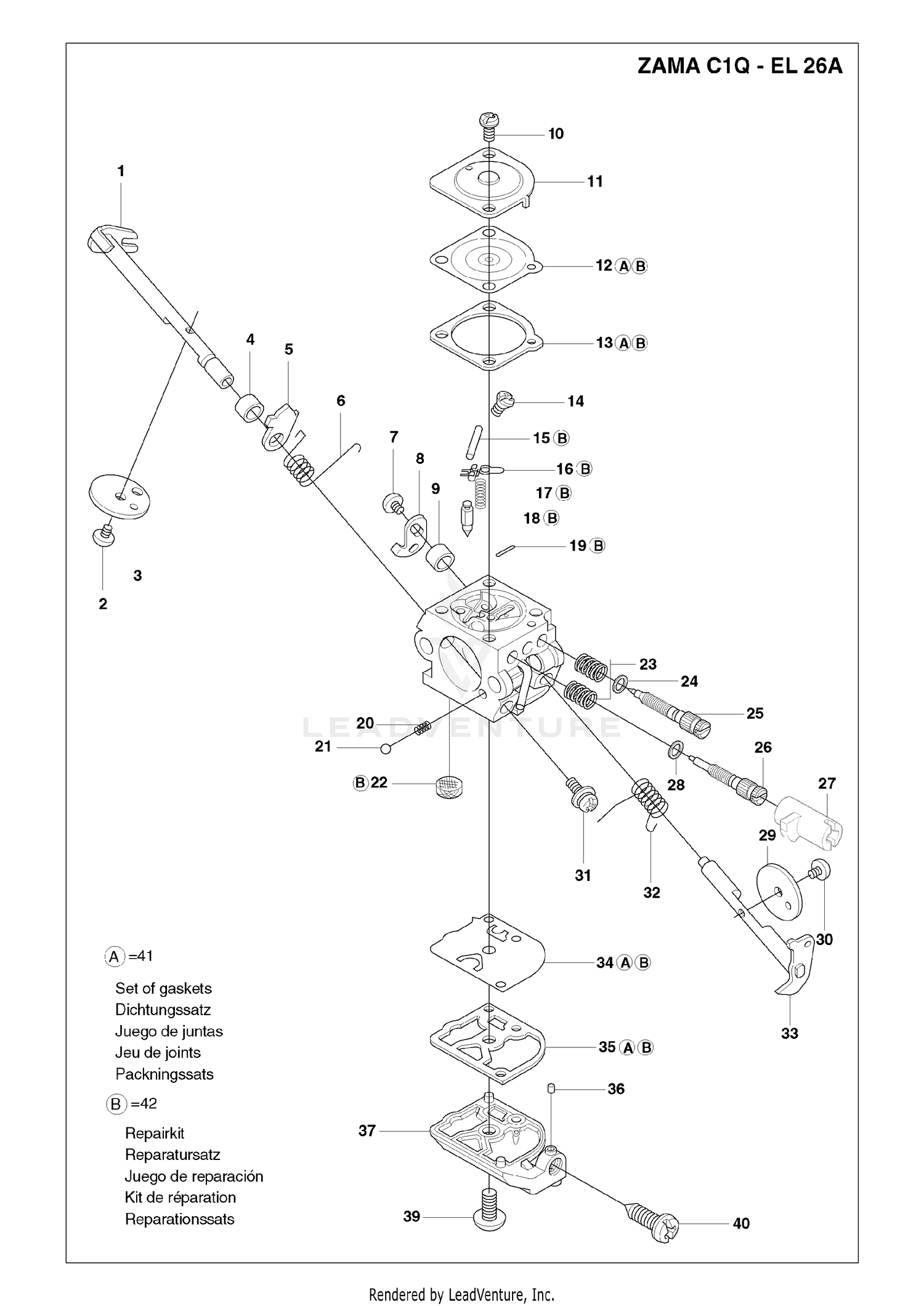

Carburetor
Parts (80)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503283403 | CARBURETOR Price: $69.99 |
| 1 | 74-0720 | TUBE-MANUAL Price: $22.99 |
| 2 | 2412-133 | CLAMP-R Price: $3.19 |
| 2 | 503283403 | CARBURETOR Price: $69.99 |
| 3 | 503481801 | SCREW Price: $2.99 |
| 3 | 77-3780 | PIN ASM-LYNCH Price: $15.06 |
| 4 | 3290-282 | RIVET-BLIND Price: $0.28 |
| 4 | 537370301 | CHOKE CAP This part replaces 537021101. Price: $6.99 |
| 5 | 3256-49 | WASHER-PLAIN Price: $0.33 |
| 5 | 503481901 | BUSHING Price: $5.99 |
| 6 | 537143401 | LEVER Price: $2.99 |
| 6 | 76-9930 | FOAM-CENTER Price: $7.40 |
| 7 | 537021001 | SPRING Price: $2.99 |
| 7 | 82-4900 | FOAM-SEAT, REAR Price: $71.75 |
| 8 | 503479001 | SCREW Price: $2.99 |
| 8 | 76-9440 | ROD-PROP, SEAT Price: $65.18 |
| 9 | 32128-33 | NUT-HF Price: $0.25 |
| 9 | 537019801 | LEVER Price: $3.99 |
| 10 | 43-8870 | BOOT-SWITCH Price: $47.92 |
| 10 | 503478901 | SPACER Price: $3.99 |
| 11 | 218-461 | NUT-HH Price: $2.50 |
| 11 | 503480501 | SCREW Price: $2.99 |
| 12 | 503974301 | COVER Price: $5.99 |
| 12 | 76-9190 | DISCONTINUED Price: Call Us |
| 13 | 43-8860 | PLUNGER-SWITCH Price: $11.85 |
| 13 | 537048901 | DIAPHRAGM Price: $11.99 |
| 14 | 43-8610 | GUIDE Price: $23.35 |
| 14 | 537020401 | GASKET Price: $3.99 |
| 15 | 503480101 | SCREW Price: $2.99 |
| 15 | 72-4320 | SWITCH-BALL Price: $90.18 |
| 16 | 237-30 | O-RING Price: $2.50 |
| 16 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 17 | 43-8600 | SPRING-COMPRESSION Price: $3.03 |
| 17 | 503665901 | LEVER Price: $3.99 |
| 18 | 43-8620 | PIN-GUIDE, SWITCH Price: $88.57 |
| 18 | 537273401 | SPRING This part replaces 537020301. Price: $4.99 |
| 19 | 237-7 | O-RING Price: $8.82 |
| 19 | 503479701 | INLET NEEDLE Price: $8.99 |
| 20 | 237-136 | GROMMET Price: $3.52 |
| 20 | 537020801 | PIN Price: $2.99 |
| 21 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 21 | 537012601 | SPRING Price: $2.99 |
| 22 | 1-806003 | PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 22 | 537012501 | BALL Price: $2.99 |
| 23 | 3-6685 | SPRING Price: $10.99 |
| 23 | 503535701 | STRAINER Price: $3.99 |
| 24 | 3284-3 | PIN-GROOVED Price: $2.24 |
| 24 | 503994301 | SPRING This part replaces 503480801. Price: $2.99 |
| 25 | 503974001 | WASHER Price: $2.99 |
| 25 | 52-5980 | SPACER-PIVOT ARM, REAR Price: $21.44 |
| 26 | 321-4 | SCREW-HH Price: $0.99 |
| 26 | 537127801 | LOW SPEED NEEDLE Price: $14.99 |
| 27 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 27 | 537020601 | NEEDLE HIGH SPEED Price: $3.99 |
| 28 | 537143501 | CAP Price: $0.89 |
| 28 | 63-7590 | RELAY Price: $78.15 |
| 29 | 2412-74 | R-CLAMP Price: $2.37 |
| 29 | 503974001 | WASHER Price: $2.99 |
| 30 | 37-2690 | CAPACITOR Price: $155.98 |
| 30 | 537019901 | THROTTLE FLAP Price: $3.99 |
| 31 | 116749 | HORN This part replaces 48-4590. Price: $130.99 |
| 31 | 503479201 | SCREW Price: $2.99 |
| 32 | 503755301 | SCREW * Price: $2.99 |
| 32 | 74-8910 | DISCONTINUED Price: Call Us |
| 33 | 32144-4 | SCREW-HWH Price: $1.29 |
| 33 | 537019701 | SPRING THROTTLE Price: $2.99 |
| 34 | 537019601 | SHAFT Price: $6.99 |
| 34 | 76-9480 | SLEEVE-PIVOT, SEAT Price: $4.64 |
| 35 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 35 | 537020001 | PUMP DIAPHRAGM Price: $7.99 |
| 36 | 325-9 | SCREW-HH Price: $1.87 |
| 36 | 537020101 | GASKET Price: $3.99 |
| 37 | 503481101 | PLUG Price: $3.99 |
| 37 | 76-9460-03 | DISCONTINUED This part replaces 76-9460. Price: Call Us |
| 38 | 322-2 | SCREW-HH Price: $0.69 |
| 38 | 537020201 | COVER Price: $19.99 |
| 39 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 39 | 503479601 | SCREW Price: $2.99 |
| 40 | 537020701 | SCREW Price: $6.99 |
| 41 | 531004552 | GASKET KIT (ZAMA GND39) Price: $9.99 |
