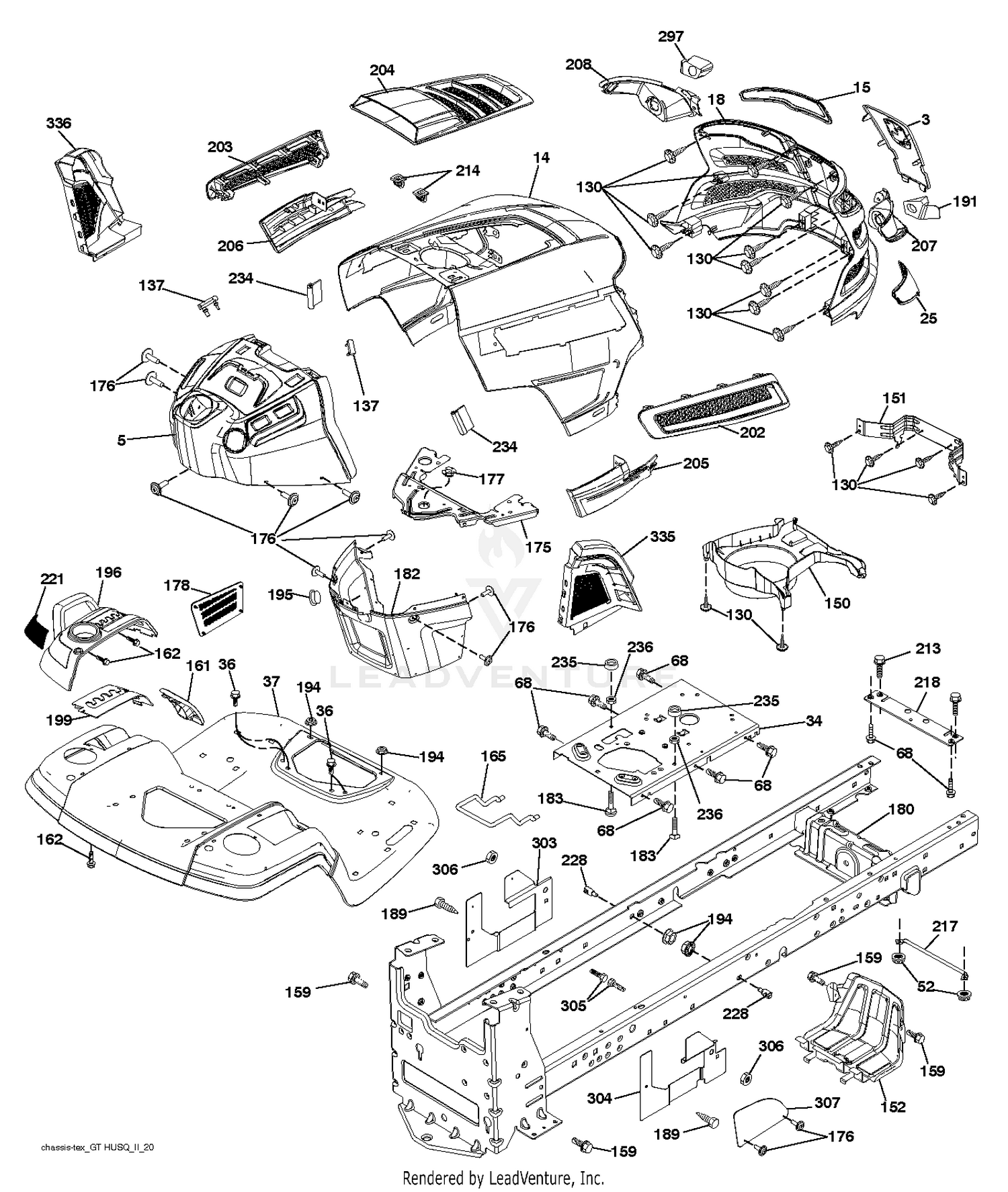

| Ref | Part Number | Description |
|---|
| 1 |
65-9940 |
SPRING Price: $4.01 |
| 2 |
65-9930 |
CAP & PLUNGER ASM Price: $77.47 |
| 3 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 3 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II This part replaces 532439752. Price: $22.99 |
| 4 |
284-3 |
PLUG Price: $7.14 |
| 5 |
532437472 |
DASH.UPP.GT2.SM.PTO.MCHOKE Price: $99.99 |
| 5 |
65-9670 |
SPRING-COMPRESSION Price: $6.77 |
| 6 |
65-9580 |
SPRING Price: $2.76 |
| 7 |
65-9560 |
ADJUSTMENT KNOB ASM Price: $190.35 |
| 8 |
2410-68 |
COVER-PIN Price: $0.38 |
| 9 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 10 |
65-9550 |
CAP Price: $28.33 |
| 11 |
65-9830 |
RAMP-QUICK UP Price: $128.27 |
| 12 |
70-7470 |
MTG BLOCK (MODIFIED) Price: $92.44 |
| 13 |
3290-271 |
RIVET-POP Price: $0.25 |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532441177. Price: $74.99 |
| 14 |
94-6346 |
PLATE - CAUTION This part replaces 65-9950. Price: $12.27 |
| 15 |
532439733 |
LENS.HEADLIGHT.LH.GTII.2011 Price: $11.99 |
| 15 |
65-9810 |
SPRING-ADJUSTMENT Price: $11.26 |
| 16 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 17 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 18 |
597247201 |
Grilles This part replaces 532437762. Price: $84.99 |
| 18 |
65-9860 |
BEARING Price: $7.60 |
| 19 |
65-9820 |
SPACER Price: $2.09 |
| 20 |
65-9330 |
SPACER Price: $2.58 |
| 21 |
251-328 |
BEARING-BALL Price: $14.66 |
| 24 |
65-9350 |
ADAPTER Price: $183.35 |
| 25 |
532443385 |
LENS.HEADLIGHT.RH.GTII.2011 This part replaces 532439732. Price: $11.99 |
| 26 |
3289-19 |
SCREW-FH Price: $1.42 |
| 27 |
3253-12 |
WASHER-LOCK/SP Price: $0.25 |
| 28 |
3274-13 |
SCREW-HSH Price: $3.19 |
| 29 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 30 |
65-9710 |
BELT COVER Price: $166.13 |
| 31 |
65-9890 |
BOLT-CARR.MOD. Price: $66.84 |
| 32 |
65-9340 |
BOLT-SHOULDER Price: $10.02 |
| 33 |
65-9320 |
IDLER Price: $33.55 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532196125. Price: $59.99 |
| 34 |
65-9980 |
SPACER Price: $13.03 |
| 35 |
65-9700 |
BELT-DRIVE Price: $15.96 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 36 |
65-9290 |
PULLEY-DRIVEN Price: $251.33 |
| 37 |
3274-22 |
SCREW-HSH Price: $0.68 |
| 37 |
532441208 |
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ This part replaces 532401825. Price: $219.99 |
| 38 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 39 |
65-9310 |
DISCONTINUED Price: Call Us |
| 40 |
251-327 |
BEARING-BALL Price: $21.22 |
| 41 |
65-9270 |
DISCONTINUED Price: Call Us |
| 42 |
32120-18 |
E-RING Price: $0.97 |
| 43 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 44 |
92-3046 |
SPACER This part replaces 65-9300. Price: $36.62 |
| 45 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 46 |
3274-86 |
SCREW-HSH Price: $1.76 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 150 |
532439774 |
AIR.DUCT.GTV.BLACK Price: $39.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 Price: $14.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 161 |
532401801 |
FUEL WINDOW This part replaces 532401826. Price: $5.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532196826 |
SUPPORT.TANK.REAR.W/TEX Price: $22.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 180 |
531437601 |
CHASSIS WELDMENT This part replaces 532415064. Price: $219.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
532437455 |
INSERT.REFLECTIVE.RH.HUSQ.GTII Price: $14.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 196 |
532400299 |
RP CONSOLE.ASM.DECKLFT.W/ Price: $69.99 |
| 199 |
532198259 |
PLATE.DECK.LIFT.HUSQVARNA.GT Price: $17.99 |
| 204 |
587485801 |
VENT.TOP.ASM.HUSQ.GT2 This part replaces 532435714. Price: $22.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 221 |
532198909 |
REFLECTOR.LH.TEX GT HU Price: $14.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 297 |
532437456 |
INSERT.REFLECTIVE.LH.HUSQ.GTII Price: $14.99 |
| 303 |
583384401 |
SHEILD.CHASSIS.FRENCH.LH This part replaces 532420959. Price: $69.99 |
| 304 |
583388901 |
SHEILD.CHASSIS.FRENCH.RH This part replaces 532421509. Price: $32.99 |
| 305 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 306 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 307 |
583413101 |
SHIELD.UPPER.PEDAL.TEX.FRENCH This part replaces 532424570. Price: $9.99 |
| 335 |
532439847 |
COVER.RH.CLOSE.OUT.BLACK Price: $30.99 |
| 336 |
532439846 |
COVER.LH.CLOSE.OUT Price: $34.99 |
