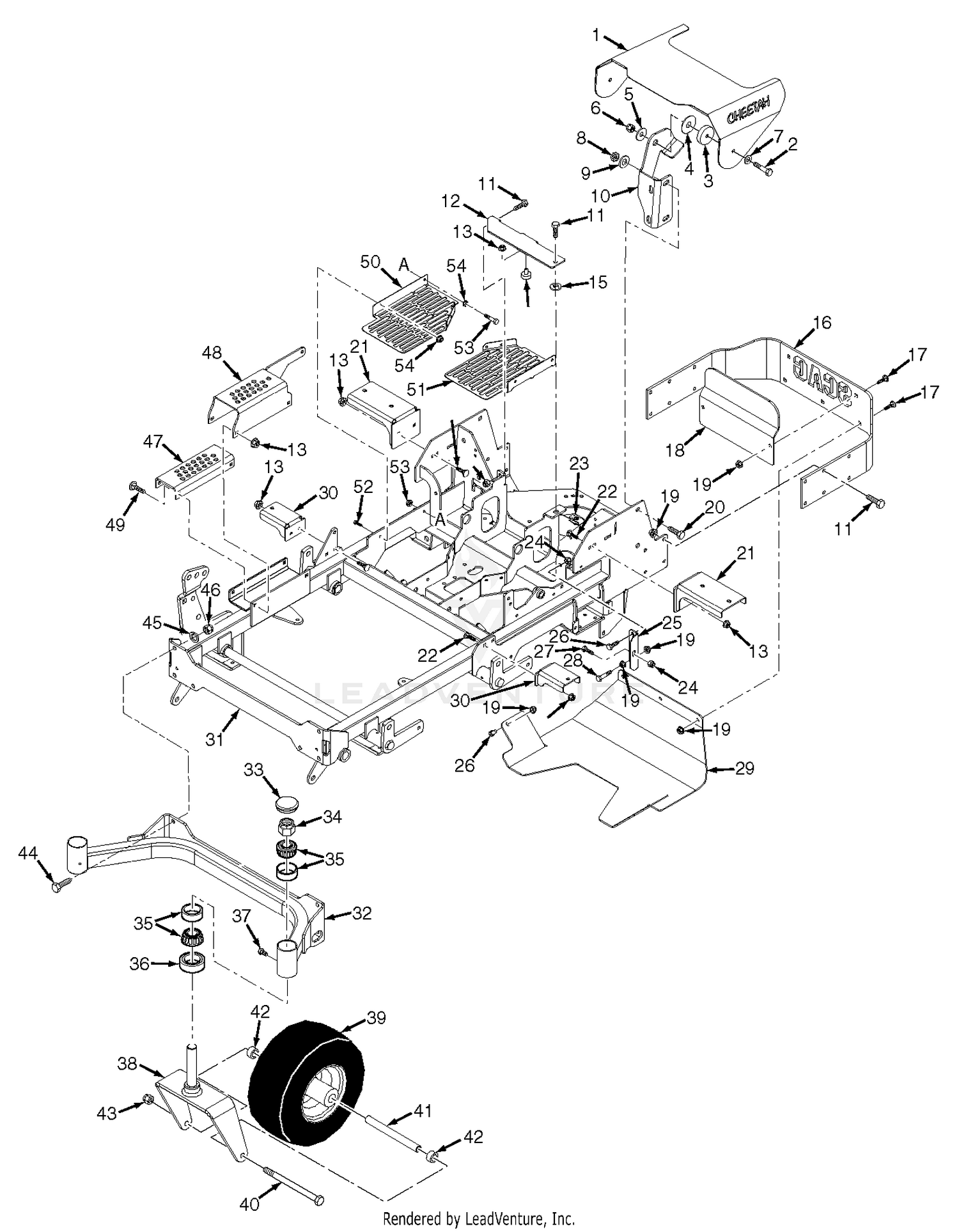

| Ref | Part Number | Description |
|---|
| 1 |
462838 |
Hood Assembly This part replaces 462504. Price: Call Us |
| 2 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" Price: Call Us |
| 3 |
43740 |
Spacer, Hood Price: Call Us |
| 4 |
483471 |
Disk, Anti-Friction Price: Call Us |
| 5 |
04041-11 |
Flatwasher, 3/8-.406 x 1.50 x 7 Ga. Price: Call Us |
| 6 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 7 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 8 |
04021-09 |
Nut, Center Lock 1/2-13 Price: Call Us |
| 9 |
04040-13 |
Flatwasher, 1/2-.562 x 1.375 x .109 Price: Call Us |
| 10 |
425961 |
ROPS Mount, LH Price: Call Us |
| 10 |
425962 |
ROPS Mount, RH Price: Call Us |
| 11 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 12 |
425422 |
Cover, Battery Box Price: Call Us |
| 13 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 14 |
481581 |
Bumper, Rubber Price: Call Us |
| 15 |
04024-02 |
Nut, Push-On 3/8 Thread Price: Call Us |
| 16 |
425725 |
Bumper, Rear Price: Call Us |
| 17 |
04003-23 |
Bolt, Carriage 3/8-16 x 1" Price: Call Us |
| 18 |
425926 |
Guard, Engine Price: Call Us |
| 19 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 20 |
04001-70 |
Bolt, Hex Head 1/2-13 x 1-1/4" Price: Call Us |
| 21 |
425350 |
Mounting Bracket, Fuel Tank Rear Price: Call Us |
| 22 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 23 |
04110-03 |
U-Nut, 3/8-16 Price: Call Us |
| 24 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 25 |
425907 |
Anchor Bracket, Pum Spring Price: Call Us |
| 26 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 27 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 28 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Price: Call Us |
| 29 |
425724 |
Plate, Skid Price: Call Us |
| 30 |
425862 |
Mounting Bracket, Fuel Tank Front Price: Call Us |
| 31 |
462562 |
Mainframe Assembly, w/Decals Price: Call Us |
| 32 |
452284 |
Caster Weldment Price: Call Us |
| 33 |
484195 |
Cap, Grease Price: Call Us |
| 34 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 35 |
481657 |
Bearing w/Race Price: Call Us |
| 36 |
481025 |
Seal, 2" O.D. x 1.625 Bore Price: Call Us |
| 37 |
482028-01 |
Plug, 1/4-28 Price: Call Us |
| 38 |
451658 |
Yoke Weldment Price: Call Us |
| 39 |
48114-10 |
Grease Fitting Price: Call Us |
| 39 |
482621 |
Bearing Price: Call Us |
| 39 |
9278 |
Caster Wheel Assembly Price: Call Us |
| 40 |
04001-167 |
Bolt, Hex Head 1/2-13 x 9-1/2" Price: Call Us |
| 41 |
43583 |
Sleeve, Caster Wheel Price: Call Us |
| 42 |
43584 |
Spacer, Caster Wheel Price: Call Us |
| 43 |
04021-07 |
Nut, Elastic Stop 1/2-13 Price: Call Us |
| 44 |
04001-28 |
Bolt, Hex Head 7/16-14 x 1-1/4" Price: Call Us |
| 45 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 46 |
04021-11 |
Nut, Elastic Stop 7/16-14 Price: Call Us |
| 47 |
452408 |
Adjustment Bracket, Lower Cut Height Price: Call Us |
| 48 |
425737 |
Adjustment Bracket, Cutting Height Price: Call Us |
| 49 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 49 |
04030-03 |
Lockwasher, 5/16" Spring Price: Call Us |
| 50 |
425747 |
Fan Cover, RH Price: Call Us |
| 51 |
425746 |
Fan Cover, LH Price: Call Us |
| 52 |
04001-01 |
Bolt, Hex Head 1/4-20 x 3/4" Price: Call Us |
| 53 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
