| Ref | Part Number | Description |
|---|
| 1 |
3219-2 |
NUT-HEX Price: $0.37 |
| 2 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 11 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 12 |
21-7830 |
COVER-GEAR Price: $26.87 |
| 13 |
12-5450 |
SCREW Price: $7.99 |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 19 |
3210-7 |
SCREW-HH Price: $0.61 |
| 20 |
71-4350 |
NUT Price: $3.46 |
| 21 |
71-4340 |
WASHER Price: $15.47 |
| 22 |
68-7010 |
FLANGE Price: $306.32 |
| 23 |
71-4330 |
SEAL Price: $36.26 |
| 24 |
72-3572 |
SHIM-BEARING, FRONT (.098) This part replaces 72-3570. Price: $23.68 |
| 24 |
72-3573 |
SHIM-BEARING, FRONT (.100) Price: $24.63 |
| 25 |
254-91 |
CONE-BEARING Price: $18.65 |
| 26 |
254-90 |
BEARING-CUP Price: $11.29 |
| 27 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 28 |
86-9610 |
UPPER HOUSING SUB ASM Price: $1,155.01 |
| 29 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 30 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 32 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 33 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 34 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 35 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 36 |
43-6840 |
HOUSING-LOWER Price: $1,467.48 |
| 37 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 38 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 39 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 40 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 41 |
72-9420 |
VENT Price: $6.85 |
| 42 |
3217-9 |
NUT-HH Price: $0.37 |
| 43 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 44 |
24-9830-01 |
AXLE SUPPORT ASM This part replaces 24-9830. Price: $83.43 |
| 45 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 46 |
323-6 |
SCREW-HH Price: $0.66 |

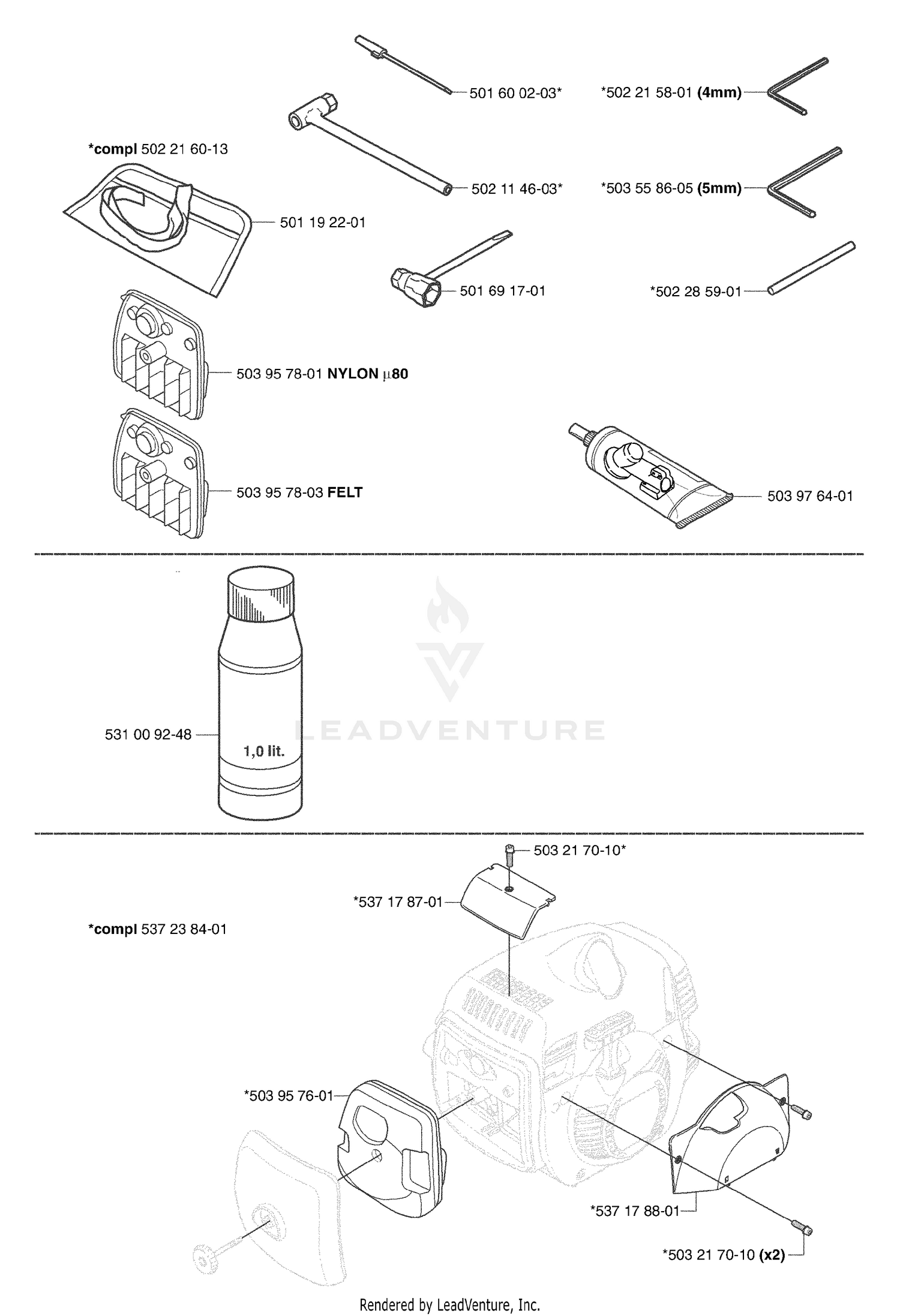

| 501192201 |
501192201 |
TOOL BAG Price: $14.99 |
| 501600203 |
501600203 |
SCREWDRIVER Price: $2.99 |
| 501691701 |
531222001 |
COMBINATION WRENCH COMBI TOOL This part replaces 501691701. Price: $5.99 |
| 502114603 |
502114603 |
SCRENCH Price: $6.99 |
| 502215801 |
502215801 |
L-KEY WRENCH Price: $2.99 |
| 502216013 |
502216020 |
ACCESSORY BAG This part replaces 502216013. Price: $69.99 |
| 502285901 |
502285901 |
LOCKING PIN Price: $4.99 |
| 503217010 |
503217010 |
SCREW Price: $3.99 |
| 503558605 |
503558605 |
KEY Price: $2.99 |
| 503957601 |
537381101 |
AIR FILTER This part replaces 503957601. Price: $24.99 |
| 503957801 |
537381101 |
AIR FILTER This part replaces 503957801. Price: $24.99 |
| 503957803 |
503957803 |
Air Filter Price: $12.27 |
| 503976401 |
503976401 |
Bevel Gear Grease Price: $14.99 |
| 531009248 |
596287501 |
HUS AIR FILTER OIL 1L / 33.8OZ This part replaces 531009248. Price: $34.99 |
| 537178701 |
537178701 |
PROTECTOR Price: $21.99 |
| 537178801 |
537178801 |
PROTECTOR Price: $20.31 |
