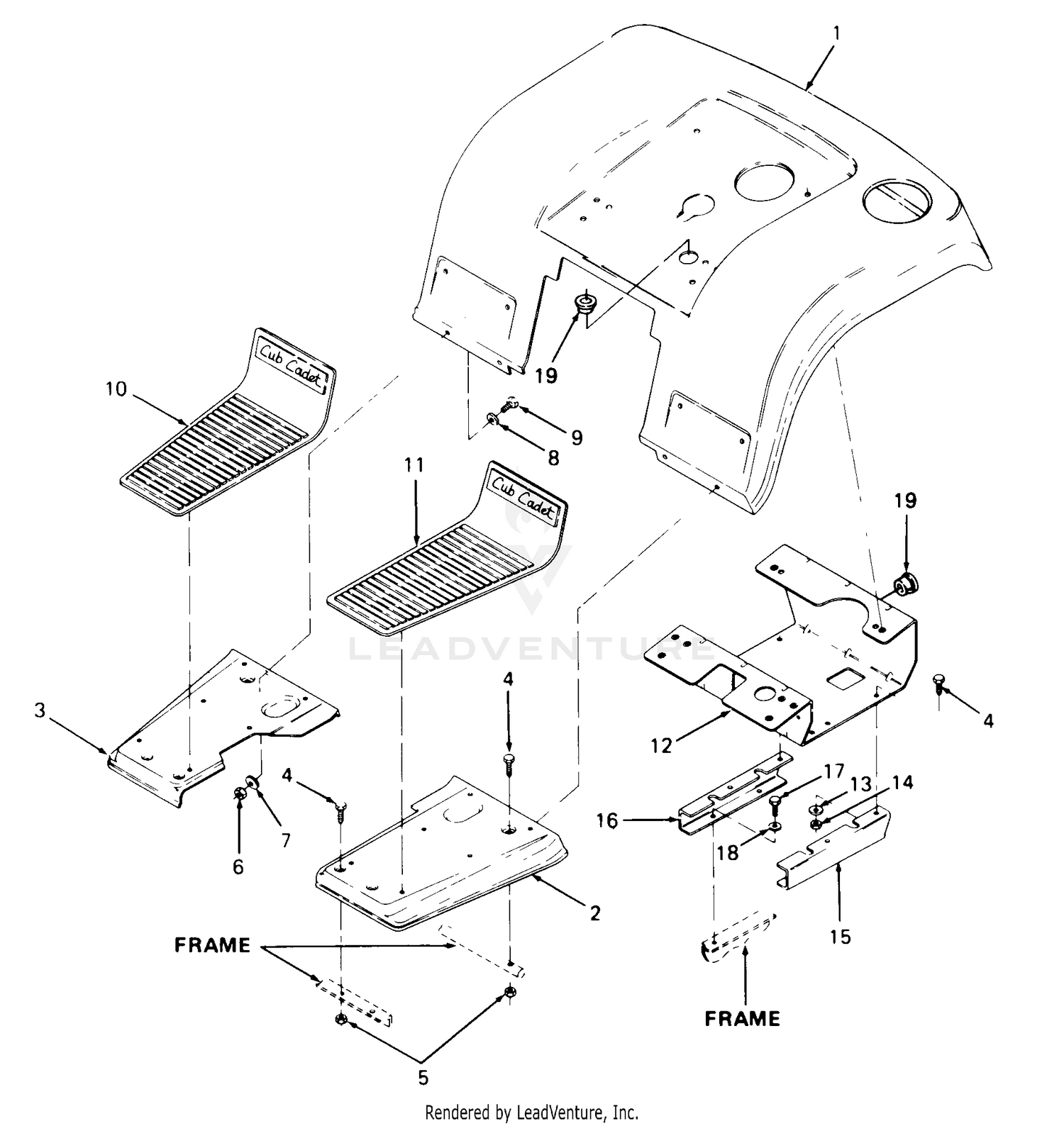

| Ref | Part Number | Description |
|---|
| 1 |
703-2141-0498 |
FENDER Not Available This part replaces 703-2141. Price: |
| 2 |
703-1797 |
RUNNING BOARD - LH Not Available Price: |
| 3 |
703-2158 |
RUNNING BOARD - RH Not Available Price: |
| 4 |
710-3025 |
Screw, Hex Cap, 5/16-18 X .62 Lg GR5 Price: $3.64 |
| 5 |
712-3009 |
Nut, Hex Center Lock, 5/16-18 GR5 Price: $5.99 |
| 6 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 7 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 8 |
736-0173 |
Washer, Flat, .281 X .73 X .063 Thk Price: $3.76 |
| 9 |
710-3013 |
Screw, Hex, Cap, 1/4-20 X .50 Lg GR5 Price: $4.02 |
| 10 |
735-3030 |
FOOT PAD (RH) Not Available Price: |
| 11 |
735-3031 |
FOOT PAD (LH) Not Available Price: |
| 12 |
703-1887 |
SUPPORT ASSEMBLY, SEAT Not Available Price: |
| 13 |
736-0242 |
Washer, Bell, .345 X .88 X .060 Thk Price: $3.75 |
| 14 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 15 |
703-1815 |
SUPPORT BRACKET-FENDER (LH) Not Available Price: |
| 16 |
703-1814 |
SUPPORT BRACKET-FENDER (RH) Not Available Price: |
| 17 |
710-3025 |
Screw, Hex Cap, 5/16-18 X .62 Lg GR5 Price: $3.64 |
| 18 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
