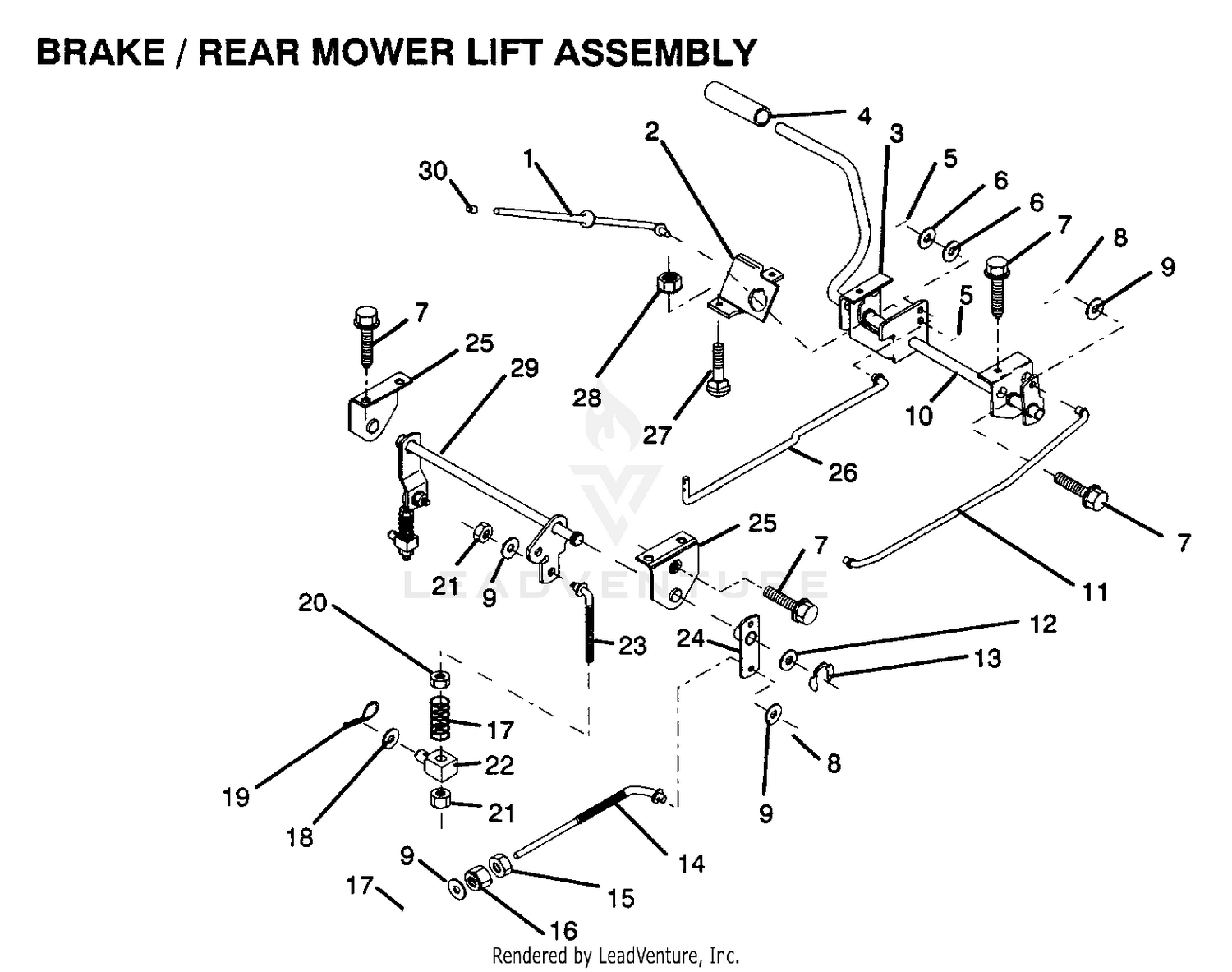

BRAKE AND REAR MOWER LIFT
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 8883R | PEDAL COVER T Price: Call Us |
| 5 | 76020312 | SUB= 3145 Price: Call Us |
| 6 | 19131016 | WASHER Price: Call Us |
| 7 | 17490508 | SCREW LT Price: Call Us |
| 8 | 76020412 | COTTER PIN Price: Call Us |
| 9 | 19131316 | WASHER Price: Call Us |
| 10 | 100-9285 | MANIFOLD-EXHAUST Price: $261.42 |
| 10 | 124145X | SUB= 139933 Price: Call Us |
| 12 | 19251816 | WASHER T Price: Call Us |
| 13 | 12000034 | KLIP RING Price: Call Us |
| 14 | 126759X | SUB= 131461 Price: Call Us |
| 15 | 73350600 | NUT Price: Call Us |
| 16 | 73800600 | NUT Price: Call Us |
| 17 | 106888X | SPRING ROD LT Price: Call Us |
| 18 | 19132012 | WASHER Price: Call Us |
| 19 | 4921H | SPRING.RETAINER Price: Call Us |
| 20 | 73930600 | LOCKNUT Price: Call Us |
| 20 | 98-7802 | GASKET Price: $19.63 |
| 21 | 73680600 | SUB= 73690600 Price: Call Us |
| 22 | 106204X | SUB= 132793 Price: Call Us |
| 24 | 123641X | BRAKE PIVOT ARM Price: Call Us |
| 25 | 98-7803 | GASKET Price: $11.76 |
| 27 | 72110506 | SUB= 72270506 Price: Call Us |
| 28 | 73510500 | NUT Price: Call Us |
| 29 | 123547X | REAR MOWER LIFT Price: Call Us |
| 30 | 100-1558 | STUD Price: $2.26 |
| 40 | 100-9288 | NUT Price: $2.47 |
