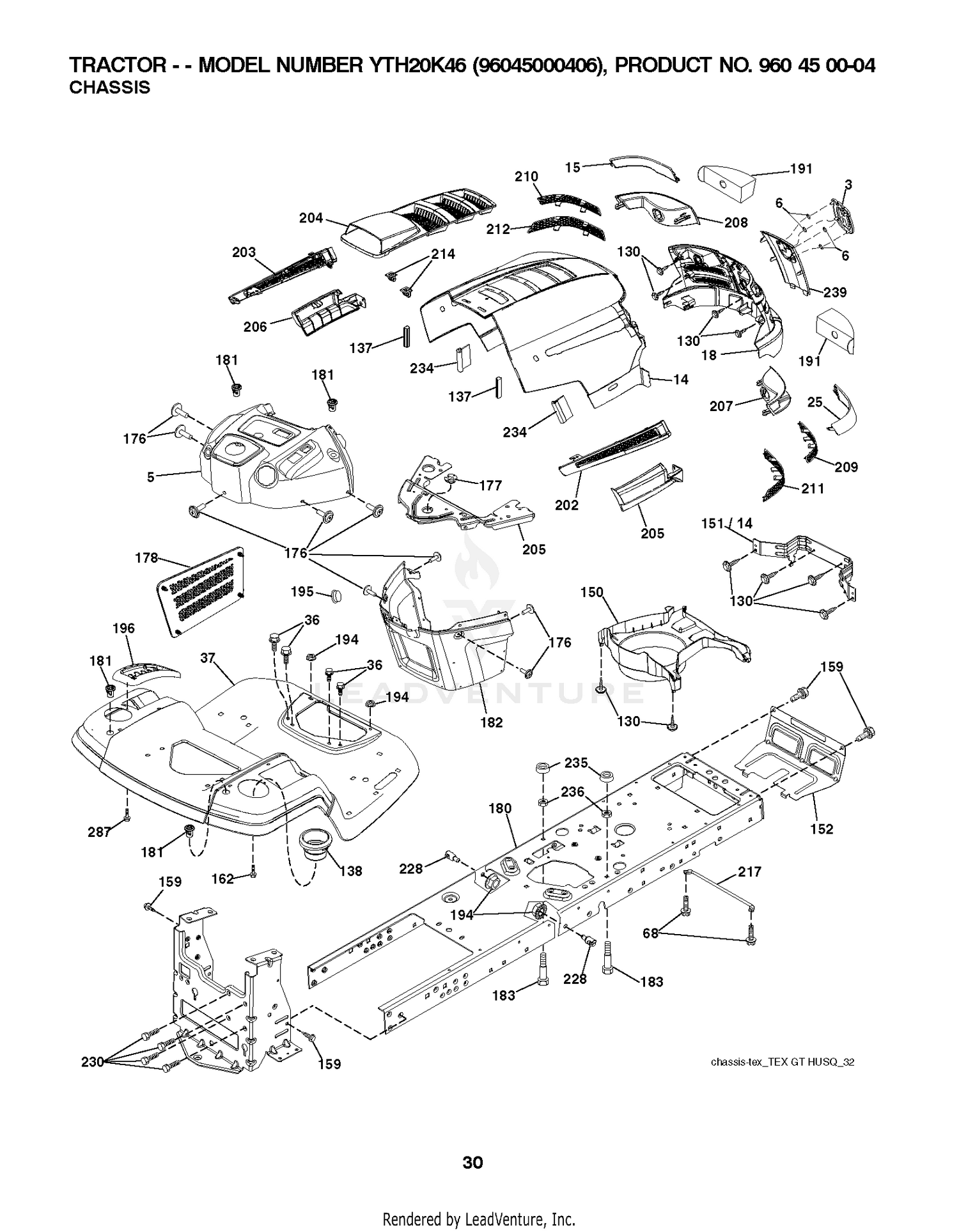

| Ref | Part Number | Description |
|---|
| 1 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 2 |
532194263 |
DRAWBAR.1PC.NSTL Price: $54.99 |
| 2 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 3 |
120-8095 |
PEDAL Price: Call Us |
| 3 |
532430771 |
LOGO.HUSQ.GT.LT.CROWN.H This part replaces 532405012. Price: $5.99 |
| 4 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 5 |
532408703 |
DASH Price: $54.99 |
| 5 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 6 |
117-9507 |
PEDAL-ACCELERATOR Price: $12.86 |
| 7 |
323-29 |
SCREW-HH Price: $0.42 |
| 8 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 9 |
3220-3 |
NUT-HJ Price: $0.28 |
| 10 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 11 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 12 |
322-2 |
SCREW-HH Price: $0.69 |
| 13 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 14 |
32128-20 |
NUT-HF Price: $0.99 |
| 14 |
532442396 |
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN This part replaces 532411046. Price: $149.99 |
| 15 |
532198907 |
LENS.LH.TEX.GT.HUSQ.CL Price: $22.99 |
| 16 |
114-5608 |
SPACER-STANDOFF Price: $15.74 |
| 18 |
120-8088-0P |
HUB-TRACTION PEDAL PIVOT This part replaces 120-8088-03. Price: $69.27 |
| 19 |
115-4383 |
SHAFT-SPRING Price: $38.84 |
| 21 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 22 |
92-7608-03 |
BRACKET-SPRING Price: $16.86 |
| 23 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 24 |
84-9100 |
SPRING Price: $11.99 |
| 25 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 25 |
532198906 |
LENS.RH.TEX.GT.HUSQ.CL Price: $32.99 |
| 32 |
117-2718 |
DECAL-ARRESTER, SPARK Price: $5.95 |
| 33 |
120-8038 |
HUB ASM Price: $121.12 |
| 36 |
114-5609 |
SENSOR-POSITION Price: $371.51 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
114-5595 |
PLATE-CAPTURE Price: $5.99 |
| 37 |
597652401 |
SERVICE KIT FENDER.TLT.CPH.615 This part replaces 532418714. Price: $219.99 |
| 38 |
32105-21 |
SCREW-HH Price: $1.09 |
| 40 |
120-8091 |
SHAFT-PIVOT, TRACTION Price: $33.82 |
| 41 |
32121-69 |
PIN-SPRING Price: $1.79 |
| 43 |
120-8089 |
PLATE-COVER, SENSOR Price: $3.38 |
| 44 |
121-3099 |
PLUG-PANEL, PLASTIC Price: $1.87 |
| 45 |
32121-78 |
PIN-ROLL Price: $3.09 |
| 46 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 138 |
532439747 |
HOLDER.CUP.LT.GREY This part replaces 532402954. Price: $4.99 |
| 150 |
532198513 |
AIR.DUCT.TEXGT.HUSQ.SV Price: $37.99 |
| 151 |
532442396 |
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN This part replaces 532411046. Price: $149.99 |
| 152 |
532194329 |
SHIELD.BROWNING/DEBRIS Price: $17.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 180 |
582033101 |
KITS.TEX.BOLTED.CHASSIS.445559 This part replaces 532194260. Price: $229.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. Price: $4.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 196 |
547634701 |
CONSOLE.DECKLIFT.GREY.PKG.KIT This part replaces 532414580. Price: $17.99 |
| 202 |
532403048 |
VENT.SIDE.HOOD.HUSQ.RH.GREY Price: $7.99 |
| 203 |
532403076 |
VENT.SIDE.HOOD.HUSQ.LH.GRAY Price: $7.99 |
| 204 |
532416615 |
VENT.ASM.TORPHD.HUSQGT.LOGO.CL This part replaces 532416613. Price: $16.99 |
| 205 |
532401709 |
SKIRT.HOOD.SIDE.HUSQ.RH.GREY Price: $6.99 |
| 206 |
532401711 |
SKIRT.HOOD.SIDE.HUSQ.LH.GREY Price: $5.99 |
| 207 |
532197198 |
BEZEL.RH.TEX.GT.HUSQ Price: $19.99 |
| 208 |
532197199 |
BEZEL.LH.TEX.GT.HUSQ Price: $17.99 |
| 209 |
532199130 |
INSERT.HEX.GRILL.HUSQ.GREY Price: $4.99 |
| 210 |
532199131 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 211 |
532199132 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 212 |
532199133 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 230 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 238 |
532408606 |
TRIM.HUSQ.TG/CRD.SERVICE Price: $17.99 |
| 239 |
532110452 |
NUT PUSH M Price: $2.99 |
| 287 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
