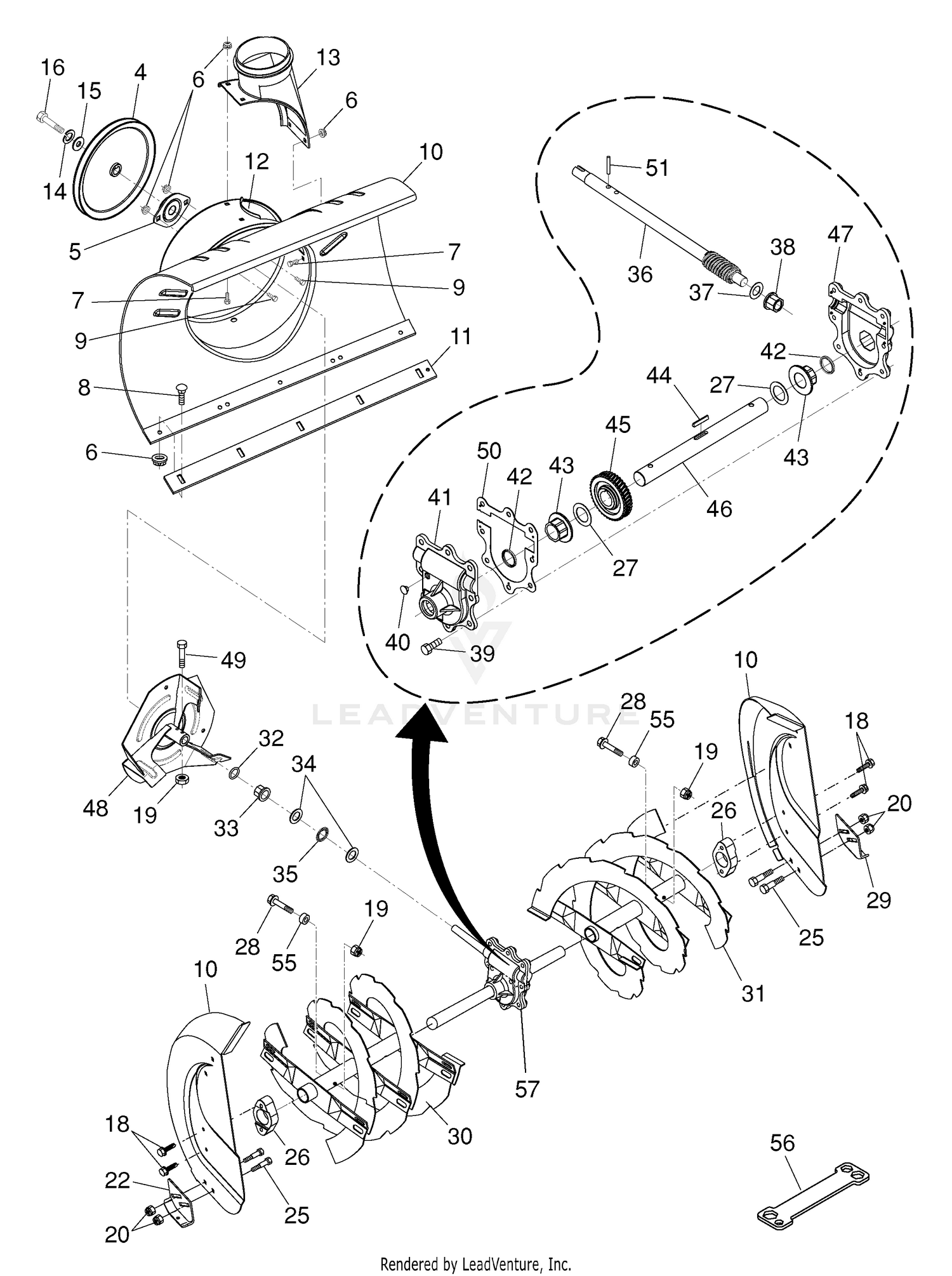

| Ref | Part Number | Description |
|---|
| 1 |
93-7488 |
DISCONTINUED This part replaces 92-8785. Price: Call Us |
| 2 |
68-6150 |
BREATHER Price: $27.22 |
| 3 |
61-2790 |
FILTER-SCREEN Price: $49.91 |
| 4 |
532427071 |
PULLEY.IMPELLER.SNOW This part replaces 532191079. Price: $27.99 |
| 4 |
75-3710 |
DIPSTICK Price: $57.35 |
| 5 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 6 |
321-2 |
SCREW-HH Price: $2.79 |
| 6 |
596039201 |
GSPW Hardware This part replaces 532198541. Price: $2.99 |
| 7 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 7 |
75-0540 |
TETHER AND BUTTON KIT Price: $6.89 |
| 8 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 8 |
93-7160 |
CAP-OIL, HYD This part replaces 92-6342. Price: $42.72 |
| 9 |
532199879 |
BOLT.HEX Price: $6.99 |
| 9 |
75-6130 |
HOSE ASM Price: $158.19 |
| 10 |
237-65 |
O-RING Price: $2.50 |
| 10 |
581708369 |
KIT.AUGER.HOUSING.404930X668 This part replaces 532407644. Price: $279.99 |
| 11 |
340-8 |
FITTING-STRAIGHT Price: $9.70 |
| 11 |
532435830 |
BAR.SCRAPER.30.BLACK This part replaces 532407695. Price: $17.99 |
| 12 |
237-81 |
O-RING Price: $2.76 |
| 12 |
597433002 |
Brackets This part replaces 532184095. Price: $3.99 |
| 13 |
321-24 |
SCREW-HH This part replaces 321-23. Price: $2.31 |
| 13 |
585056901 |
CHUTE.DISCHARGE.BASE This part replaces 532175322. Price: $9.99 |
| 14 |
819111507 |
WASHER, FLAT Price: $4.99 |
| 14 |
92-9098 |
MANIFOLD-TANK Price: $297.10 |
| 15 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 15 |
532198552 |
WASHER, LOCK 5/16 Price: $6.99 |
| 16 |
354-74 |
PLUG-HH Price: $17.90 |
| 16 |
874950512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $3.99 |
| 17 |
75-6250 |
HOSE Price: $175.77 |
| 18 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 18 |
532179582 |
SCREW, HEX HD 5/16X1 Price: $3.99 |
| 19 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 19 |
75-5720 |
HOSE-RETURN Price: $39.38 |
| 20 |
353-682 |
FITTING-HOSE Price: $83.03 |
| 20 |
596039201 |
GSPW Hardware This part replaces 532198541. Price: $2.99 |
| 21 |
93-0119 |
HOSE ASM Price: $65.80 |
| 22 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 22 |
532436125 |
PLATE.SKID.ADJ.RH.BLACK This part replaces 532184094. Price: $6.99 |
| 23 |
237-22 |
O-RING Price: $2.43 |
| 24 |
354-73 |
FITTING Price: $27.56 |
| 25 |
237-42 |
O-RING Price: $2.78 |
| 25 |
532198648 |
BOLT, HEX HEAD Price: $3.99 |
| 26 |
532420478 |
BEARING.AUGER.SHAFT This part replaces 532174658. Price: $7.99 |
| 27 |
340-87 |
FITTING-ELBOW, 45 DEG Price: $18.39 |
| 28 |
588077502 |
BOLT SHEAR HX HD 1/4-20 CLEAR This part replaces 532198636. Price: $1.00 |
| 28 |
75-6870 |
HOSE-INLET, PUMP Price: $50.00 |
| 29 |
532174762 |
PLATE.SKID.ADJUSTABLE.LH.BLACK This part replaces 532184093. Price: $7.99 |
| 29 |
75-0550 |
DISCONTINUED Price: Call Us |
| 30 |
547572001 |
AUGER KIT 30" RH 420498X498 This part replaces 532407647. Price: $149.99 |
| 30 |
75-6140 |
HOSE Price: $85.40 |
| 31 |
547571901 |
AUGER KIT 30" LH 420497X498 This part replaces 532407646. Price: $149.99 |
| 31 |
75-1300 |
OIL FILTER ASM Price: $427.40 |
| 32 |
2412-93 |
CLAMP-R Price: $1.02 |
| 32 |
532407768 |
O-RING Price: $3.99 |
| 33 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 33 |
532407769 |
BUSHING, FLANGE 3/4 Price: $7.99 |
| 34 |
532174681 |
WASHER, THRUST 3/4 Price: $11.99 |
| 34 |
75-1310 |
FILTER-HYD Price: $58.35 |
| 35 |
340-139 |
FITTING-ELBOW 90 Price: $117.76 |
| 35 |
532174684 |
BEARING TRUST 3/4 NTA-1220 Price: $6.99 |
| 36 |
323-5 |
SCREW-HH Price: $0.41 |
| 36 |
532407757 |
SHAFT, IMPELLER Price: $89.99 |
| 37 |
532174683 |
WASHER, THRUST 5/8 Price: $6.99 |
| 37 |
63-8410 |
WASHER Price: $1.76 |
| 38 |
532174686 |
BUSHING.FLANGE.(.625X.75) This part replaces 532407758. Price: $22.99 |
| 39 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 39 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532407767. Price: $4.99 |
| 40 |
532086447 |
PLUG.AUGER.GEAR.BOX.SNOW This part replaces 532407760. Price: $3.99 |
| 41 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 41 |
532174688 |
HOUSING.GEARBOX.RH.SNOW This part replaces 532407761. Price: $22.99 |
| 42 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 42 |
532174698 |
SEAL, OIL This part replaces 532407770. Price: $4.99 |
| 43 |
323-4 |
SCREW-HH Price: $1.02 |
| 43 |
532174701 |
BUSHING FLANGE 1" This part replaces 532407762. Price: $29.99 |
| 44 |
353-550 |
PLUG-HYD, HH Price: $10.71 |
| 44 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 45 |
237-79 |
O-RING Price: $5.46 |
| 45 |
598831601 |
Service Kit This part replaces 532407763. Price: $199.99 |
| 46 |
532174657 |
SHAFT, AUGER This part replaces 532407764. Price: $59.99 |
| 46 |
92-9096 |
HOSE Price: $63.34 |
| 47 |
340-82 |
FITTING-ELBOW, 90 DEG Price: $20.57 |
| 47 |
532407765 |
HOUSING.GEARBOX.LH(SERVICE) Price: $22.99 |
| 48 |
531167901 |
SERVICE KIT IMPELLER WELDMENT This part replaces 532184105. Price: $44.99 |
| 49 |
596322101 |
BOLT HEXAGON BOLT 1/4-20 X 1-5 This part replaces 874780426. Price: $2.99 |
| 50 |
532175311 |
GASKET.AUGER.GEARBOX This part replaces 532407766. Price: $7.99 |
| 55 |
532198638 |
SPACER.3943.SLEEVE.250X.47 Price: $5.99 |
| 56 |
532429112 |
WRENCH.SNOWTHROWER.ZINC.YZ This part replaces 532180684. Price: $3.99 |
