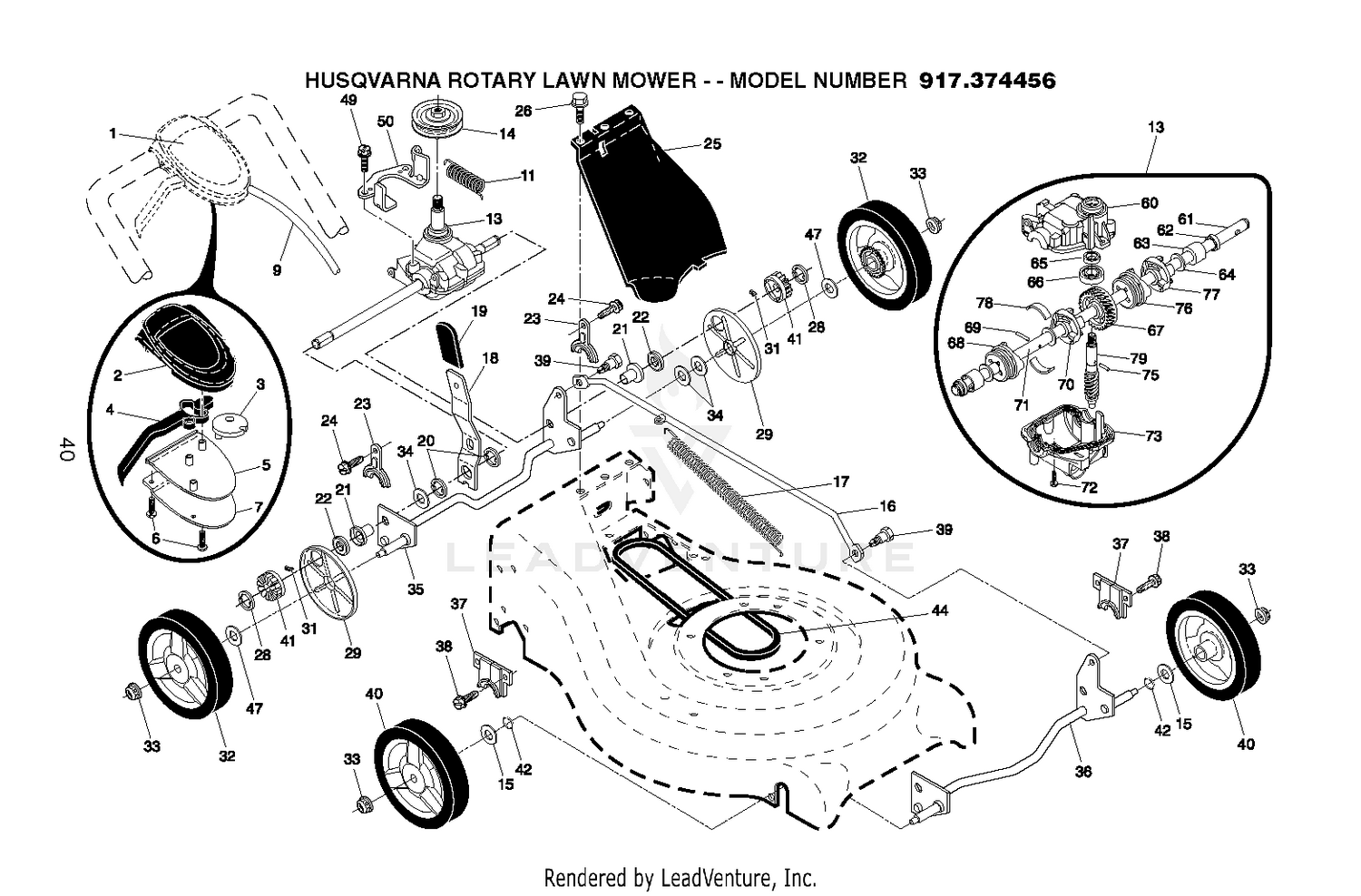

| Ref | Part Number | Description |
|---|
| 1 |
532425581 |
CONTROL.DR.AW.21RGD.GRY/BLACK This part replaces 532407344. Price: $64.99 |
| 2 |
532406260 |
COVER TOP AUTO WALK CONTROL Price: $12.99 |
| 3 |
532406262 |
PULLEY.CAM.DRIVE.CONTROL.EZ Price: $7.99 |
| 4 |
532425583 |
LEVER.SHORT.BLACK.EZ.WALK This part replaces 532190039. Price: $14.99 |
| 5 |
532406261 |
COVER BOTTOM AUTO WLK CONTROL Price: $12.99 |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL This part replaces 532400235. Price: $4.99 |
| 9 |
532406258 |
CABLE.ASSY.RGD.EZ.AUTO Price: $34.99 |
| 11 |
532406558 |
SPRING Price: $6.99 |
| 13 |
532404839 |
TRANSMISSION.21.RWGD.AUTO.SP Price: $84.99 |
| 14 |
532193443 |
PULLEY.1.PIECE Price: $13.99 |
| 15 |
532088348 |
WASHER.FLAT.1/2 This part replaces 532088343. Price: $3.99 |
| 16 |
532407147 |
ROD.CONNECTING.SPT.BLACK Price: $22.99 |
| 17 |
532409616 |
SPRING EXTENSION Price: $5.99 |
| 18 |
532418835 |
SPRING.SELECTOR.SPT.21.BZP Price: $5.99 |
| 19 |
532189808 |
KNOB.S/P.RWGD.EXT.ERGO.GREY Price: $2.99 |
| 20 |
812000022 |
E-RING Price: $3.99 |
| 21 |
532404838 |
BEARING.ASM.RGD.AUTO.SP Price: $14.99 |
| 22 |
587070202 |
BEARING.SUPPORT.ASM This part replaces 532191039. Price: $12.99 |
| 23 |
532161118 |
RETAINER DRIVE ASM. STMP. Price: $3.99 |
| 24 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 25 |
532400783 |
COVER.DRIVE.21.RWGD.MO Price: $9.99 |
| 26 |
532750634 |
SCREW Price: $2.99 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 31 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 32 |
581685101 |
WHEEL.8X1.75.3SPK.RAD3.GREY This part replaces 532405746. Price: $24.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 34 |
532851226 |
WASHER Price: $3.99 |
| 35 |
532403102 |
SHAFT.ASM.REAR.TORQUE.BZP.8 Price: $29.99 |
| 36 |
532407175 |
SHAFT.ASM.FRONT.TORQUE.BZP. Price: $22.99 |
| 37 |
532161463 |
RETAINER.FRONT.SHAFT Price: $9.99 |
| 38 |
532163409 |
SCREW Price: $3.99 |
| 39 |
532407059 |
SHOULDER BOLT SEMI GIMLET PT. Price: $3.99 |
| 40 |
532401273 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 Price: $29.99 |
| 41 |
532404835 |
PINIION.14.TOOTH.RGD Price: $5.99 |
| 42 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 44 |
532406580 |
BELT.RGD.VS Price: $19.99 |
| 47 |
532067725 |
WASHER FLUT Price: $5.99 |
| 49 |
532163409 |
SCREW Price: $3.99 |
| 50 |
532404832 |
BRACKET.BELT.GUIDE.VS.RGD.BZP Price: $3.99 |
| 60 |
532412736 |
CASE UPPER Price: $17.99 |
| 61 |
532412757 |
SHAFT OUTPUT LONG Price: $24.99 |
| 62 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 63 |
532183511 |
BUSHING Price: $4.99 |
| 64 |
532183509 |
WASHER Price: $3.99 |
| 65 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
| 66 |
532183506 |
BEARING Price: $5.99 |
| 67 |
532412742 |
GEAR 28 TEETH Price: $6.99 |
| 69 |
532412741 |
PIN 7 33732 Price: $7.99 |
| 71 |
532412756 |
SHAFT OUTPUT SHORT (12294) Price: $19.99 |
| 72 |
532183513 |
SCREW Price: $3.99 |
| 73 |
532412747 |
CASE, LOWER Price: $17.99 |
| 75 |
532412746 |
PIN 3.50.337 - 33733 Price: $7.99 |
| 78 |
532410731 |
SPRING LEAF Price: $2.99 |
| 79 |
532412737 |
SHAFT WORM Price: $14.99 |
