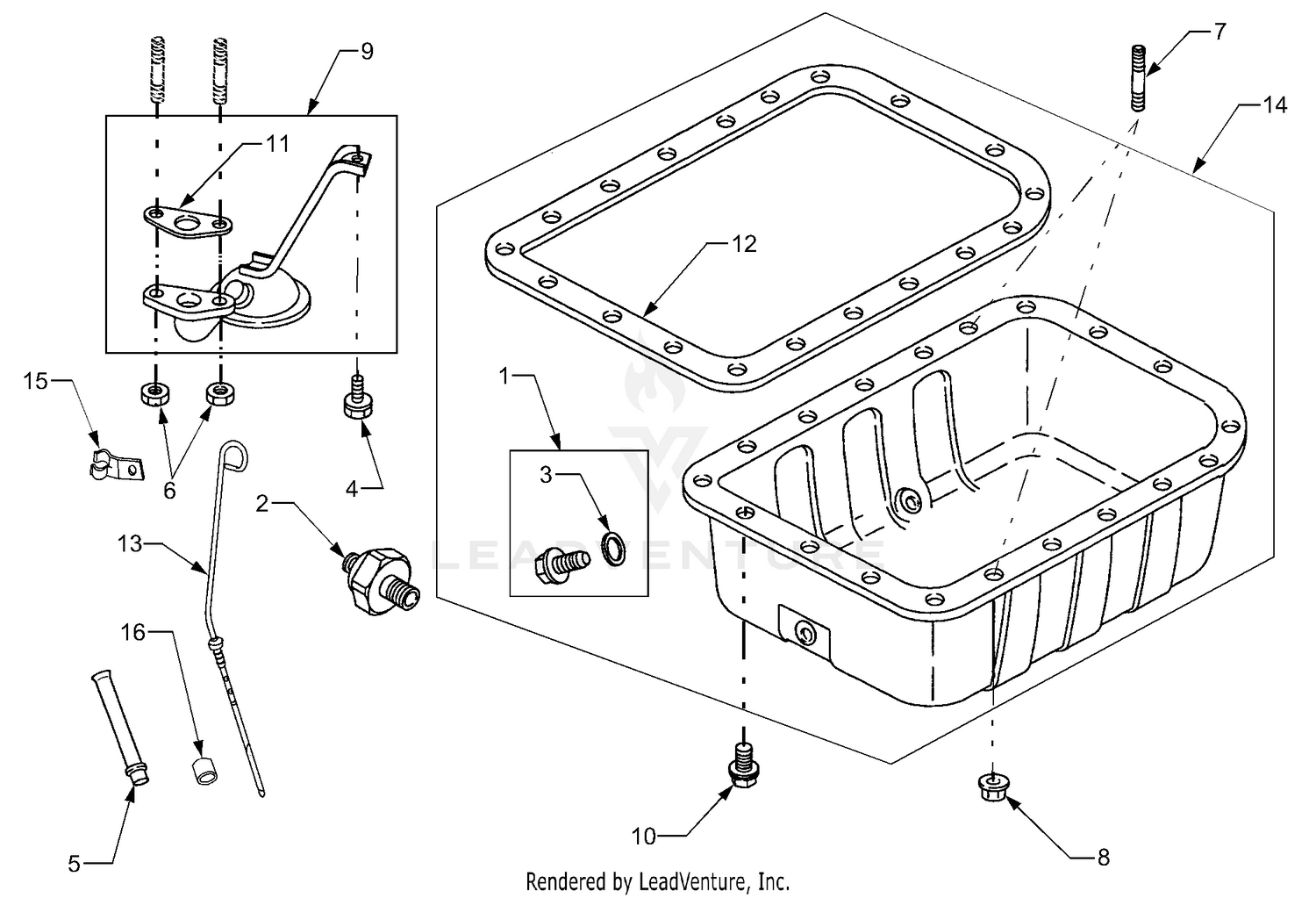

| Ref | Part Number | Description |
|---|
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 1 |
BS-825278 |
OIL DRAIN PLUG Not Available Price: |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
BS-825000 |
OIL PRESSURE SWITCH Not Available Price: |
| 3 |
32146-20 |
NUT-HEX Price: $3.23 |
| 3 |
BS-820582 |
DRAIN PLUG WASHER Not Available Price: |
| 4 |
98-8172-03 |
SUPPORT-AXLE Price: $656.24 |
| 4 |
BS-820034 |
SCREW-PUMP SCREEN Not Available Price: |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 5 |
BS-820144 |
DIPSTICK TUBE Not Available Price: |
| 6 |
237-165 |
GROMMET Price: $15.70 |
| 6 |
BS-820069 |
NUT-OIL PAN Not Available Price: |
| 7 |
BS-820017 |
STUD-OIL PAN Not Available Price: |
| 8 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 8 |
BS-820068 |
NUT-PUMP SCREEN Not Available Price: |
| 9 |
140-6101 |
PIN ASM-AXLE PIVOT This part replaces 98-8173-03. Price: $42.42 |
| 9 |
BS-825089 |
OIL PUMP SCREEN Not Available Price: |
| 10 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 10 |
BS-820034 |
SCREW-PUMP SCREEN Not Available Price: |
| 11 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 11 |
BS-820104 |
PUMP SCREEN GASKET Not Available Price: |
| 12 |
99-8431 |
WASHER-THRUST Price: $4.63 |
| 12 |
BS-820137 |
OIL PAN GASKET Not Available Price: |
| 13 |
99-8432 |
WASHER-THRUST Price: $4.21 |
| 13 |
BS-820572 |
DIPSTICK Not Available Price: |
| 14 |
BS-825734 |
OIL PAN Not Available This part replaces BS-825285. Price: |
| 15 |
BS-820238 |
SUPPORT BRACKET Not Available Price: |
| 506509201 |
506509201 |
SPACER Price: $9.99 |
| 506555901 |
506555901 |
KEY Price: $3.99 |
| 506556301 |
506556301 |
BOLT Price: $3.99 |
| 506663401 |
506663401 |
SILENCER Price: $177.29 |
| 506668401 |
501152201 |
CLAMP ASSY EXHAUST This part replaces 506668401. Price: $2.99 |
| 506668501 |
506668501 |
Screw Price: $2.13 |
| 506794501 |
506794501 |
SCREW Price: $3.99 |
| 506820801 |
506820801 |
Price: Call Us |
| 506827901 |
506827901 |
PIPE Price: $69.99 |
| 506904001 |
506904001 |
BRACKET Price: $258.04 |
| 506904002 |
506904002 |
Price: Call Us |
| 506914501 |
506914501 |
FLANGE Price: $4.99 |
| 506914701 |
506914701 |
EXHAUST PIPE Price: $66.95 |
| 506918701 |
506918701 |
SPACER Price: $5.99 |
| 506920201 |
506920201 |
PIPE Price: $108.13 |
| 725244951 |
725244951 |
BOLT - M8X16 Price: $2.99 |
| 725245151 |
725245151 |
SCREW 8X20 Price: $4.99 |
| 725245251 |
725245251 |
SCREW Price: $2.99 |
| 725245751 |
725245751 |
SCREW Price: $4.99 |
| 731231801 |
731231801 |
NUT Price: $3.99 |
| 734116401 |
734116401 |
WASHER BRB 8.4X17 Price: $5.99 |
