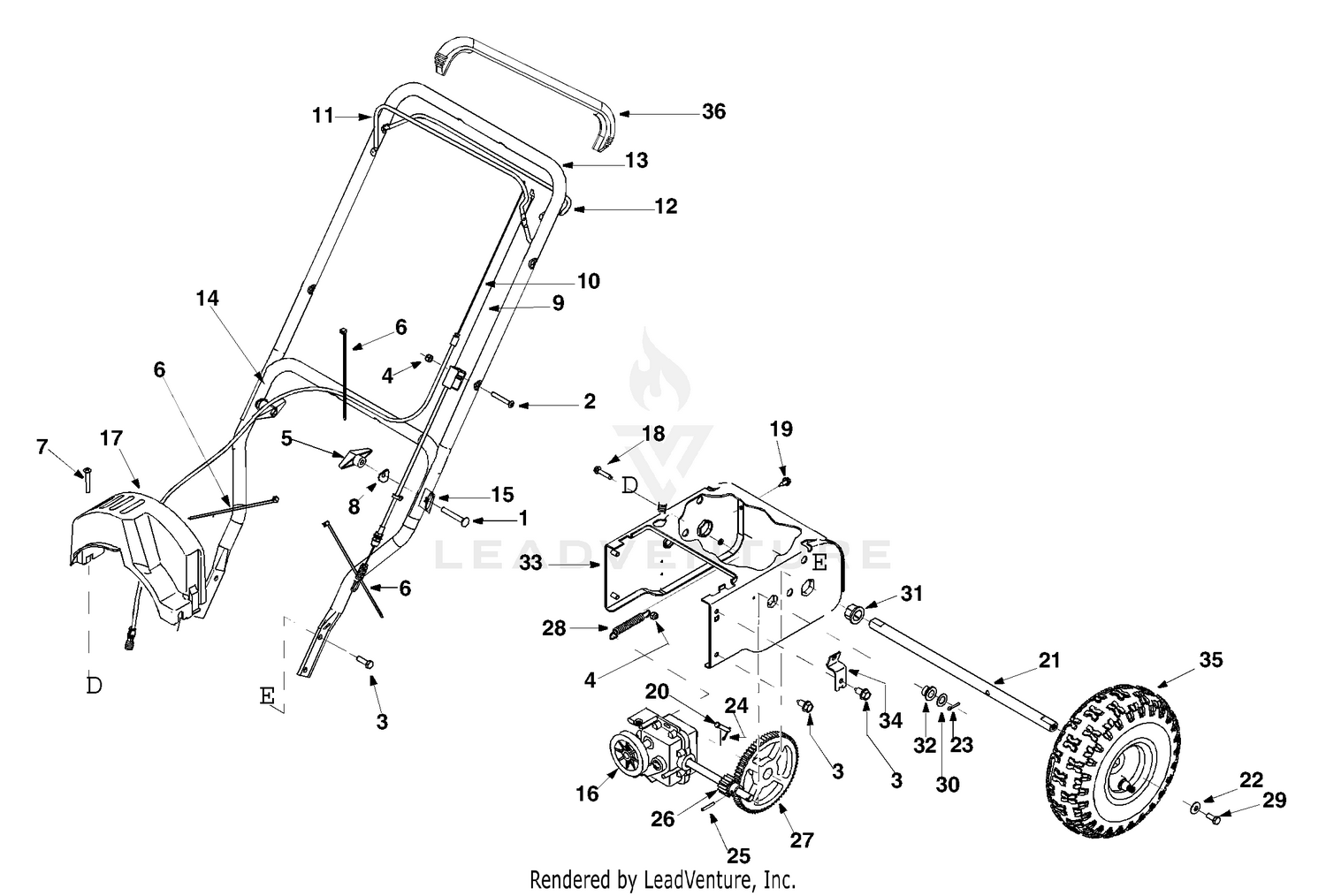

Drive

Drive

Parts (33)

RefPart NumberDescription
1 710-0572 Carriage Bolt 5/16-18 x 2.5" This part replaces 710-0449. Price: $3.75
2 710-0605 Mach. Screw 1/4-20 x 1.825" Price: $3.85
3 710-0726 Screw, 5/16-12 x.75" Price: $3.82
4 712-04064 Flange Lock Nut 1/4-20 Price: $3.64
5 720-0284 Handle Knob Assembly Price: $4.08
6 725-0157 Cable Tie Price: $3.46
7 910-0224 HEX SCREW AB-TAP #10-16 x 0.500 This part replaces 710-0224. Price: $3.19
8 736-0451 Saddle Washer Price: $3.75
9 946-04007 Auger Cable This part replaces 746-04007. Price: $37.13
11 747-1161A Auger Control Price: $10.27
12 747-1214 Drive Control Price: $20.18
13 749-1092A Upper Handle Price: $42.79
14 749-04147B Lower Handle This part replaces 749-04147. Price: $54.25
15 990-00053 Handle Tab This part replaces 790-00053. Price: $6.41
16 918-04296B Transmission Assembly This part replaces 618-04296A. Price: $251.62
17 931-04162A Belt Cover This part replaces 731-04162. Price: $26.60
18 710-0809 TT Screw 1/4-20 x 1.25" Price: $6.37
19 710-1652 Screw, 1/4-20 x.625" Price: $3.86
20 711-1364 Clevis Pin Price: $7.44
21 738-04321 Axle This part replaces 738-1231. Price: $39.01
22 736-0242 Bell Washer Price: $3.75
23 714-0115 Cotter Pin, 1/8 x 1.0 Price: $3.48
24 714-0507 Cotter Pin, 3/32 x.750 Price: $3.93
25 915-0249 Roll Pin This part replaces 715-0249. Price: $5.94
26 717-04066A Pinion, 14T This part replaces 717-04066. Price: $20.79
27 917-04073A Gear, 70 Tooth This part replaces 717-04073. Price: $53.38
28 932-0429A Extension Spring, .50 x 3.97 Lg. This part replaces 732-0429A. Price: $8.29
29 710-0627 Lock Bolt 5/16-24 x 0.75" Price: $3.68
30 736-0192 Flat Washer Price: $3.75
31 941-0245 Hex Flange Bearing, .75 ID This part replaces 741-0245. Price: $9.07
32 741-04108 Hex Flange Bearing Price: $5.20
33 784-0419C WHEEL FRAME HOUSING Not Available This part replaces 784-0419A. Price:
34 790-00015-0637 AUGER CABLE BRACKET Not Available This part replaces 790-00015. Price:
