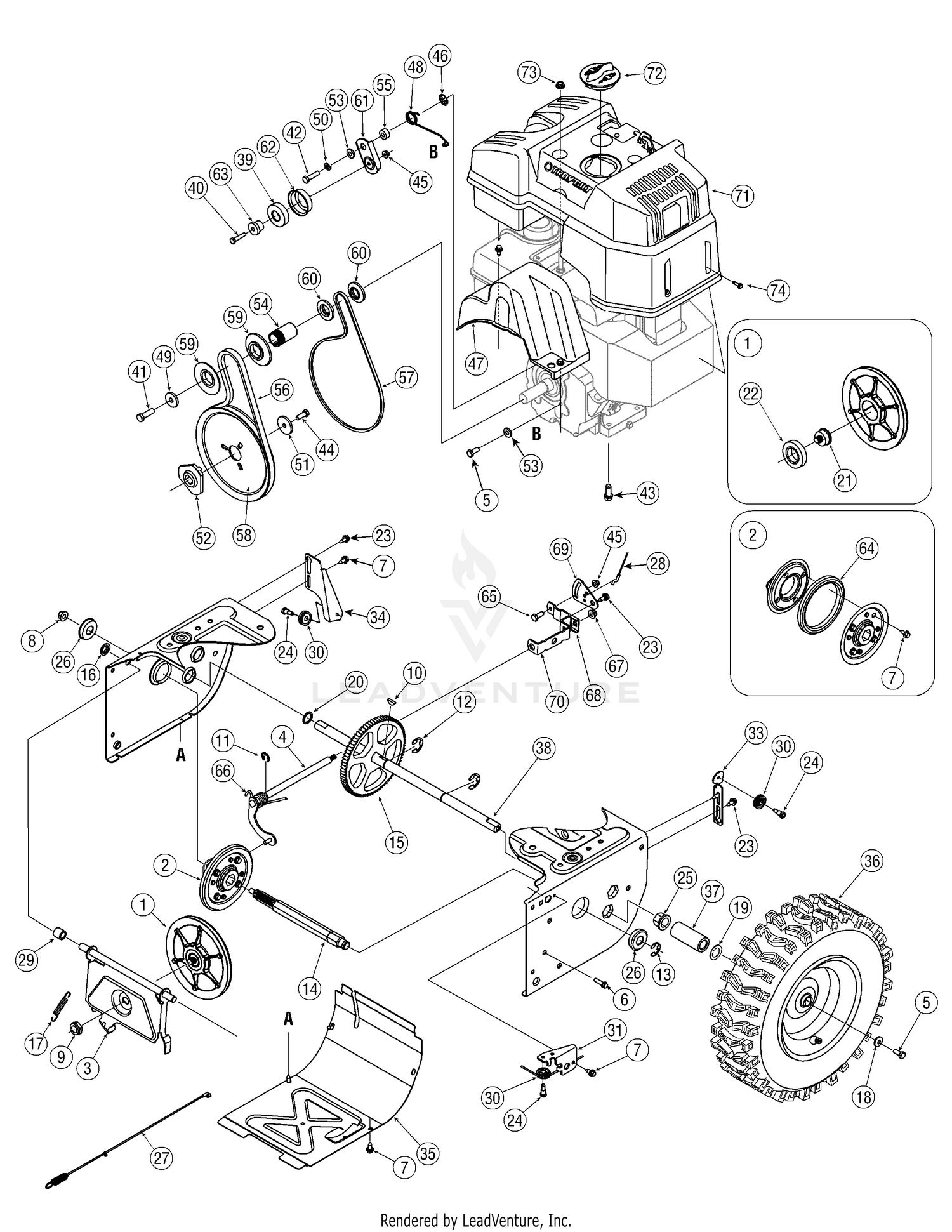

| Ref | Part Number | Description |
|---|
| 1 |
656-04055A |
FRICTION WHEEL DISC ASSEMBLY This part replaces 656-04025A. Price: $52.47 |
| 2 |
684-04153C |
Friction Wheel Assembly, 5.5 OD This part replaces 684-04153. Price: $89.34 |
| 3 |
684-04154B-0637 |
Friction Wheel Support Bracket This part replaces 684-04154. Price: $36.47 |
| 4 |
684-04156A |
Rod Shift Assembly This part replaces 684-04156. Price: $54.39 |
| 5 |
710-0627 |
Hex Screw, 5/16-24, .750, Gr5 Price: $3.68 |
| 6 |
710-0788 |
Screw, 1/4-20, 1.000 Price: $6.20 |
| 7 |
710-0896 |
Screw, 1/4-14 x .625 Price: $3.86 |
| 8 |
712-04065 |
Nut, Flange Lock, 3/8-16, Nylon Price: $3.68 |
| 9 |
712-0413 |
Nut, Jam Lock, 5/8-18, Gr5, Nylon Price: $5.50 |
| 10 |
714-0126 |
Key, Hi Pro, 3/16 x 3/4 Dia. Price: $4.05 |
| 11 |
916-0104 |
E-Ring This part replaces 716-0104. Price: $3.37 |
| 12 |
716-0136 |
E-ring, Retaining, .875 Dia. Price: $7.56 |
| 13 |
716-0231 |
E-ring, .750 Dia. Price: $3.50 |
| 14 |
917-04209A |
Hex Shaft, 7-Tooth This part replaces 717-04209. Price: $125.78 |
| 15 |
917-04230 |
Gear, 80-Tooth This part replaces 717-04230. Price: $94.93 |
| 16 |
726-0221 |
Speed Nut, .500 Price: $5.34 |
| 17 |
932-0264 |
Extension Spring This part replaces 732-0264. Price: $4.40 |
| 18 |
736-0242 |
Washer, Bell, .340 x .872 x .060 Price: $3.75 |
| 19 |
736-0287 |
Washer, Flat, .793 x 1.24 x .060 Price: $3.93 |
| 20 |
736-04161 |
Washer, Flat, .75 x 1.00 x .060 Price: $6.01 |
| 21 |
738-04164A |
Pin, Friction Disc Price: $21.61 |
| 22 |
741-04098 |
Ball Bearing, 30 x 55 x 13 Price: $18.97 |
| 23 |
738-04184A |
Screw, Shoulder, .37 x .105, 1/4-20 Price: $5.99 |
| 24 |
738-0924A |
Screw, 1/4-28, .375 Price: $5.94 |
| 25 |
941-0245 |
Hex Flange Bearing, .75 ID This part replaces 741-0245. Price: $9.07 |
| 26 |
941-0563 |
Ball Bearing, 17 x 40 x 12 This part replaces 741-0563. Price: $33.84 |
| 27 |
946-04229B |
Wheel Clutch Cable, 44.95" This part replaces 746-04229. Price: $18.98 |
| 28 |
746-04228A |
Speed Cable This part replaces 746-04228. Price: $20.29 |
| 29 |
748-0190 |
Spacer, .508 ID x .75 OD x .68 Price: $5.48 |
| 30 |
756-0625 |
Roller, Cable Price: $8.52 |
| 31 |
790-00096 |
Front Guide Bracket, Auger Cable Price: $6.65 |
| 32 |
790-00180E |
DRIVE FRAME HOUSING This part replaces 790-00180. Price: $122.39 |
| 33 |
790-00206B |
AUGER CABLE GUIDE BRACKET This part replaces 790-00206A. Price: $7.40 |
| 34 |
790-03997 |
CABLE GUIDE BRACKET (DRIVE) This part replaces 790-00207A. Price: $4.55 |
| 35 |
790-00226 |
FRAME COVER Not Available Price: |
| 36 |
634-04145 |
Wheel Assembly Left-Hand 16 x 4.8 x 8 Price: $191.87 |
| 36 |
634-04146 |
Wheel Assembly Right-Hand 16 x 4.8 x 8 Price: $190.96 |
| 36 |
634-04173-0662 |
RIM ASSEMBLY (8.0X3.75) W/VALVE This part replaces 634-04140. Price: $73.14 |
| 36 |
734-2038-0901 |
TIRE-16X4.8 This part replaces 734-2038. Price: $84.31 |
| 37 |
731-04873 |
Spacer, 1.25 x .75 x 3.0 Price: $8.93 |
| 38 |
938-04493 |
WHEEL AXLE SHAFT .75 x 22" This part replaces 738-04168. Price: $55.87 |
| 39 |
741P0919B |
BALL BEARING This part replaces 741-0919. Price: $18.90 |
| 40 |
710-0106 |
Hex Screw, 1/4-20, 1.25, Gr5 Price: $3.66 |
| 41 |
710-0191 |
Hex Screw, 3/8-24, 1.25, Gr8 Price: $4.02 |
| 42 |
710-04520 |
SCREW 5/16-24:1.25 GR5 Not Available Price: |
| 43 |
710-0654A |
Screw, Sems, 3/8-16, 1.00 Price: $3.75 |
| 44 |
710-1245B |
Hex Screw, 5/16-24, .875, Gr8 Price: $7.21 |
| 45 |
712-04064 |
Nut, Flange Lock, 1/4-20, Nylon Price: $3.64 |
| 46 |
726-04012 |
Nut, Push-on, .25 Dia. Price: $6.20 |
| 47 |
631-05321 |
BELT COVER (SMALL BLOCK) This part replaces 731-04792A. Price: $21.88 |
| 48 |
732-04308C |
Torsion Spring, .850 dia. x .333 lg. This part replaces 732-04308. Price: $4.42 |
| 49 |
736-0247 |
Washer, Flat, .406 x 1.25 x .157 Price: $8.82 |
| 50 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 51 |
736-0505 |
Washer, Flat, .34 x 1.50 x .150 Price: $5.65 |
| 52 |
748-04053A |
Adapter Pulley, .75 Dia. This part replaces 748-04053. Price: $19.41 |
| 53 |
748-04112B |
Shoulder Spacer, .3175 x .5 x .0975 This part replaces 748-04112. Price: $3.60 |
| 54 |
750-04303 |
Spacer, .875 ID x 1.185 OD Price: $15.09 |
| 55 |
750-04477A |
Spacer, .340 x .750 x .330 This part replaces 750-04477. Price: $4.53 |
| 56 |
954-04050A |
Auger Drive Belt This part replaces 754-04050. Price: $25.43 |
| 57 |
754-04088 |
Belt, Wheel Drive Price: $14.00 |
| 58 |
756-04109 |
Pulley, Auger Drive, 8.1 x .5 Price: $47.55 |
| 59 |
756-06563 |
HALF PULLEY A2.76 x 1.140 SPLINE This part replaces 756-04113. Price: $3.40 |
| 60 |
956-04179 |
HALF PULLEY:1/4-V x 1.5 OD Not Available This part replaces 756-04179. Price: |
| 61 |
790-00208D |
Wheel Drive Idler Bracket This part replaces 790-00208. Price: $7.85 |
| 62 |
790-00230 |
Sleeve, Bearing Idler Price: $6.36 |
| 63 |
750-04571 |
Spacer, Shoulder, .26 x .79 x .538 Price: $6.01 |
| 64 |
935-04054A |
FRICTION WHEEL 5.50OD This part replaces 735-04054. Price: $35.10 |
| 65 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 66 |
732-04311A |
TORSION SPRING This part replaces 732-04311. Price: $9.09 |
| 67 |
712-04063 |
Nut, Flange Lock, 5/16-18, Nylon Price: $3.56 |
| 68 |
790-00156 |
Bracket, Shift Spacer Price: $6.73 |
| 69 |
790-00217A |
Pivot Bracket, Speed Selector Price: $8.22 |
| 70 |
790-00218A |
Shift Bracket, Speed Selector Price: $41.84 |
| 71 |
984-04014A |
SHROUD-W/DECALS Not Available This part replaces 731-04049A. Price: |
| 72 |
684-04011 |
SPARK PLUG CAP ASSEMBLY Not Available Price: |
| 73 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
