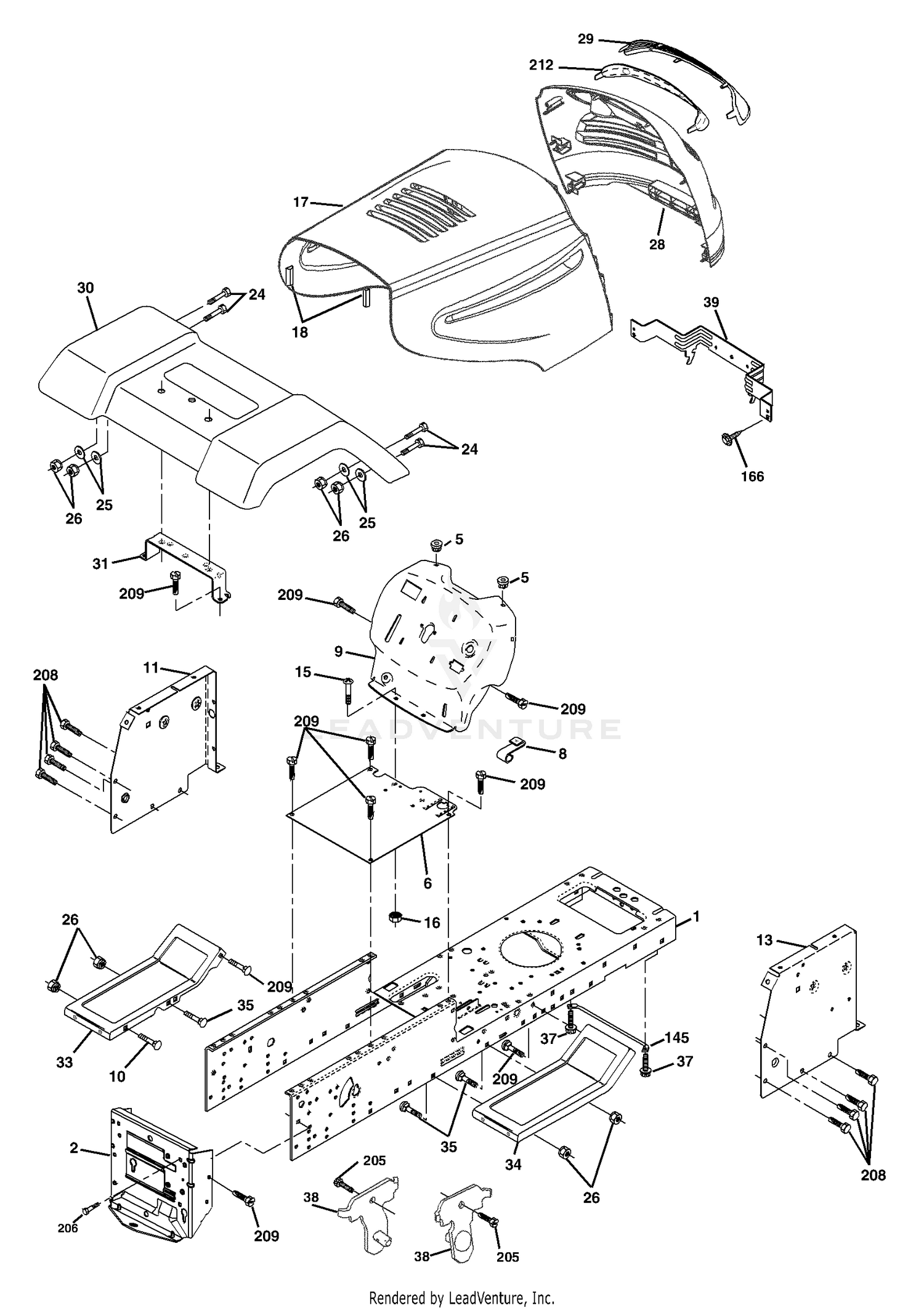

| Ref | Part Number | Description |
|---|
| 1 |
174620 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar, Stretch Price: Call Us |
| 5 |
155272 |
Bumper, Hood/Dash Price: Call Us |
| 6 |
174643X013 |
Saddle Silkscreen Price: Call Us |
| 8 |
155138 |
Clip Retainer Slide-On Price: Call Us |
| 9 |
187834X013 |
Dash Price: Call Us |
| 010 |
119-8043 |
INJECTION PUMP KIT This part replaces 100-9201. Price: $3,247.73 |
| 10 |
72140608 |
Bolt, Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash LH Price: Call Us |
| 13 |
179174X010 |
Panel Slkscr Dash RH Price: Call Us |
| 15 |
74180512 |
Screw Mach TRHD 5/16-18 unc x 3/4 Price: Call Us |
| 16 |
73510500 |
Nut Keps 5/16-18 unc Price: Call Us |
| 17 |
183394X505 |
Hood Price: Call Us |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 020 |
98-7619 |
PLUNGER-PUMP Price: $192.95 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 unc Price: Call Us |
| 29 |
183824X599 |
Lens Grille Price: Call Us |
| 030 |
98-7620 |
VALVE-DELIVERY Price: $107.76 |
| 30 |
169465X505 |
Fender Price: Call Us |
| 31 |
136619 |
Bracket Fender Repl 109873x Price: Call Us |
| 33 |
179716X505 |
Footrest Pnt LH Price: Call Us |
| 34 |
179717X505 |
Footrest Pnt RH Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Price: Call Us |
| 39 |
174714 |
Bracket Pivot Price: Call Us |
| 040 |
98-7621 |
SPRING-VALVE, DELIVERY Price: $5.13 |
| 050 |
98-7622 |
GASKET-VALVE, DELIVERY Price: $2.46 |
| 060 |
98-7623 |
HOLDER-VALVE, DELIVERY Price: $144.88 |
| 070 |
98-7624 |
LOCK PLATE ASM Price: $8.02 |
| 080 |
98-7625 |
TAPPET ASM Price: $215.53 |
| 090 |
98-7626 |
PIN-GUIDE, TAPPET Price: $1.59 |
| 100 |
98-7627 |
PLATE Price: $3.98 |
| 110 |
98-7628 |
SPRING-PLUNGER Price: $9.74 |
| 120 |
98-7629 |
SEAT-SPRING, UPPER Price: $1.55 |
| 130 |
98-7630 |
SEAT-SPRING, LOWER Price: $40.01 |
| 140 |
98-7631 |
SHIM Price: $41.47 |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 150 |
98-7632 |
RACK-CONTROL Price: $133.70 |
| 160 |
98-7634 |
SLEEVE-CONTROL Price: $27.58 |
| 166 |
191611 |
Screw 10 x 3/4 Single Lead-Hex Price: Call Us |
| 170 |
98-7635 |
SCREW Price: $19.45 |
| 180 |
98-7636 |
GASKET Price: $3.11 |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 212 |
183823 |
Insert Lens Reflect Price: Call Us |
| 5479J |
Plug |
Button Blk 359 Dia Choke Price: Call Us 5479J |
