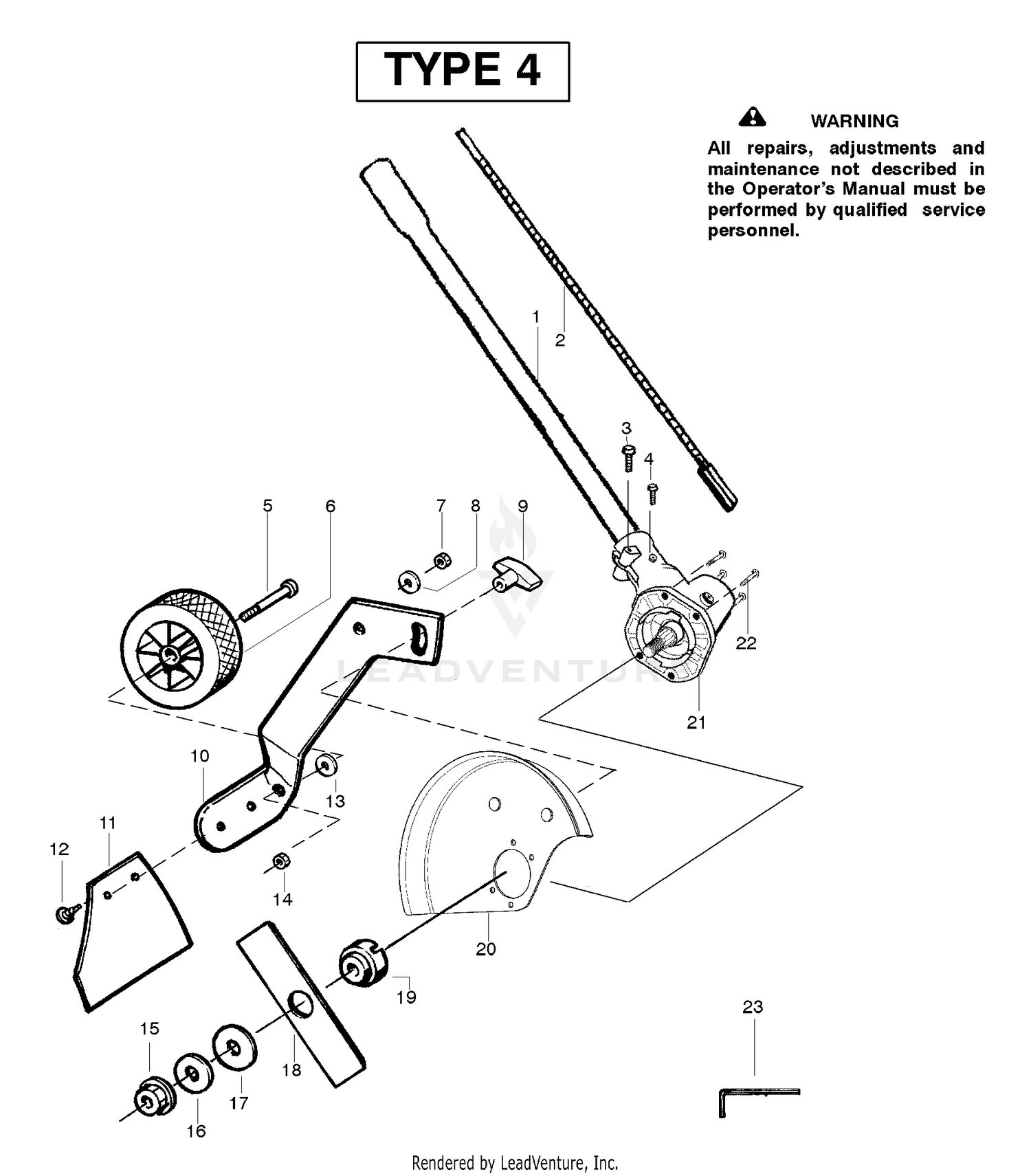

Edger Attachment Assembly Type 4
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 353-601 | DISCONTINUED Price: Call Us |
| 1 | 545006090 | Assy.-Driveshaft Price: Call Us |
| 2 | 353-600 | DISCONTINUED Price: Call Us |
| 2 | 530096183 | Flexshaft-Split boom Price: $2.99 |
| 3 | 353-588 | COVER MOTOR Price: $400.82 |
| 3 | 530016014 | Screw Price: $1.99 |
| 4 | 353-599 | PIN-DOWEL Price: $2.65 |
| 4 | 530015775 | Screw-Alignment Price: $1.99 |
| 5 | 353-597 | BRIDGING INSERT Price: $5.51 |
| 5 | 530015981 | Bolt-Shoulder Axle Price: $1.99 |
| 6 | 353-598 | GASKET INSERT Price: $10.55 |
| 7 | 353-593 | IDLER GEAR ASM Price: $465.66 |
| 7 | 530015515 | Locknut Price: $1.99 |
| 8 | 353-591 | BLOCK ANTI EXTRUSION Price: $12.16 |
| 8 | 530092062 | Washer Price: $1.99 |
| 9 | 32151-41 | RING-SNAP Price: $0.41 |
| 9 | 530092059 | Knob Price: $6.99 |
| 10 | 530053009 | Bracket-Adj. Wheel Price: $8.99 |
| 10 | 92-8863 | REPAIR KIT This part replaces 353-585. Price: $53.91 |
| 11 | 353-590 | SPACER Price: $1.09 |
| 12 | 353-777 | MOTOR BODY Price: $352.14 |
| 12 | 530053012 | Fastener-Mud Flap Price: $1.99 |
| 13 | 353-586 | NEEDLE BEARING Price: $32.35 |
| 13 | 530092062 | Washer Price: $1.99 |
| 14 | 353-594 | SEAL ASM Price: $47.39 |
| 14 | 530015515 | Locknut Price: $1.99 |
| 15 | 353-595 | DISCONTINUED Price: Call Us |
| 16 | 353-592 | DRIVE SHAFT Price: $419.20 |
| 16 | 530016240 | Washer-Belleville Price: $1.99 |
| 17 | 530015792 | Washer-Flat Price: $1.99 |
| 18 | 952711625 | Accy-7.5" Blade Price: $8.95 |
| 19 | 530054623 | Dustcup Price: $6.99 |
| 20 | 530071930 | Kit-Edger Guard Price: $12.99 |
| 22 | 530016312 | Screw Price: $1.99 |
| 23 | 530031159 | Wrench-Hex (5/32") Price: $1.99 |
