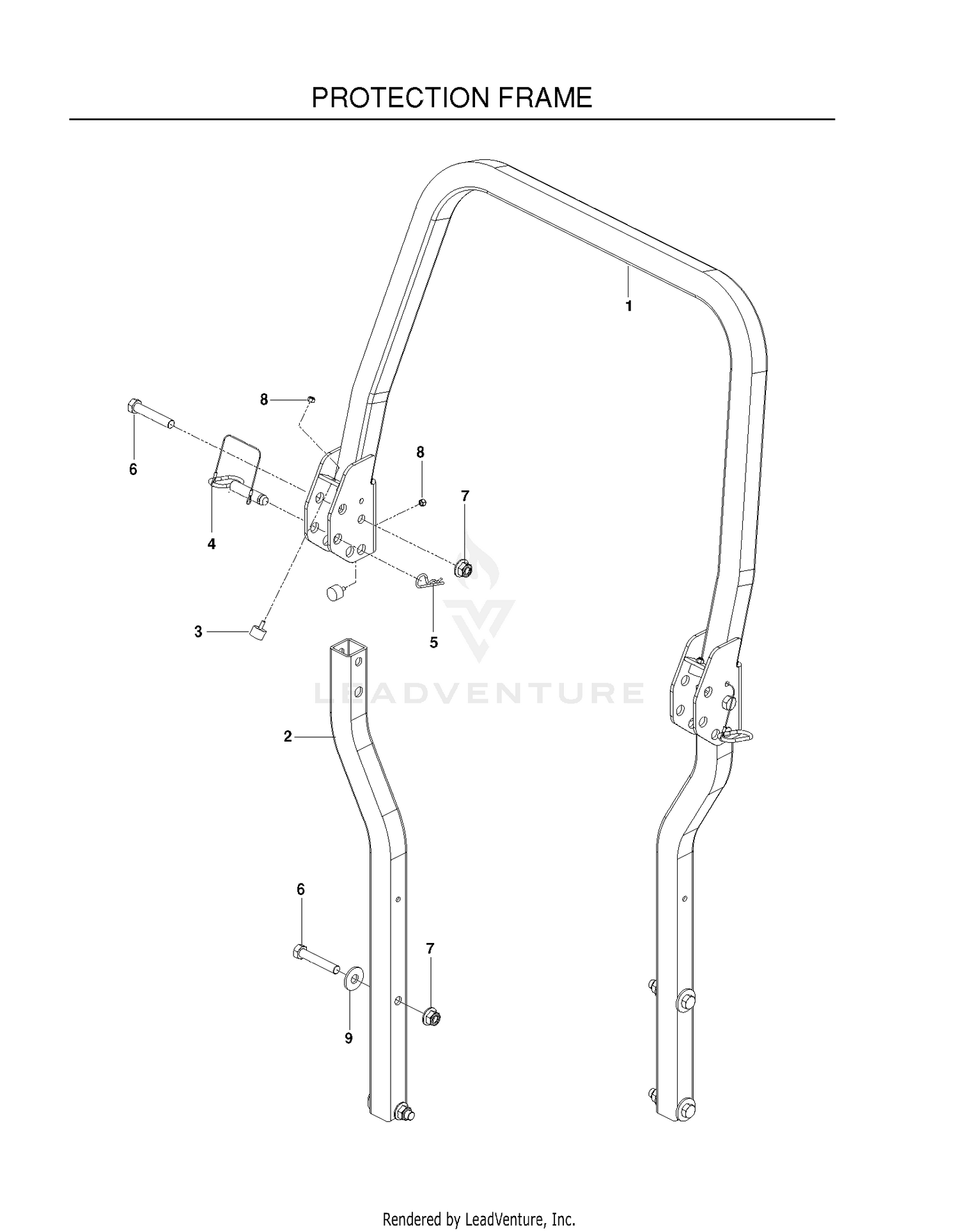

| Ref | Part Number | Description |
|---|
| 1 |
575324502 |
ROPS.TOP.GRAY Price: $329.99 |
| 1 |
69-8830 |
DISCONTINUED Price: Call Us |
| 2 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 2 |
574330902 |
TUBE.SIDE.ROPS.GREY Price: $129.99 |
| 3 |
325-20 |
SCREW-HH Price: $6.29 |
| 3 |
522801401 |
BUMPER, MALE STUD, 1/4-20 Price: $2.99 |
| 4 |
574388002 |
Pins This part replaces 574388001. Price: $9.99 |
| 4 |
69-8790-01 |
PLATE-REINFORCING This part replaces 69-8790. Price: $21.41 |
| 5 |
596918001 |
Pins This part replaces 539200715. Price: $2.99 |
| 5 |
98-4435 |
RUBBER MOUNT ASM This part replaces 69-9700. Price: $102.40 |
| 6 |
580754602 |
Bolts This part replaces 539115576. Price: $7.99 |
| 7 |
32128-23 |
NUT-HF Price: $1.51 |
| 7 |
525829102 |
Nuts This part replaces 525829101. Price: $2.99 |
| 8 |
32128-45 |
NUT-HHF Price: $7.67 |
| 8 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 9 |
30-8770 |
WASHER Price: $3.43 |
| 10 |
69-7170-01 |
CLEVIS This part replaces 69-7170. Price: $307.49 |
| 11 |
3233-29 |
SCREW-CARR Price: $8.69 |
| 12 |
3233-28 |
SCREW-CARR Price: $5.56 |
| 13 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 14 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 15 |
71-2610 |
SHAFT-PIVOT, DECK Price: $251.69 |
| 16 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 17 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 18 |
98-1461-01 |
BAR-LIFT, LH This part replaces 69-6420. Price: $504.26 |
| 19 |
69-8800 |
OUTSIDE CASTOR ARM WA*R This part replaces 13-5059. Price: $1,113.42 |
| 20 |
13-5009 |
LH DECK ASM Price: $3,588.60 |
| 21 |
69-6730-01 |
SKID ASM This part replaces 69-6730. Price: $264.77 |
| 22 |
3233-9 |
SCREW-CARR Price: $1.97 |
| 23 |
323-15 |
SCREW-HH Price: $1.53 |
| 24 |
5-0838 |
WASHER Price: $1.09 |
| 25 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 26 |
327-17 |
SCREW-HH Price: $8.50 |
| 27 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 28 |
104-2547 |
SPACER INNER This part replaces 251-332. Price: $25.11 |
| 29 |
251-321 |
BEARING-BALL, FLANGED Price: $22.10 |
| 31 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 32 |
75-9670-01 |
FORK-CASTOR This part replaces 75-9670. Price: $242.32 |
| 33 |
69-6860 |
WASHER-THRUST Price: $3.15 |
| 34 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 35 |
69-1510 |
SPACER Price: $4.48 |
| 36 |
95-0819 |
DECAL-BELT ROUTING, LEFT This part replaces 69-0890. Price: $16.94 |
| 37 |
66-1340 |
DECAL-DANGER, THROWN OBJECT Price: $9.07 |
| 38 |
69-0880 |
DISCONTINUED Price: Call Us |
| 39 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 40 |
256-304 |
WASHER-THRUST Price: $3.94 |
