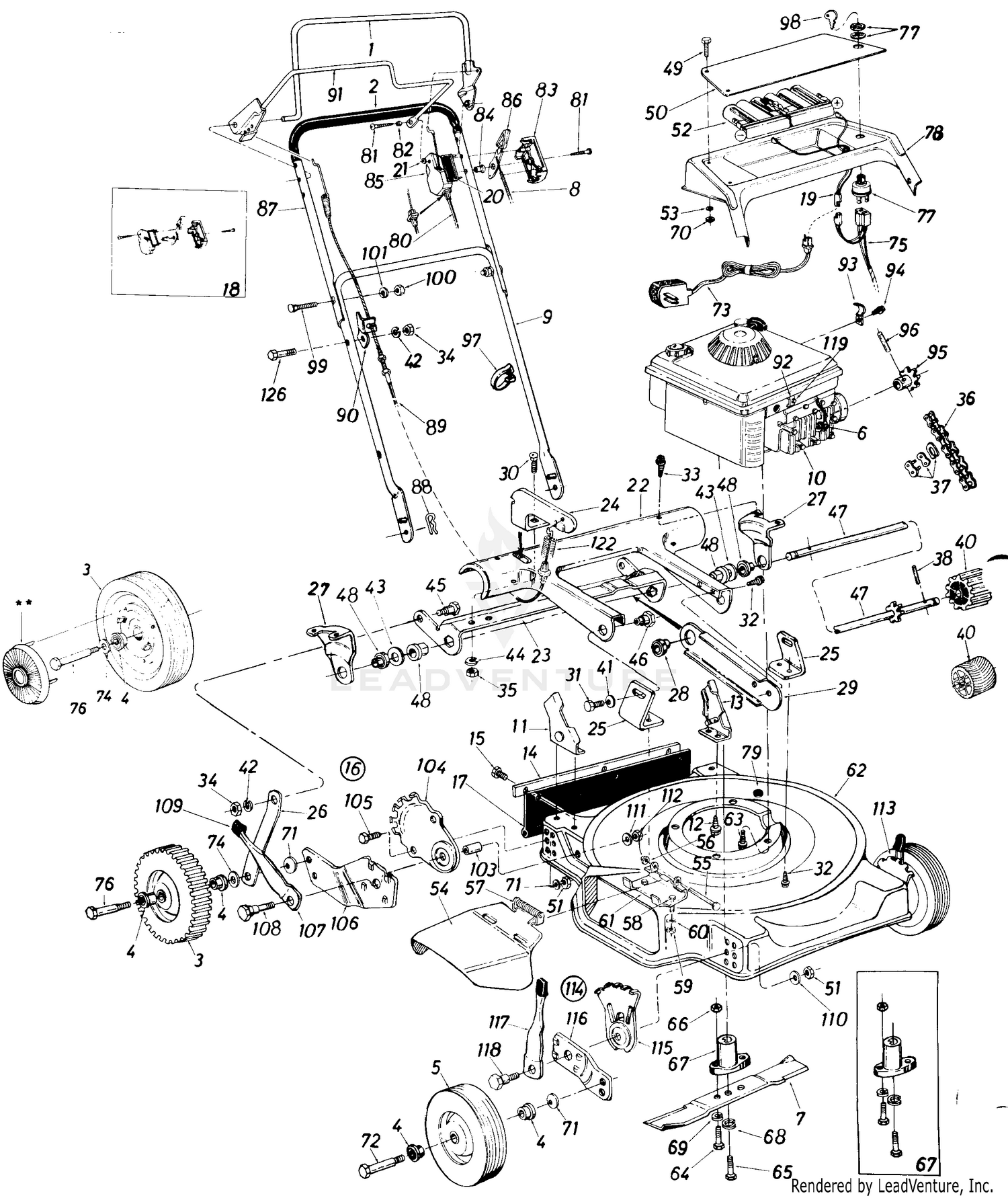

| Ref | Part Number | Description |
|---|
| 1 |
14321 |
CONTROL HANDIE ASS'Y.-L.H. Not Available Price: |
| 5 |
N/A |
Front Wheel Ass'y. Comp. |
| 6 |
735-0639 |
INSULATOR-SPARK PLUG Not Available Price: |
| 8 |
946-0671A |
Throttle Wire 55" Lg. This part replaces 746-0474. Price: $13.09 |
| 9 |
749-0690 |
Lower Handle Price: Call Us |
| 10 |
N/A |
Engine |
| 11 |
12936 |
BRACKET ASSY-HDLE Not Available Price: |
| 12 |
710-0603 |
Hex Wash. Hd. "B"-Tap Scr. 5/16-18 x .50" Lg. Price: $4.19 |
| 13 |
12935 |
BRACKET AS Not Available Price: |
| 14 |
14846 |
RETAINER STRIP Not Available Price: |
| 15 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86 |
| 16 |
14762 |
ADJUSTER A Not Available Price: |
| 17 |
731-1029 |
FLAP ASSEMBLY Not Available This part replaces 731-0575. Price: |
| 18 |
753-0360 |
CONTROL HOUSING COMP. Not Available Price: |
| 19 |
725-1106 |
Battery Pack Lead Price: Call Us |
| 20 |
777-5167 |
Control Label Price: Call Us |
| 21 |
736-0931 |
Flat Wash. .203" I.D. x .406" O.D. Price: $4.02 |
| 22 |
16319 |
COVER-PINI Not Available Price: |
| 23 |
16332 |
CAM Not Available Price: |
| 24 |
16318 |
Engagement Arm Price: Call Us |
| 25 |
14759 |
BRACKET-PIVOT LH Not Available Price: |
| 27 |
14757 |
BRACKET-AX Not Available Price: |
| 28 |
941-0180 |
BALL BEARING Not Available This part replaces 741-0180. Price: |
| 29 |
14877 |
Brg. Support Price: Call Us |
| 30 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 31 |
710-0168 |
Hex Bolt 3/8-16 x .50" Lg. Price: $3.38 |
| 32 |
710-0352 |
Hex "B"-Tap Scr. 1/4" x .38" Lg. Price: $4.05 |
| 33 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86 |
| 34 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 35 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 38 |
915-0246 |
Roll Pin 3/16 x 1.25" Not Available This part replaces 715-0246. Price: |
| 41 |
736-0105 |
Bell-Wash. .400" I.D. x .88" O.D. x .060 Price: $3.96 |
| 42 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 43 |
736-0160 |
Fl-Wash. .531" I.D. x .930" O.D. x .050 Price: $3.90 |
| 44 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 45 |
938-0155 |
Shoulder Bolt This part replaces 738-0155. Price: $6.01 |
| 46 |
938-0529 |
Shoulder Nut.825 x .165 Lg. This part replaces 738-0529. Price: $9.85 |
| 47 |
738-0530 |
PINION SHAFT Not Available Price: |
| 48 |
941-0484 |
BALL BEARING This part replaces 741-0484. Price: $6.87 |
| 49 |
710-0783 |
HEX SCREW WASH HD 10-32X.38 Not Available Price: |
| 50 |
16360 |
Battery Plate Price: Call Us |
| 51 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 52 |
725-1105 |
BATTERY PACK Not Available Price: |
| 53 |
736-0168 |
WASHER-EXTERN L #8 Not Available Price: |
| 54 |
931-1034B |
CHUTE DEFLECTOR Not Available This part replaces 14944. Price: |
| 55 |
711-0555 |
PIVOT PIN Not Available Price: |
| 56 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 57 |
732-0253 |
TORSION SPRING Not Available Price: |
| 58 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 59 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 60 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 61 |
11130 |
ADAPTER PLATE Not Available Price: |
| 63 |
710-0654A |
TT Screw, 3/8-16 x 1.00 This part replaces 710-0654. Price: $3.75 |
| 64 |
710-0888 |
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) Price: $3.86 |
| 65 |
710-0331 |
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) Price: $6.01 |
| 66 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 67 |
753-0348 |
Blade Adapter Kit Price: Call Us |
| 68 |
736-0217 |
L-Wash. 3/8" I.D.-H.D. Price: $3.86 |
| 69 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 70 |
712-0142 |
Hex Nut #8-32 Thd. Price: $3.90 |
| 71 |
736-0105 |
Bell-Wash. .40" I.D. x .88" O.D. Price: $3.96 |
| 72 |
N/A |
Front Axle Bolt |
| 73 |
925-0727 |
Battery Charger This part replaces 725-0727. Price: $72.19 |
| 74 |
736-0192 |
Fl-Wash. .531" I.D. x .93" O.D. Price: $3.75 |
| 75 |
725-1096 |
Wire Harness Price: Call Us |
| 76 |
738-0144 |
SHOULDER SCREW .498 Not Available Price: |
| 77 |
925-0873 |
KEY SWITCH Not Available This part replaces 725-0873. Price: |
| 78 |
731-0741 |
PANEL-BATTERY Not Available Price: |
| 79 |
731-0564 |
PLUG Not Available Price: |
| 80 |
746-0476 |
THROTTLE CABLE Not Available Price: |
| 81 |
710-0796 |
Truss Mach. Self-Tap Scr. #12 x 1.50" Lg. Price: $4.75 |
| 82 |
750-0649 |
SPACER Not Available Price: |
| 83 |
731-0523 |
CONTROL PANEL HALF Not Available Price: |
| 84 |
731-0524 |
CONROL DISC PIN Not Available Price: |
| 85 |
731-0526 |
CLUTCH PANEL HALF Not Available Price: |
| 86 |
931-0972 |
Throttle Control Lever This part replaces 731-0528. Price: $8.84 |
| 87 |
749-0438D-0637 |
UPPER HANDLE Not Available This part replaces 749-0436. Price: |
| 88 |
714-0104 |
Hairpin Cotter Price: $3.90 |
| 89 |
746-0549 |
Clutch Cable w/Spring Price: Call Us |
| 90 |
16309A |
CABLE BRACKET MOUNTING Not Available This part replaces 16309. Price: |
| 91 |
16391 |
HANDLE ASSEMBLY Not Available Price: |
| 92 |
751-0333 |
CASING CLAMP Not Available Price: |
| 93 |
12894 |
CABLE CLAMP Not Available Price: |
| 94 |
910-0429 |
Hex B-Tap Scr. #10 x .38" This part replaces 710-0429. Price: $3.20 |
| 95 |
713-0308 |
SPROCKET-10T Not Available Price: |
| 96 |
715-0247 |
SPRING PIN Not Available Price: |
| 97 |
726-0192 |
CABLE TIE Not Available Price: |
| 98 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 99 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 100 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 101 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 103 |
950-0503 |
SPACER Not Available This part replaces 750-0503. Price: |
| 104 |
14764C |
Index Plate Not Available This part replaces 14764. Price: |
| 105 |
710-0216 |
Hex Bolt 3/8-16 x .75" Lg. Price: $3.93 |
| 106 |
14765 |
BAR-PIVOT (RH) *ON Not Available Price: |
| 107 |
732-0417A |
SPRING LEVER Not Available This part replaces 732-0417. Price: |
| 108 |
738-0528 |
SHOULDER SCREW Not Available Price: |
| 109 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01 |
| 110 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 111 |
736-0242 |
Bell-Wash. .336" I.D. x .860 O.D. Price: $3.75 |
| 112 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 113 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14579. Price: $57.55 |
| 114 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 115 |
787-01290A |
Height Adjustment Plate This part replaces 15261. Price: $10.58 |
| 116 |
15262B |
Pivot Bar This part replaces 15262. Price: $13.59 |
| 117 |
94832 |
Front Spring Lever This part replaces 14832. Price: $9.48 |
| 118 |
738-0507B |
Shoulder Bolt .50" Dia. This part replaces 738-0507. Price: $3.86 |
| 119 |
710-0899A |
Hex Sems Scr. #10-32 x .62" Lg. This part replaces 710-0899. Price: $5.89 |
| 122 |
932-0306A |
Compression Spring This part replaces 732-0306. Price: $7.69 |
