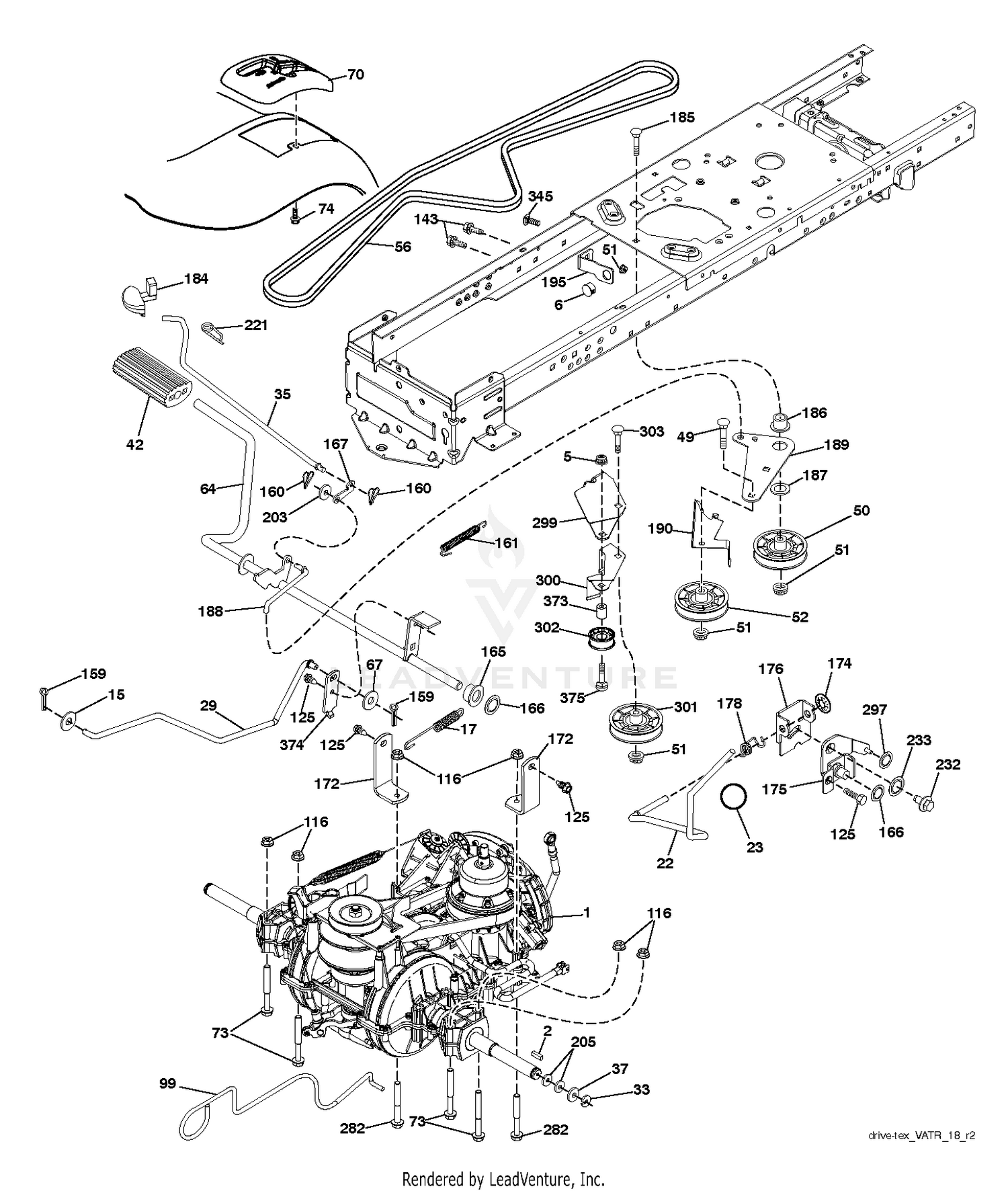

| Ref | Part Number | Description |
|---|
| 1 |
66-6370 |
LIFT ARM ASM This part replaces 21-3100. Price: $430.43 |
| 2 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 2 |
532123583 |
SQUARE KEY Price: $2.99 |
| 3 |
32136-2 |
NUT-SHH Price: $3.55 |
| 4 |
21-3020-01 |
MOUNT-BALLJOINT, RH This part replaces 21-3020. Price: $178.87 |
| 5 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 5 |
873680600 |
LOCKNUT Price: $1.99 |
| 6 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 6 |
532124028 |
GROMMET T Price: $3.99 |
| 7 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 8 |
3217-8 |
NUT-HEX Price: $1.34 |
| 9 |
66-7150 |
ARM-PUSH, RH This part replaces 21-2910. Price: $536.26 |
| 10 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 11 |
24-9510 |
PIN Price: $77.49 |
| 12 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 13 |
256-126 |
BUSHING Price: $9.36 |
| 14 |
3272-33 |
PIN-COTTER Price: $0.54 |
| 15 |
23-1950-01 |
SUPPORT-REINFORCEMENT This part replaces 23-1950. Price: $69.64 |
| 15 |
819131316 |
WASHER Price: $2.99 |
| 16 |
324-5 |
SCREW-HH Price: $0.54 |
| 17 |
3-7292 |
PIN-CLEVIS Price: $44.11 |
| 17 |
584954001 |
SPRING BRAKE VARIATOR Price: $1.99 |
| 18 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 19 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 20 |
21-3750 |
SUPPORT PLT Price: $14.42 |
| 21 |
21-2860-01 |
PUSH ARM BRACKET ASM This part replaces 21-2860. Price: $154.46 |
| 22 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 22 |
532421063 |
ROD.SHIFT.LT.TEX.VARIATOR Price: $29.99 |
| 23 |
21-2990 |
SHAFT-PIVOT Price: $227.21 |
| 23 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $8.99 |
| 24 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 25 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 26 |
21-2960 |
ARM-PUSH, LH Price: $519.38 |
| 27 |
21-2900-01 |
SPRING-TORSION, LH This part replaces 21-2900. Price: $566.83 |
| 28 |
21-2890-01 |
SPRING-TORSION, RH This part replaces 21-2890. Price: $566.83 |
| 29 |
21-3050-01 |
LH BALL JOUNT MOUNT ASM This part replaces 21-3050. Price: $153.41 |
| 29 |
584823102 |
ROD.BRAKE.VARIATOR.SD3.X431 This part replaces 584823101. Price: $8.99 |
| 30 |
86-8100-01 |
BALL JOINT ASM This part replaces 21-0160. Price: $137.53 |
| 31 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 32 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
| 33 |
61-3610 |
WARNING DECAL This part replaces 36-4060. Price: $16.67 |
| 33 |
812000001 |
E-RING LT Price: $2.99 |
| 34 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 35 |
5-2942 |
SHACKLE Price: $16.99 |
| 35 |
532401031 |
ROD.CNTRL.PARK.PREDATOR.LT.TEX Price: $12.99 |
| 37 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 42 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 49 |
872110614 |
BOLT Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $9.99 |
| 51 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $9.99 |
| 56 |
532197253 |
BELT.DRIVE.MOWER.TEX.42" Price: $27.99 |
| 64 |
580401501 |
SHAFT SUB ASM PEDAL BRAKE Price: $19.99 |
| 67 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 70 |
532440323 |
CONSOLE.AUTO.VARIATOR.BLACK Price: $14.99 |
| 73 |
874490544 |
BOLT HEX 5/16-18 GR 5 Price: $2.99 |
| 74 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 99 |
532435935 |
ROD.BYPASS.VARIATOR.GEN2 Price: $2.99 |
| 116 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 143 |
817490508 |
SCREW LT Price: $3.99 |
| 159 |
876020412 |
COTTER PIN Price: $3.99 |
| 160 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 165 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $2.99 |
| 166 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $2.99 |
| 167 |
532405257 |
LATCH.BRAKE.SPRING Price: $2.99 |
| 172 |
583974201 |
STRAP.TORQUE.VARIATOR Price: $1.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 175 |
532415677 |
SHAFT.ASM.SHIFT.VARIATOR Price: $29.99 |
| 176 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $4.99 |
| 178 |
532197456 |
SPRING.SHIFT.GT2006 Price: $2.99 |
| 184 |
532441504 |
HANDLE.PARKING.BRAKE.LTTEX.667 Price: $5.99 |
| 185 |
872110622 |
BOLT Price: $0.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $3.99 |
| 187 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $1.99 |
| 189 |
532194317 |
BELLCRANK.GROUND.DRIVE.TEX. Price: $3.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $4.99 |
| 195 |
581504601 |
BRACKET.BRAKE.BRAKE.VAR.SD Price: $3.99 |
| 203 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $1.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $2.99 |
| 232 |
874780716 |
BOLT FIN HEX 7/16-14 X 1 Price: $2.99 |
| 233 |
532405296 |
WASHER SERRATED Price: $3.99 |
| 282 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $2.99 |
| 297 |
532420223 |
NUT.PUSH.1/4 Price: $2.99 |
| 299 |
532415683 |
BRACKET.MOUNT.IDLERS Price: $6.99 |
| 300 |
532415681 |
KEEPER.IDLERS.REAR.VARIATOR Price: $3.99 |
| 301 |
532415680 |
PULLEY.IDLER.V-GROOVE Price: $17.99 |
| 302 |
581420501 |
PULLEY.IDLER.FLAT.2" Price: $14.99 |
| 303 |
872110618 |
BOLT CARRIAGE Price: $2.99 |
| 345 |
872110606 |
BOLT Price: $2.99 |
| 373 |
581461801 |
SPACER.IDLER Price: $2.99 |
| 374 |
581475201 |
ARM.CONTROL.BRAKE Price: $3.99 |
