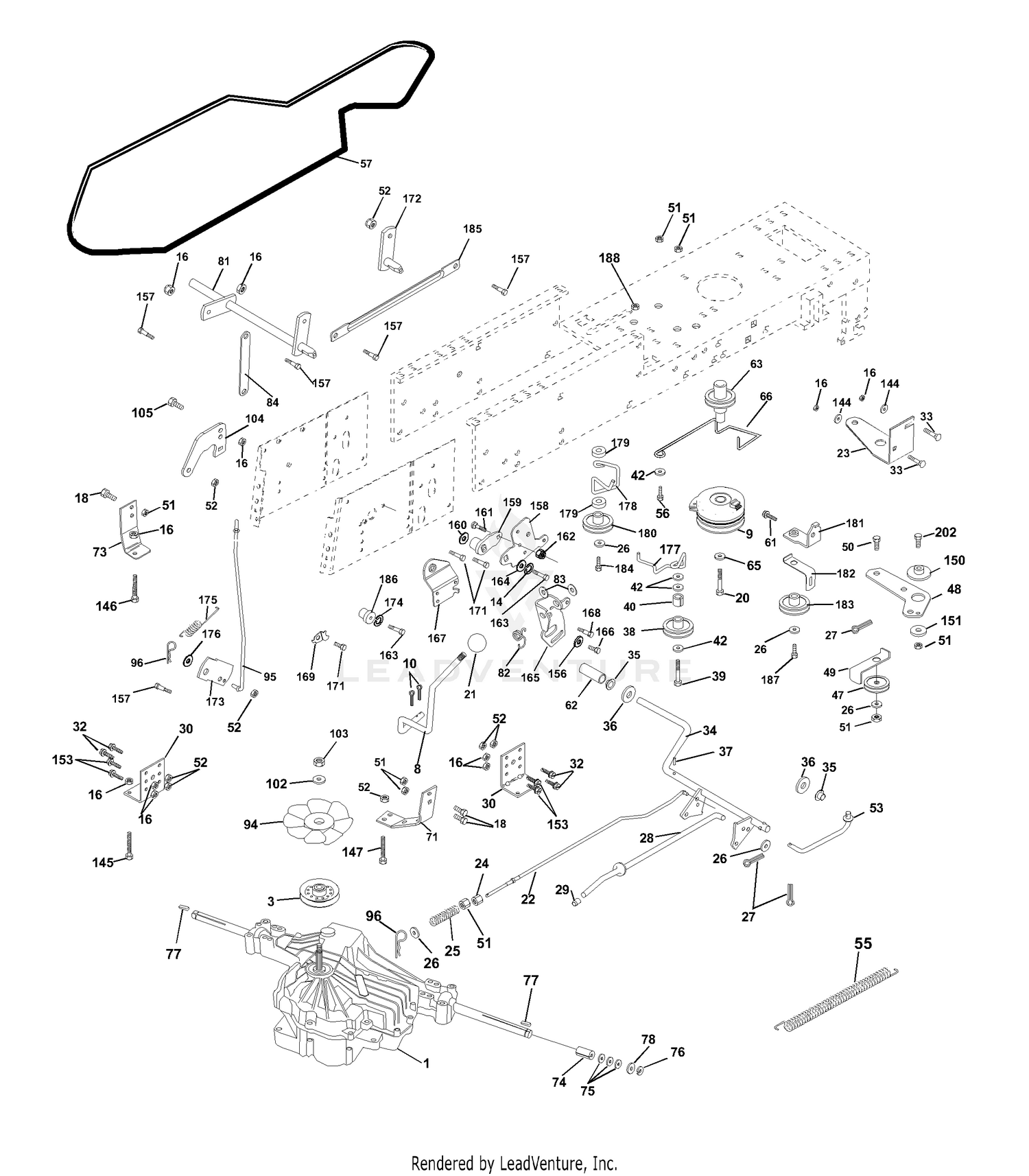

| Ref | Part Number | Description |
|---|
| 3 |
532143995 |
PULLEY, TRANSAXLE Price: $27.99 |
| 8 |
532165619 |
ROD.SHIFT.FENDER.ADJ.LT.CRD Price: $19.99 |
| 9 |
532160889 |
ELECTRIC CLUTCH This part replaces 532167162. Price: $249.99 |
| 10 |
596029601 |
Pins This part replaces 532171231. Price: $1.99 |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 532171185. Price: $2.99 |
| 18 |
596564401 |
Bolts This part replaces 532171356. Price: $3.99 |
| 20 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532150280. Price: $2.99 |
| 21 |
532121274 |
KNOB.DUCKHEAD.1/2 Price: $8.99 |
| 22 |
532165689 |
ROD This part replaces 532171161. Price: $23.36 |
| 23 |
532171258 |
BRACKET Price: $9.99 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 532171163. Price: $4.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532171164. Price: $4.99 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 532171140. Price: $2.99 |
| 27 |
596029501 |
Pins This part replaces 532171165. Price: $2.99 |
| 28 |
532145204 |
ROD BRAKE PARK LT This part replaces 532171166. Price: $3.12 |
| 29 |
532171673 |
Cap, Parking Brake Price: Call Us |
| 30 |
532130807 |
BRACKET TRANSAXLE Price: $3.99 |
| 33 |
595901601 |
GSPW Bolts This part replaces 532171221. Price: $2.99 |
| 34 |
532165496 |
SHAFT Price: $30.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
596933401 |
Washers This part replaces 532171368. Price: $2.99 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
532165936 |
PULLEY.FLAT Price: $22.99 |
| 39 |
872110622 |
BOLT This part replaces 532171247. Price: $3.99 |
| 40 |
532124965 |
SPACER T Price: $3.99 |
| 42 |
596134901 |
GSPH This part replaces 532171151. Price: $2.99 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
596136101 |
GSPW Bolts This part replaces 532171180. Price: $2.99 |
| 51 |
596322601 |
Nuts This part replaces 532171168. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 532171026. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
874760620 |
BOLT This part replaces 532171187. Price: $4.99 |
| 57 |
532165632 |
V-BELT.0650.CRD.TRACTOR Price: $64.99 |
| 61 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 532171167. Price: $3.99 |
| 62 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 63 |
532145868 |
PULLEY, CLUTCH ELECT EVX Price: $69.99 |
| 65 |
596238901 |
Washers This part replaces 532171220. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 71 |
532140158 |
STRAP LH TORQUE Price: $5.99 |
| 73 |
532156347 |
STRAP TORQUE RH HYDRO Price: $4.99 |
| 74 |
532121199 |
SPACER SPLIT This part replaces 532171381. Price: $3.12 |
| 75 |
532121749 |
WASHER This part replaces 532171038. Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 81 |
532165585 |
SHAFT Price: $27.99 |
| 82 |
532123782 |
SPRING,TORSION Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 532171230. Price: $3.99 |
| 84 |
532165629 |
LINK TRANSAXLE Price: $4.99 |
| 94 |
532140462 |
FAN 7" HYDRO Price: $9.99 |
| 95 |
532165935 |
BYPASS CONTROL ASM This part replaces 532171158. Price: $17.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532171160. Price: $4.99 |
| 102 |
532141322 |
WASHER This part replaces 532171127. Price: $3.99 |
| 103 |
873940800 |
NUT.HEX.1/2-20 This part replaces 532171128. Price: $3.99 |
| 104 |
532140156 |
CONTROL ARM Price: $4.99 |
| 105 |
871070516 |
SCREW This part replaces 532171131. Price: $3.99 |
| 144 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. This part replaces 532171222. Price: $5.99 |
| 145 |
596136501 |
Bolts This part replaces 532171153. Price: $3.99 |
| 146 |
874490536 |
BOLT This part replaces 532171157. Price: $4.99 |
| 147 |
874490524 |
Bolt hex Flghd 5/16-18 x 1-1/2 This part replaces 532171155. Price: $2.42 |
| 150 |
532165850 |
BUSHING.BELLCRANK.GRD.DR Price: $4.99 |
| 151 |
596135501 |
Washers This part replaces 532171179. Price: $4.99 |
| 153 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 532171142. Price: $3.99 |
| 156 |
596218801 |
Washers This part replaces 532171233. Price: $1.99 |
| 157 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171130. Price: $2.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $5.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532165494. Price: $5.99 |
| 160 |
819292016 |
Washer 29/32 x 1-1/4 x 16 Gauge This part replaces 532171182. Price: $6.99 |
| 161 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 532171183. Price: $3.99 |
| 162 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532171184. Price: $3.99 |
| 163 |
596230901 |
Screws This part replaces 532171186. Price: $2.99 |
| 164 |
819091010 |
Washer 5/8 x .281 x 10 Ga This part replaces 532171172. Price: $3.15 |
| 165 |
531149501 |
SERVICE KIT BRACKET BRACKET.PI This part replaces 532165623. Price: $4.99 |
| 166 |
532166880 |
SCREW This part replaces 532171234. Price: $4.99 |
| 167 |
532165588 |
BRACKET.SUPT.SHIFT.CRD Price: $17.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X This part replaces 532171232. Price: $8.99 |
| 169 |
532165580 |
PLATE.FASTENING.CROSS.SHAFT Price: $5.99 |
| 172 |
532165587 |
SHAFT Price: $12.99 |
| 173 |
532165934 |
BRACKET Price: $5.99 |
| 174 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 532171135. Price: $2.99 |
| 175 |
532165931 |
SPRING.BYPASS.CRD Price: $3.99 |
| 176 |
819070816 |
Washer 7/32 x 1/2 x 16 Gauge This part replaces 532171159. Price: $5.99 |
| 177 |
532165932 |
KEEPER Price: $6.99 |
| 178 |
532165933 |
KEEPER Price: $3.99 |
| 179 |
532120958 |
WASHER Price: $5.99 |
| 180 |
532165630 |
PULLEY.FLAT.IDLER Price: $27.99 |
| 181 |
532165797 |
BRKT.IDLER.GRD.DR.CRD Price: $2.99 |
| 182 |
529846301 |
SERVICE KIT KEEPER.BELT.2.5".V This part replaces 532165634. Price: $5.99 |
| 183 |
532165626 |
PULLEY.V-IDLER Price: $29.99 |
| 184 |
596564005 |
BOLT This part replaces 532171171. Price: $8.99 |
| 185 |
532165541 |
LINK Price: $5.99 |
| 186 |
532165614 |
HUB.TAPERED.ROUND.CRD Price: $4.99 |
| 187 |
817060620 |
SCREW.3/8-16 This part replaces 532171173. Price: $5.99 |
| 188 |
532009151 |
SNAP BUSHING T This part replaces 532110436. Price: $2.99 |
| 190 |
596564001 |
Bolts This part replaces 532171181. Price: $2.99 |
| 191 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171352. Price: $2.99 |
| 192 |
596040501 |
Hardware This part replaces 532171248. Price: $2.99 |
| 193 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 532171358. Price: $3.99 |
