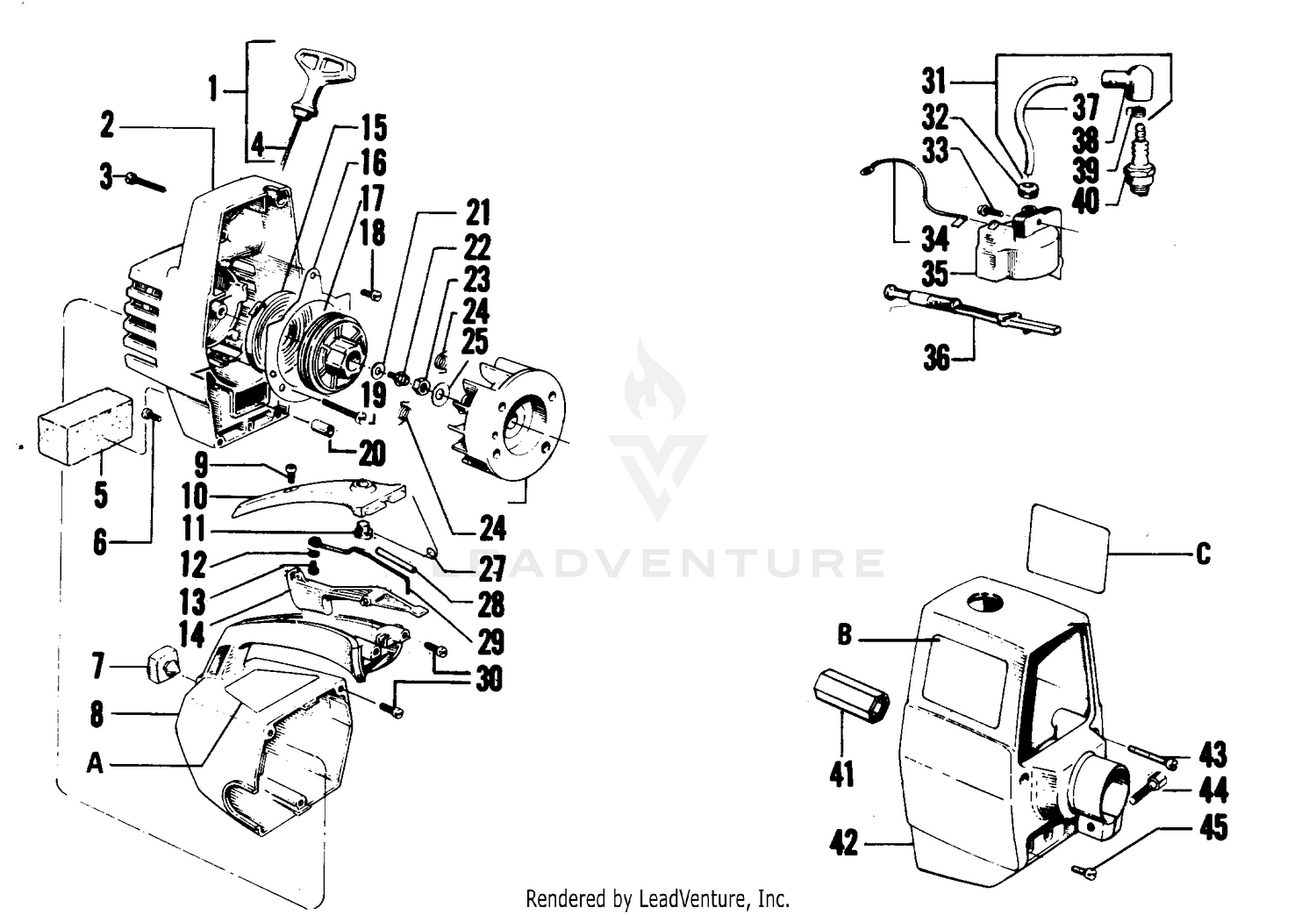

| Ref | Part Number | Description |
|---|
| A |
530026442 |
Decal - Starting Instructions Price: $3.33 |
| B |
530025334 |
Decal - Shroud (Right) Price: $3.33 |
| 1 |
353-697 |
STEM Price: $39.09 |
| 2 |
36-9740 |
DISCONTINUED Price: Call Us |
| 2 |
530069178 |
Fan Hsg. Kit (Inc.16, 18, 19, 20, & 28) Price: $39.99 |
| 3 |
38-2770 |
DISCONTINUED Price: Call Us |
| 4 |
324-6 |
SCREW-HH Price: $0.81 |
| 4 |
530022290 |
Rope (3.5 ft.) Price: $0.28 |
| 5 |
3253-22 |
WASHER-LOCK This part replaces 3253-26. Price: $2.09 |
| 5 |
530024371 |
Air Filter Price: $2.99 |
| 6 |
353-695 |
DISCONTINUED Price: Call Us |
| 7 |
325-2 |
SCREW-HH Price: $1.02 |
| 7 |
530024436 |
Bumper - Fuel Tank Housing Price: $1.99 |
| 8 |
325-7 |
SCREW-HH Price: $1.53 |
| 8 |
530024656 |
Handle & Fuel Tank Housing Price: $3.33 |
| 9 |
2412-71 |
CLAMP-R Price: $6.11 |
| 9 |
530015247 |
Screw - #8 - 16 x 3/4" - Pan Hd. - Handle Cover Price: $1.99 |
| 10 |
3217-9 |
NUT-HH Price: $0.37 |
| 10 |
530024661 |
Handle Cover Price: $3.33 |
| 11 |
37-7550 |
DISCONTINUED Price: Call Us |
| 11 |
530026679 |
Button - Kill Switch Price: $3.33 |
| 12 |
32146-13 |
NUT-HEX Price: $3.49 |
| 12 |
530015412 |
Washer - Kill Switch Price: $3.33 |
| 13 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 13 |
530015407 |
Screw - #8 - 16 x 3/8" - Pan Hd. - Kill Switch Price: $0.56 |
| 14 |
3212-8 |
SCREW-HH Price: $5.69 |
| 14 |
530024365 |
Trigger - Throttle Price: $3.33 |
| 15 |
37-2520 |
DISCONTINUED Price: Call Us |
| 16 |
37-2370 |
SUCT HOSE PUMP INLET Price: $95.77 |
| 16 |
530026035 |
Air Baffle Price: $2.99 |
| 17 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 18 |
353-698 |
FLANGE Price: $372.05 |
| 19 |
325-6 |
SCREW-HH Price: $1.42 |
| 20 |
237-116 |
O-RING Price: $8.42 |
| 20 |
530026122 |
Spacer - Air Baffle Price: $1.99 |
| 21 |
36-9840 |
DISCONTINUED Price: Call Us |
| 21 |
530015123 |
Washer - Starter Pulley Price: $1.99 |
| 22 |
353-696 |
DISCONTINUED Price: Call Us |
| 23 |
37-2590 |
DISCONTINUED Price: Call Us |
| 23 |
530626605 |
Nut - Flywheel - #5/16 x 24" Price: $1.99 |
| 24 |
237-71 |
O-RING Price: $7.61 |
| 24 |
530023817 |
Spring-Starter Dog This part replaces 530042059. Price: $1.99 |
| 25 |
530015127 |
Washer #10 -14 - Flywheel Price: $1.99 |
| 26 |
530039114 |
Flywheel Assembly (Inc.24) Price: Call Us |
| 27 |
530024461 |
Trigger Spring Price: $2.99 |
| 28 |
530021036 |
Insulation - Switch Spring Price: $3.33 |
| 29 |
530024407 |
Spring - Kill Switch Price: $1.99 |
| 30 |
530015814 |
Screw-Line Limiter This part replaces 530015367. Price: $1.99 |
| 31 |
502039103 |
High Tension Lead Assembly (Inc.37,38,39) Price: $219.99 |
| 32 |
530024435 |
Grommet - Plug Wire Price: $1.99 |
| 33 |
530015816 |
Screw This part replaces 530015128. Price: $1.99 |
| 34 |
530024158 |
Lead Wire - Switch Price: $4.99 |
| 35 |
530069181 |
Kit - Ignition Module Price: $3.33 |
| 36 |
530024303 |
Knob - Choke Price: $5.99 |
| 37 |
530039082 |
High Tension Lead Wire Price: Call Us |
| 38 |
530003934 |
Boot - Spark Plug Price: Call Us |
| 39 |
507475326 |
Spark Plug Boot This part replaces 530003933. Price: $3.99 |
| 40 |
530030077 |
Spark Plug Price: $2.27 |
| 41 |
530093694 |
Coupling - Hex Drive Price: $3.33 |
| 42 |
530011778 |
Shroud Price: $3.33 |
| 43 |
530015376 |
Screw - #10 - 24 x 1-1/3" - Fil. Hd. - Shroud (Top) Price: $3.33 |
| 44 |
530625509 |
Bolt - Pinch Clamp Price: $1.99 |
| 45 |
530015168 |
Screw - #10 - 24 x 5/8" - Fil Hd. - Shroud (Bottom) Price: $1.46 |
