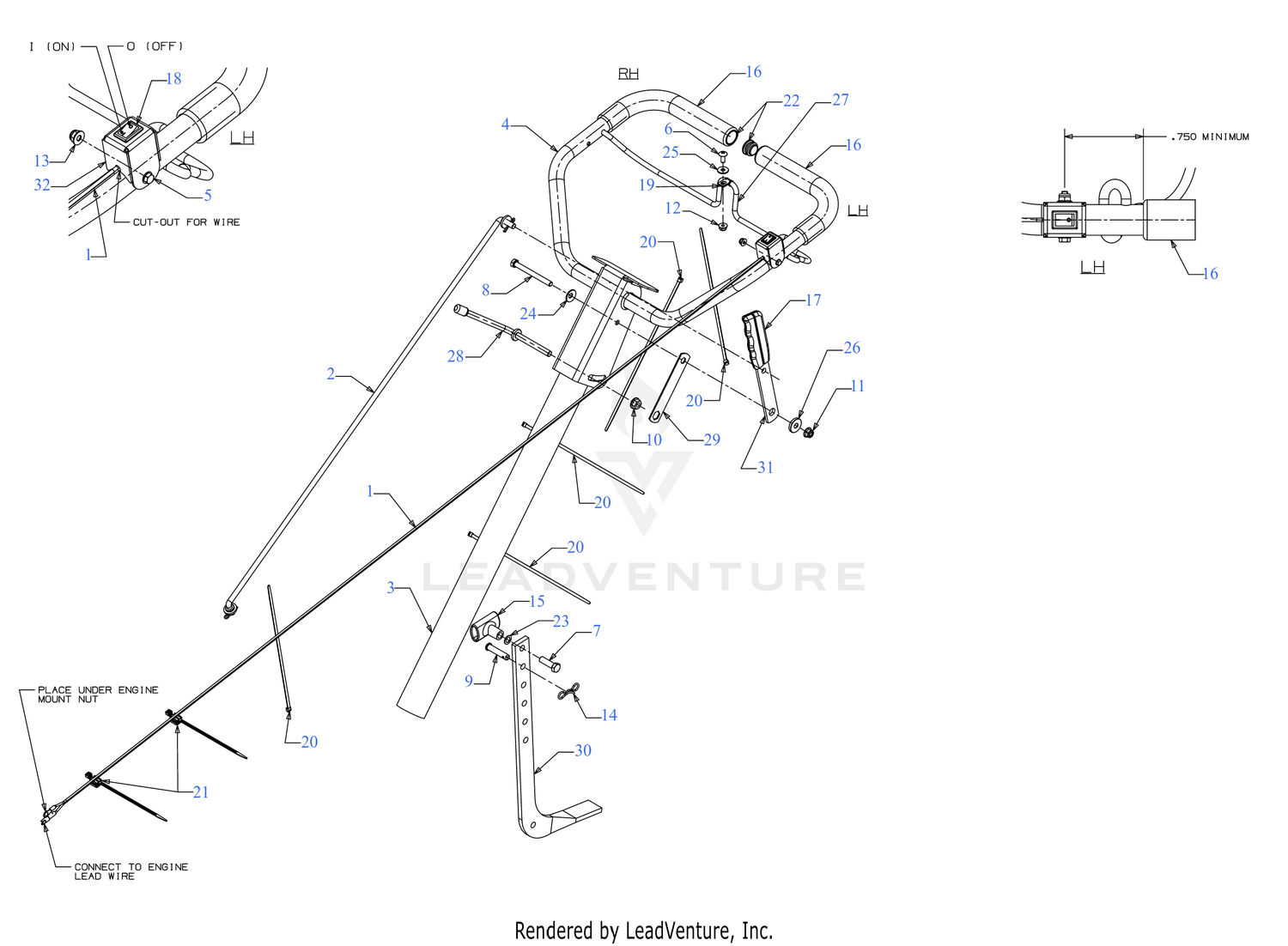

| Ref | Part Number | Description |
|---|
| 1 |
629-05045 |
HARNESS ASSEMBLY Price: $17.57 |
| 2 |
747-1152 |
SHIFT ROD Price: $40.30 |
| 5 |
710-06774 |
SCREW HEX HD WASHER (#10-32 x 1.50) Price: $3.33 |
| 6 |
710-0946 |
SCREW 1/4-20 x .625 Price: $3.24 |
| 7 |
710-3005 |
SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 8 |
710-3056 |
SCREW 5/16-18 x 3.25 GR5 Price: $8.82 |
| 9 |
711-0415 |
Clevis Pin This part replaces 911-0415. Price: $4.04 |
| 10 |
712-0379 |
FLANGE HEX NUT Price: $4.02 |
| 11 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 12 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 13 |
712-04113 |
HEX NUT Price: $4.69 |
| 14 |
714-04043 |
PIN:COTTER Price: $4.24 |
| 15 |
720-0210A |
THROTTLE KNOB Price: $13.38 |
| 16 |
720-0278A |
FOAM GRIP .970 x 11.0 Price: $20.10 |
| 17 |
720-0313 |
GRIP Price: $17.16 |
| 18 |
725-05292 |
POSITIVE SWITCH- ON/OFF Price: $5.59 |
| 19 |
726-0273 |
MOUNTING CLAMP Price: $6.24 |
| 20 |
726-04047 |
CABLE TIE Price: $3.18 |
| 21 |
726-05132 |
CABLE TIE .05 X .18 X 7.32 Price: $3.13 |
| 22 |
735-04105A |
END PLUG Price: $4.83 |
| 25 |
736-3090 |
FLAT WASHER Price: $5.79 |
| 26 |
938-0958 |
SHOULDER SPACER Price: $3.70 |
| 27 |
747-1219A |
CLUTCH BAIL Price: $24.96 |
| 28 |
784-0190 |
CRANK Price: $21.49 |
| 29 |
784-0191 |
RETAINER BRACKET Price: $6.84 |
| 30 |
786-0120-0637 |
DEPTH BAR ASSEMBLY Price: $58.29 |
