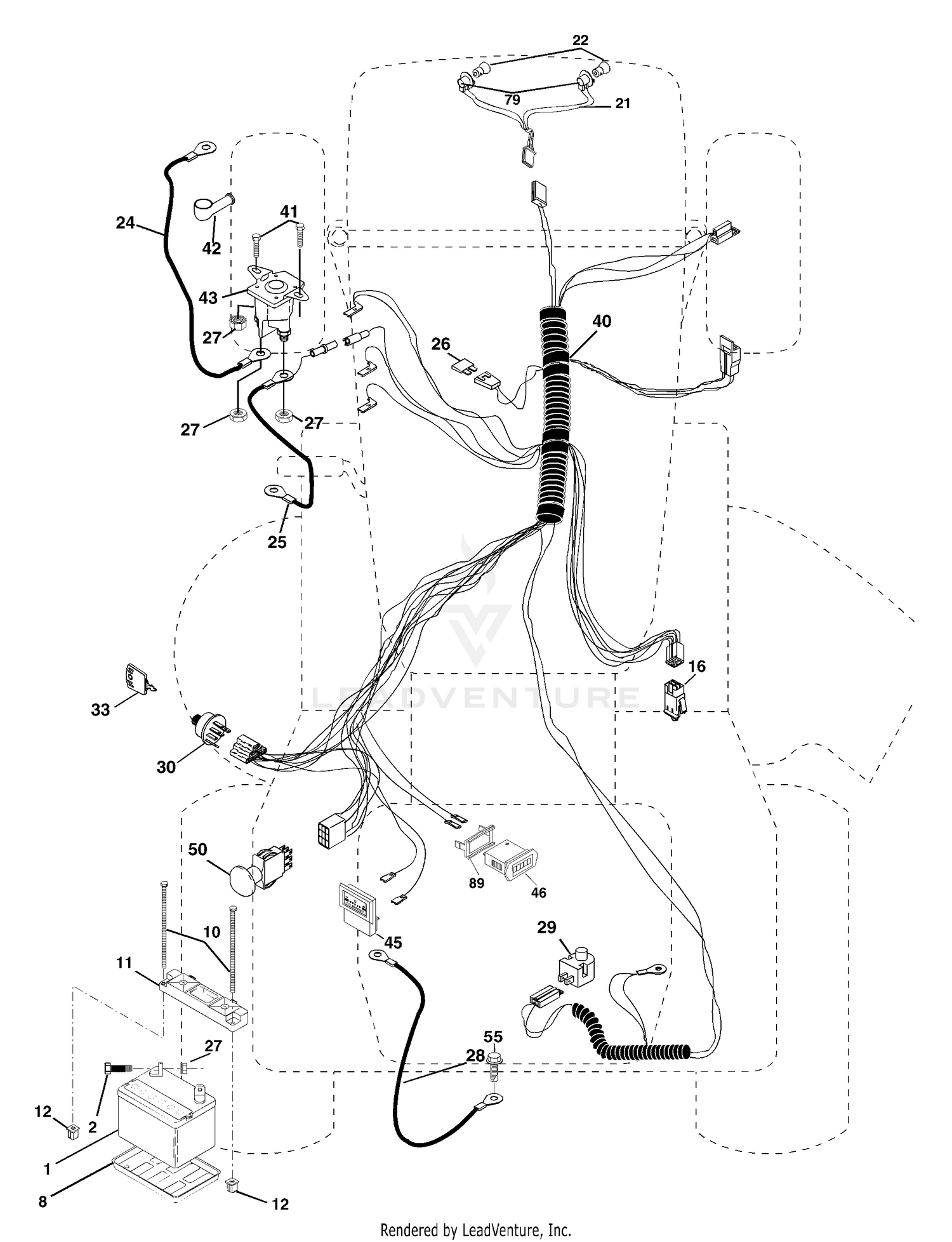

| Ref | Part Number | Description |
|---|
| 1 |
144927 |
Battery Price: Call Us |
| 1 |
340-15 |
FITTING-ELBOW 90 Price: $47.39 |
| 2 |
74760412 |
Bolt Hex Hd 1/4-20 unc x 3/4 Price: Call Us |
| 3 |
106-0327 |
NUT-HEX Price: $0.41 |
| 4 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 5 |
106-0325 |
DRIVESHAFT Price: $1,517.02 |
| 6 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 7 |
99-6058 |
SCREW-CAP Price: $1.09 |
| 8 |
26-0670 |
SCREW-BLADE Price: $3.65 |
| 8 |
7603J |
Tray, Battery Price: Call Us |
| 9 |
325-9 |
SCREW-HH Price: $1.87 |
| 10 |
145211 |
Bolt, BTR FRT 1/4-20 x 7.5 Price: Call Us |
| 10 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 11 |
150109 |
Hold Down Battery, Front Price: Call Us |
| 11 |
3217-9 |
NUT-HH Price: $0.37 |
| 12 |
145769 |
Nut, Push, Nylon Price: Call Us |
| 12 |
340-131 |
FITTING-HYD, 90 DEG Price: $99.83 |
| 13 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 14 |
100-6175 |
SWITCH Price: $225.00 |
| 15 |
108-1511-03 |
BRACKET-SWITCH Price: $41.44 |
| 16 |
176138 |
Switch Interlock Push-In Price: Call Us |
| 16 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 17 |
32127-11 |
NUT-LOCK Price: $1.60 |
| 18 |
108-1526 |
HARNESS-WIRE Price: $178.63 |
| 19 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 20 |
69-9020 |
NUT-SPECIAL Price: $13.84 |
| 21 |
175688 |
Harness Asm Light W/Bulbs Price: Call Us |
| 21 |
3231-30 |
SCREW-CARR Price: $4.27 |
| 22 |
4152J |
Bulb Light Price: Call Us |
| 22 |
69-9040-03 |
CAM-DEVICE, NEUTRAL Price: $26.07 |
| 23 |
321-4 |
SCREW-HH Price: $0.99 |
| 24 |
251-259 |
BEARING-BALL This part replaces 251-307. Price: $13.67 |
| 24 |
8860R |
Cable Battery Price: Call Us |
| 25 |
146148 |
Cable Batterywire Price: Call Us |
| 26 |
110-9650 |
LEAF SPRING ASM Price: $33.06 |
| 26 |
175158 |
Fuse Price: Call Us |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 28 |
145491 |
Cable Ground Price: Call Us |
| 28 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 29 |
121305X |
Switch Plunger Normal NC Gray Price: Call Us |
| 29 |
51-3150 |
SHIM-ARM, SPRING Price: $5.24 |
| 30 |
175566 |
Switch Ign 4 pos w/lights Price: Call Us |
| 30 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 31 |
108-1536 |
BRACKET-MOUNT, SPRING Price: $43.13 |
| 32 |
32152-4 |
NUT-LOCK, CONE Price: $1.29 |
| 33 |
108-1537 |
SPACER-BAR Price: $95.52 |
| 33 |
140401 |
Key Ign Price: Call Us |
| 35 |
321-10 |
SCREW-HH Price: $1.29 |
| 37 |
105-0583-03 |
GUARD-DRIVESHAFT Price: $57.61 |
| 38 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 39 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 40 |
188031 |
Harness Ign. Price: Call Us |
| 40 |
340-130 |
FITTING-ELBOW 90 Price: $99.83 |
| 41 |
107-1136 |
HOSE ASM Price: $101.84 |
| 41 |
17720408 |
Bolt Blk Fin Hex 1/4-20 x 1/2 Price: Call Us |
| 42 |
131563 |
Cover Terminal Red Price: Call Us |
| 42 |
340-105 |
FITTING-ELBOW, 90 DEG Price: $39.67 |
| 43 |
178861 |
Solenoid Price: Call Us |
| 45 |
122822X |
Ammeter Rectangular Price: Call Us |
| 46 |
169635 |
Hourmeter Snap-In Price: Call Us |
| 50 |
174653 |
Switch, PTO Price: Call Us |
| 55 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 79 |
175242 |
Bulbholder Price: Call Us |
