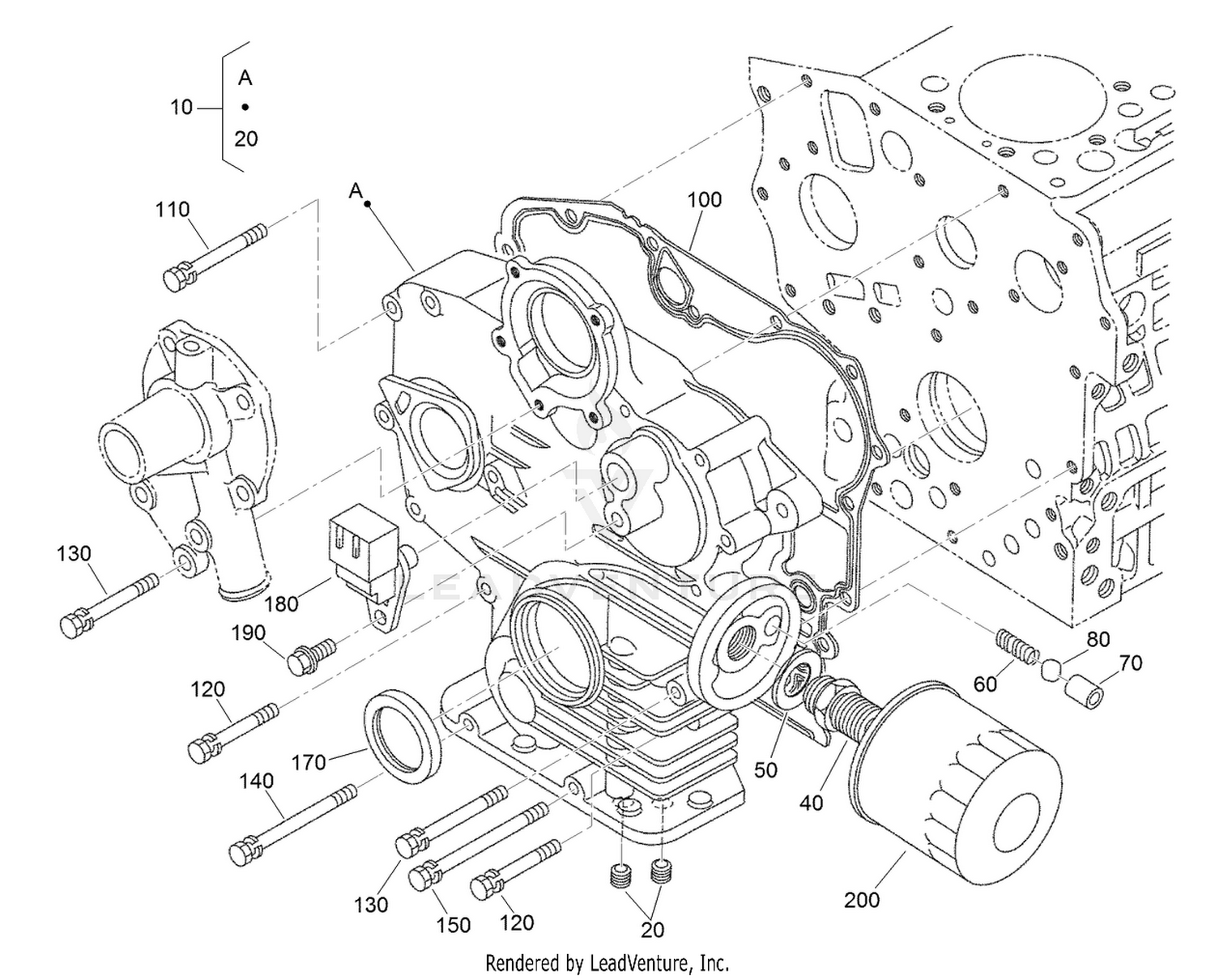

Gear Case and Oil Filter Cartridge Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 125-9151 | GEAR CASE ASM Price: $530.64 |
| 20 | 98-7488 | PLUG Price: $2.74 |
| 40 | 98-9388 | JOINT-PIPE Price: $31.66 |
| 50 | 100-1926 | WASHER-PLAIN Price: $1.58 |
| 60 | 100-2004 | SPRING Price: $12.18 |
| 70 | 100-1894 | SEAT-VALVE Price: $10.58 |
| 80 | 100-1792 | BALL Price: $1.31 |
| 100 | 117-0327 | GASKET-CASE, GEAR Price: $49.99 |
| 110 | 99-8320 | BOLT Price: $0.94 |
| 120 | 98-9356 | BOLT Price: $2.06 |
| 130 | 100-1922 | BOLT Price: $2.05 |
| 140 | 98-9357 | BOLT Price: $2.46 |
| 150 | 110-3710 | BOLT Price: $2.70 |
| 170 | 120-7852 | SEAL-OIL Price: $40.17 |
| 180 | 125-9142 | SENSOR Price: $145.77 |
| 190 | 99-8363 | BOLT-FLANGE Price: $1.66 |
