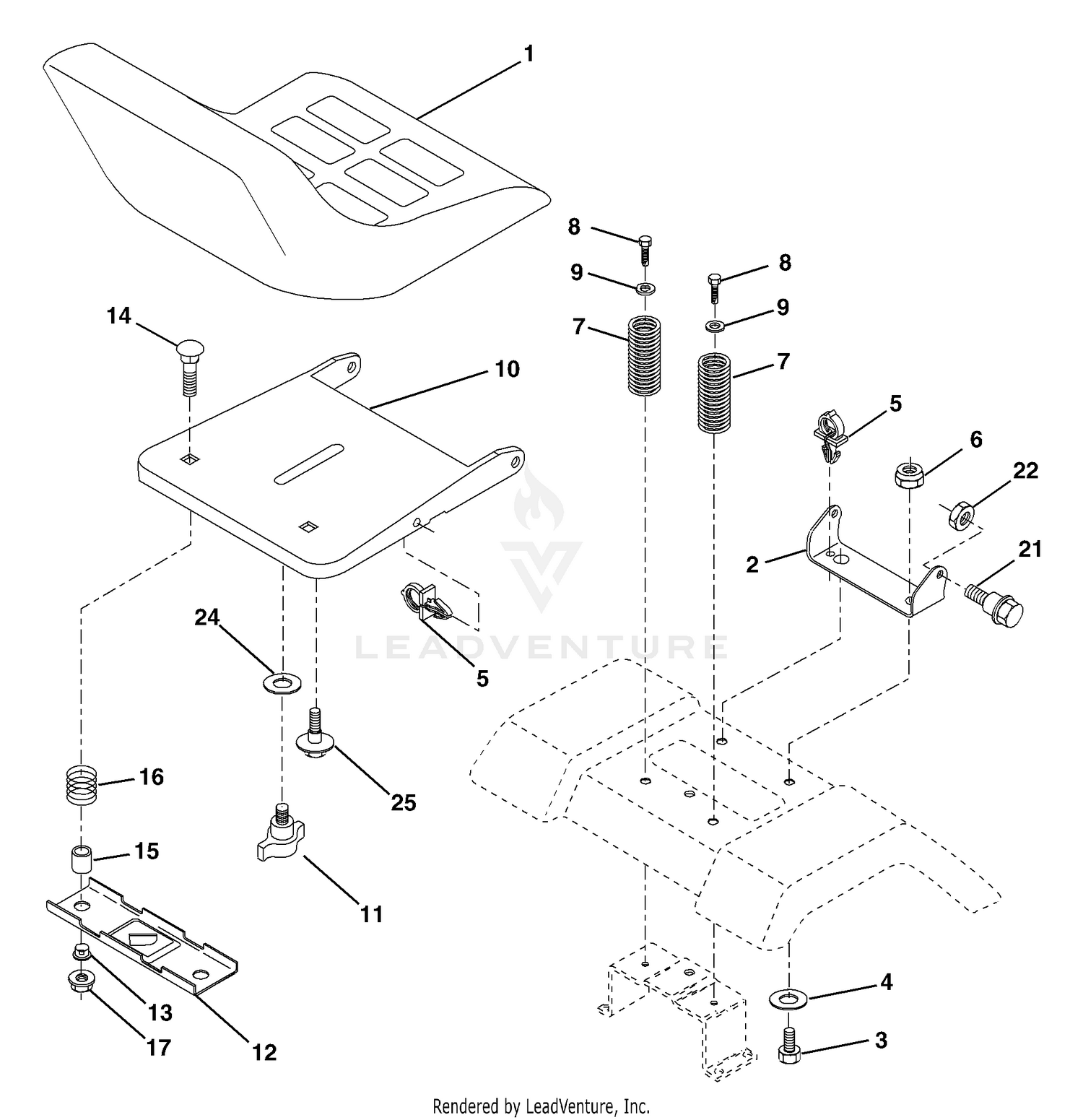

| Ref | Part Number | Description |
|---|
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532184991. Price: $149.99 |
| 1 |
93-9404 |
DECAL-ONLY, COOLANT Price: $17.21 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 |
92-5655 |
TUBE-CANOPY Price: $15.47 |
| 3 |
58-3930 |
BUSHING-OILITE Price: $15.24 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
58-5330 |
SPACER-HINGE, CANOPY Price: $21.23 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 5 |
58-1970-01 |
PLATE-HINGE, LEFT Price: $199.89 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 6 |
92-6086 |
REAR SCREEN ASM Price: $2,609.76 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
92-5253 |
STRIP-SEALING Price: $59.20 |
| 8 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
58-3910 |
PIN-HINGE, CANOPY Price: $70.69 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 10 |
77-3620 |
KNOB-RETAINER Price: $15.13 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 11 |
93-6680 |
DECAL-DIESEL Price: $19.31 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 12 |
86-6130 |
BALL-STUD Price: $7.46 |
| 13 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 15 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 16 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 17 |
88-6760 |
SPRING-GAS Price: $143.68 |
| 18 |
92-5270-01 |
Baffle-Lower Body Price: Call Us |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
3250-25 |
SCREW-PPH Price: $0.23 |
| 21 |
3253-2 |
WASHER-LOCK Price: $0.25 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
58-5380 |
LATCH-DRAW Price: $43.60 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 23 |
58-7070-03 |
SPACER-LATCH, RH Price: $17.58 |
| 24 |
322-3 |
SCREW-HH Price: $0.79 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
3250-31 |
SCREW-PPH Price: $0.25 |
| 26 |
68-6040 |
BRACKET Price: $13.03 |
| 27 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 28 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 29 |
3296-27 |
NUT-LOCK, NI Price: $0.27 |
| 30 |
92-5681 |
FOAM-HOOD, LH Price: $187.22 |
| 31 |
98-3822 |
DECAL Price: $78.44 |
| 32 |
92-4713 |
CANOPY-FRONT Price: $3,149.95 |
| 33 |
92-5673-03 |
SUPPORT-FOAM, FRONT Price: $46.11 |
| 34 |
92-5679 |
FOAM-HOOD, FRONT Price: $166.50 |
| 35 |
92-5672-03 |
SUPPORT-FOAM, CANOPY Price: $198.05 |
| 36 |
92-5678 |
FOAM-HOOD, TOP Price: $239.26 |
| 37 |
33024-00 |
NUT-LOCK, NI This part replaces 48-9510. Price: $0.75 |
| 38 |
92-5652-03 |
BRACKET Price: $10.46 |
| 39 |
92-6060 |
STRIP-SEALING Price: $59.20 |
| 40 |
33114-025 |
SCREW-HH Price: $0.70 |
| 41 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 42 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 43 |
94-8241 |
CANOPY-CENTER Price: $1,863.87 |
| 44 |
322-4 |
SCREW-HH Price: $0.35 |
| 45 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 46 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 47 |
321-2 |
SCREW-HH Price: $2.79 |
| 48 |
32122-42 |
SCREW Price: $1.69 |
| 49 |
94-8226-03 |
BRACKET-CLEANER, AIR Price: $55.22 |
| 50 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 51 |
321-3 |
SCREW-HH Price: $0.28 |
| 52 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 54 |
98-1293-01 |
Bracket Price: Call Us |
