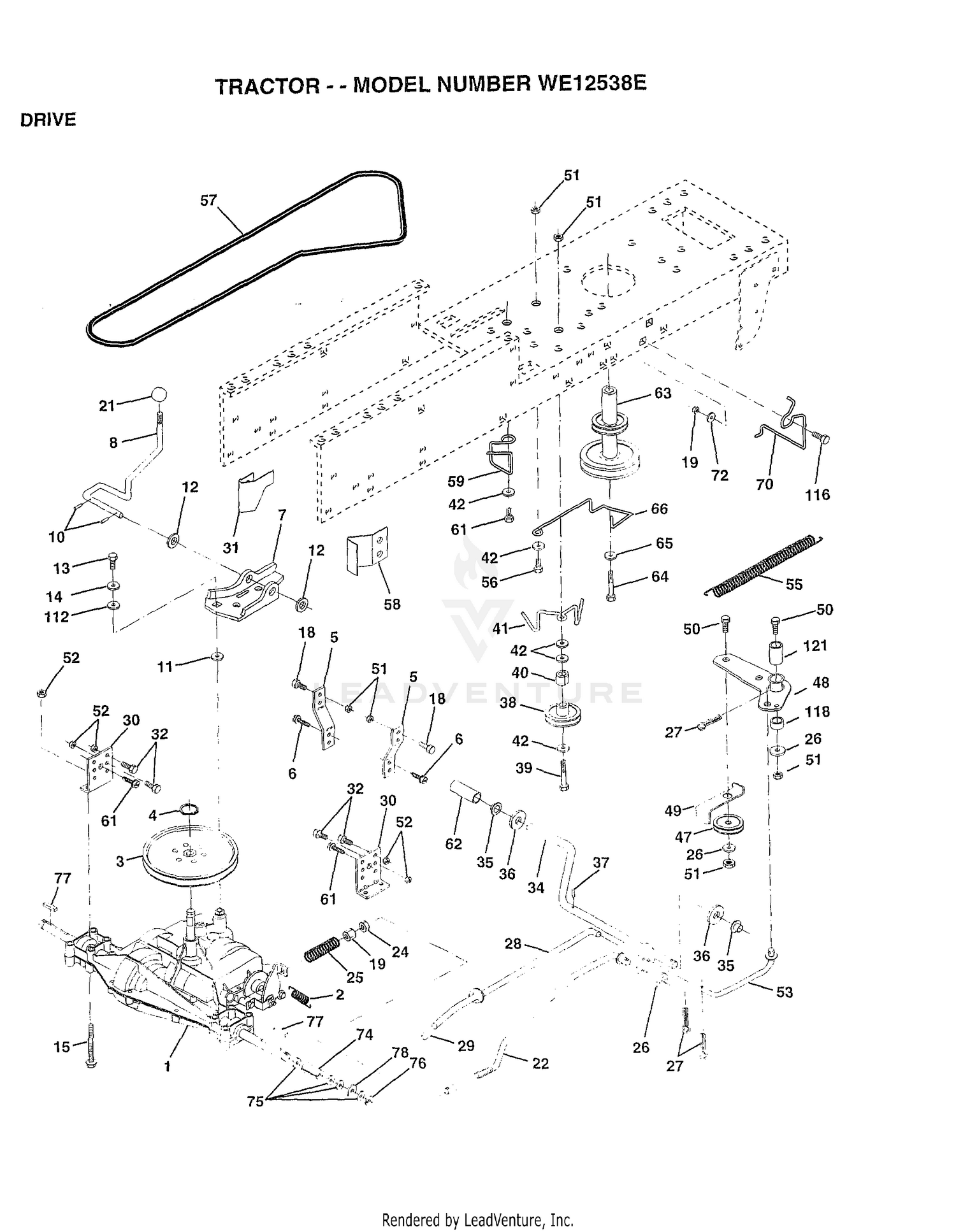

| Ref | Part Number | Description |
|---|
| 1 |
95-1821 |
SPRING-COMPRESSION This part replaces 95-1821-03. Price: $6.71 |
| 2 |
146682 |
SPRING.BRAKE.RETU Price: Call Us |
| 2 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 3 |
123666X |
PULLEY TRANS Price: Call Us |
| 3 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 4 |
12000028 |
SUB= 2267J Price: Call Us |
| 4 |
21-2850-01 |
MOUNT-PEDAL, RH Price: $69.64 |
| 5 |
121520X |
STRAP TORQUE Price: Call Us |
| 5 |
3218-5 |
NUT-JAM Price: $0.27 |
| 6 |
17490512 |
SCREW Price: Call Us |
| 6 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 7 |
130802 |
SUB= 162240 Price: Call Us |
| 7 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 8 |
131679 |
SHIFT ROD Price: Call Us |
| 8 |
233-17 |
KNOB Price: $10.58 |
| 9 |
82-8670 |
ROD-LATCH, BRAKE Price: $61.33 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 10 |
94-3307 |
PAD-PEDAL, TRACTION Price: $12.11 |
| 11 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 11 |
323-15 |
SCREW-HH Price: $1.53 |
| 12 |
19151216 |
WASHER Price: Call Us |
| 12 |
88-1720 |
PAD-FOOTREST Price: $5.27 |
| 13 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 13 |
74550412 |
BOLT.1/4-28.W/PAT Price: Call Us |
| 14 |
10040400 |
LOCKWASHER Price: Call Us |
| 14 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 15 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 15 |
74490544 |
BOLT.HX.FLG.5/16 Price: Call Us |
| 16 |
88-1710-01 |
FOOTREST ASM Price: $62.29 |
| 17 |
88-1680-01 |
BRACKET-FOOTREST Price: $17.86 |
| 18 |
3220-5 |
NUT-JAM Price: $0.65 |
| 18 |
74780616 |
BOLT Price: Call Us |
| 19 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 19 |
73800600 |
NUT Price: Call Us |
| 20 |
3220-3 |
NUT-HJ Price: $0.28 |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 21 |
32128-25 |
NUT-HF Price: $3.19 |
| 22 |
130804 |
BRAKE ROD Price: Call Us |
| 22 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 23 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 24 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 24 |
73350600 |
NUT Price: Call Us |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 25 |
88-1650 |
SHAFT-PEDAL, TRACTION Price: $55.18 |
| 26 |
19131316 |
WASHER Price: Call Us |
| 26 |
88-1640 |
PIN-PEDAL, TRACTION Price: $17.64 |
| 27 |
108-1380 |
LH BRAKE CABLE ASM This part replaces 21-3380. Price: $162.33 |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
108-1379 |
RH BRAKE CABLE ASM This part replaces 21-3370. Price: $162.33 |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 29 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 29 |
71673 |
PLUNGER CAP T Price: Call Us |
| 30 |
130807 |
TRANSAXLE MTG BKT Price: Call Us |
| 30 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 31 |
88-1670 |
PIVOT BRACKET ASM Price: $109.29 |
| 32 |
74760512 |
BOLT Price: Call Us |
| 32 |
88-0470 |
TUBE-SPACER, PEDAL Price: $10.25 |
| 33 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 34 |
155071 |
SHAFT ASM-PEDAL F Price: Call Us |
| 34 |
23-2240-03 |
PUMP CONTROL TUBE ASM Price: $209.72 |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 35 |
94-3304-01 |
SUPPORT-PEDAL Price: $121.34 |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 38 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 39 |
74760644 |
BOLT Price: Call Us |
| 40 |
4470J |
SPACER T Price: Call Us |
| 41 |
154777 |
SUB= 165692 Price: Call Us |
| 42 |
19131312 |
WASHER Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
154604 |
BELLCRANK ASM Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 54 |
2751R |
CLIP T Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 57 |
130801 |
SUB= 138255 Price: Call Us |
| 59 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
154778 |
KEEPER-BELT Price: Call Us |
| 70 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 72 |
19132012 |
WASHER Price: Call Us |
| 74 |
109502X |
SPACER LT Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 79 |
2228M |
SUB= 2228M1 Price: Call Us |
| 112 |
19091210 |
WASHER LT Price: Call Us |
| 116 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 118 |
154774 |
SPACER-BELLCRANK Price: Call Us |
