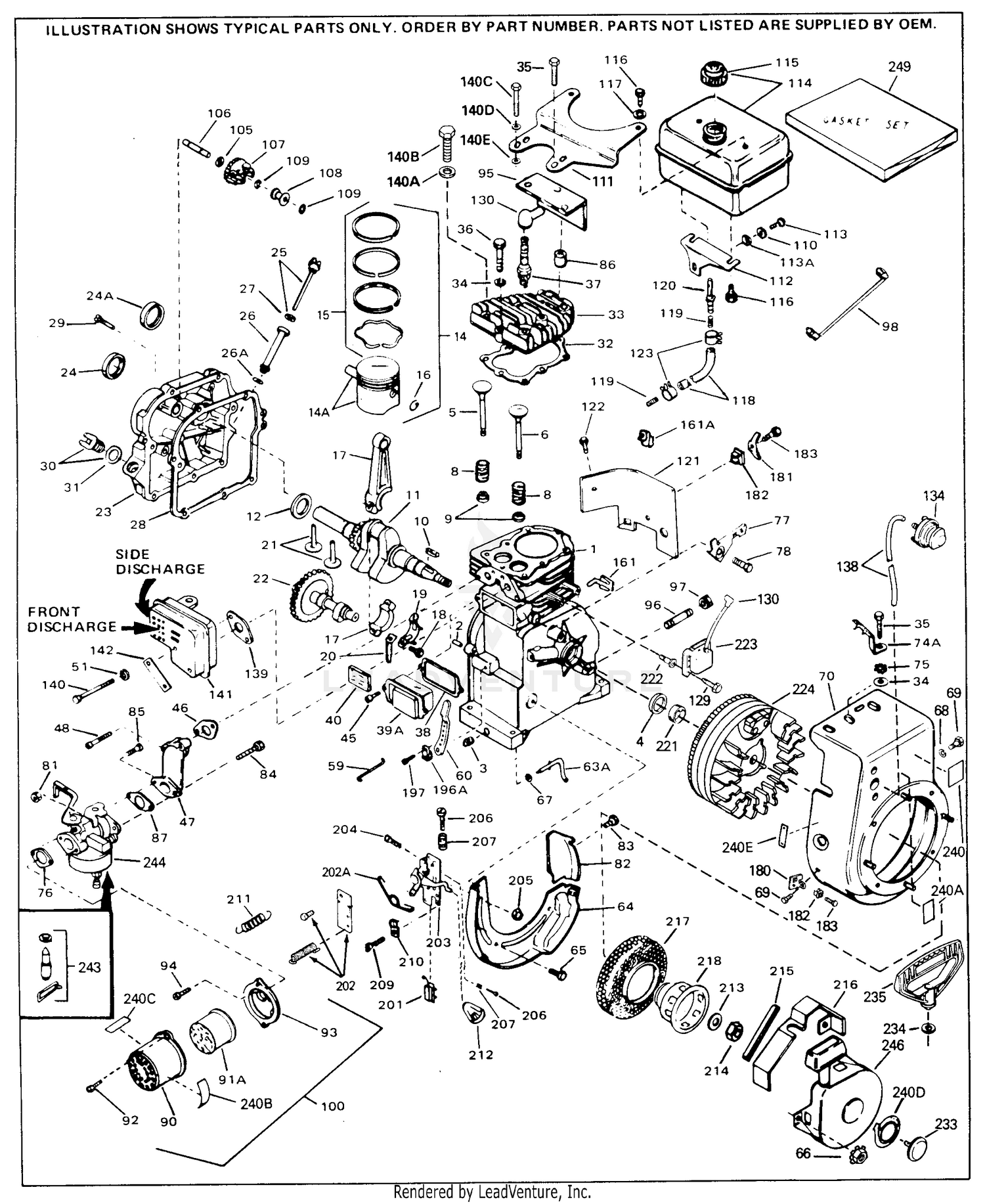

| Ref | Part Number | Description |
|---|
| 1 |
33674B |
CYLINDER Price: $162.02 |
| 2 |
26727 |
DOWEL PIN Price: $1.26 |
| 3 |
27642 |
PIPE PLUG Price: $1.26 |
| 4 |
32600 |
OIL SEAL Price: $4.80 |
| 5 |
32644A |
INT VALVE ST Price: $6.91 |
| 5 |
32645A |
INT VALVE OS Price: $43.82 |
| 6 |
29313C |
EXH VALVE STD Price: $6.23 |
| 6 |
29315C |
EX/INT VALVE OS Price: Call Us |
| 8 |
31672 |
VALVE SPRING Price: $1.26 |
| 9 |
31673 |
VALVE CAP Price: $1.23 |
| 10 |
610951 |
KEY Price: $1.17 |
| 11 |
33677A |
CRANKSHAFT Price: $107.91 |
| 12 |
32323 |
WASHER Price: $5.80 |
| 14 |
34535 |
PISTON ASSY STD Price: $54.33 |
| 14 |
34536 |
PISTON ASSY 010 Price: $60.14 |
| 14 |
34537 |
PISTON ASSY 020 Price: $59.99 |
| 14A |
33562B |
PISTON & PIN ST Price: $31.78 |
| 14A |
33563B |
PISTON & PIN 10 Price: $34.90 |
| 14A |
33564B |
PISTON & PIN 20 Price: $34.90 |
| 15 |
33568 |
RING SET 010 Price: $32.38 |
| 15 |
33569 |
RING SET 020 Price: $27.32 |
| 15 |
40004 |
PISTON ASSY STD This part replaces 33567. Price: $53.08 |
| 16 |
20381 |
RET RING Price: $1.26 |
| 17 |
32875A |
CONN ROD This part replaces 32875. Price: $33.84 |
| 18 |
32610A |
SCREW Price: $1.26 |
| 20 |
32654 |
OIL DIPPER Price: $6.40 |
| 21 |
27241 |
VALVE LIFTER Price: $3.89 |
| 22 |
37040 |
CAMSHAFT This part replaces 33158. Price: $21.67 |
| 23 |
32700B |
CYL COVER This part replaces 32700A. Price: $80.28 |
| 24 |
27897 |
OIL SEAL Price: $5.95 |
| 28 |
27677A |
GASKET Price: $5.31 |
| 29 |
650451 |
SCREW Price: $1.25 |
| 29 |
650488 |
SCREW Price: $1.25 |
| 30 |
27625 |
FILLER PLUG Price: $1.65 |
| 31 |
29673 |
GASKET Price: $1.26 |
| 32 |
36443 |
GASKET This part replaces 33554A. Price: $4.16 |
| 33 |
37675 |
CYL HEAD This part replaces 33016A. Price: $29.58 |
| 34 |
26073 |
WASHER Price: Call Us |
| 34 |
650691 |
WASHER Price: $1.25 |
| 35 |
650694A |
SCREW Price: $2.15 |
| 35 |
650818 |
SCREW Price: $2.60 |
| 35 |
650865 |
SCREW Price: $3.86 |
| 36 |
6021A |
SCREW Price: $1.26 |
| 37 |
33636 |
SPARK PLUG This part replaces 34251. Price: $5.05 |
| 38 |
31619A |
GASKET Price: $5.19 |
| 39A |
31337B |
BREATHER This part replaces 31337A. Price: $13.55 |
| 40 |
31410 |
ELEMENT Price: $1.19 |
| 45 |
650128 |
SCREW Price: $3.60 |
| 46 |
33673A |
GASKET Price: $3.95 |
| 47 |
33666 |
INTAKE PIPE Price: Call Us |
| 48 |
30646 |
SCREW Price: $6.40 |
| 59 |
32698 |
GOV LINK Price: $1.26 |
| 60 |
37735 |
LINK & LEVER This part replaces 31510. Price: $9.95 |
| 63A |
31334 |
GOVERNOR ROD Price: $3.89 |
| 64 |
36552 |
BAFFLE This part replaces 33342. Price: $6.54 |
| 65 |
650561 |
SCREW Price: $1.25 |
| 66 |
29752 |
NUT Price: $1.26 |
| 67 |
28277 |
WASHER Price: $1.26 |
| 68 |
650168 |
WASHER Price: $1.25 |
| 69 |
29716 |
SCREW This part replaces 29212. Price: $0.91 |
| 70 |
33663E |
BLOWER HSG This part replaces 33663C. Price: Call Us |
| 76 |
27272A |
GASKET Price: $1.18 |
| 77 |
34212 |
BRACKET Price: $1.26 |
| 78 |
30200 |
SCREW Price: $3.25 |
| 81 |
29752 |
NUT Price: $1.26 |
| 82 |
35883 |
EXTENSION This part replaces 33341. Price: $1.26 |
| 83 |
650701 |
SCREW Price: $1.20 |
| 84 |
6201 |
SCREW Price: $1.26 |
| 85 |
650870 |
SCREW Price: $1.20 |
| 86 |
28212 |
SPACER Price: $1.26 |
| 87 |
26756 |
Gasket Price: $2.95 |
| 90 |
31715 |
CLEANER BODY Price: $15.02 |
| 91A |
31700 |
AIR CLEANER Price: $9.95 |
| 92 |
650152 |
SCREW Price: $1.60 |
| 93 |
31914 |
BRACKET Price: $16.29 |
| 94 |
651081 |
SCREW This part replaces 28820. Price: $2.89 |
| 95 |
33344 |
BAFFLE Price: $3.79 |
| 98 |
34231 |
GROUND WIRE Price: $2.55 |
| 100 |
730127 |
AIR CLEANER Price: $33.14 |
| 105 |
651080 |
WASHER This part replaces 30590A. Price: $1.24 |
| 106 |
30574A |
GOV SHAFT This part replaces 30574. Price: $5.00 |
| 107 |
30591 |
GEAR Price: $9.93 |
| 108 |
30588A |
GOV SPOOL Price: $1.26 |
| 109 |
29193 |
RET RING Price: $1.26 |
| 111 |
36247 |
TANK BRACKET This part replaces 28371B. Price: $8.21 |
| 112 |
32762 |
TANK BRACKET Price: Call Us |
| 113 |
650561 |
SCREW Price: $1.25 |
| 114 |
35584 |
FUEL TANK Price: $28.00 |
| 115 |
33032 |
FUEL CAP This part replaces 410144B. Price: $5.31 |
| 115 |
34210 |
FUEL CAP Price: $5.77 |
| 116 |
650665 |
SCREW Price: $1.25 |
| 118 |
29774 |
FUEL LINE Price: $2.78 |
| 118 |
30795 |
TANK STRAP Price: Call Us |
| 118 |
30962 |
FUEL LINE Price: $22.04 |
| 119 |
28819 |
SPRING Price: Call Us |
| 121 |
29745 |
EXTENSION Price: $2.62 |
| 122 |
650128 |
SCREW Price: $3.60 |
| 123 |
26460 |
CLAMP Price: $1.19 |
| 129 |
650489 |
SCREW Price: Call Us |
| 130 |
610118 |
PLUG COVER Price: $4.45 |
| 139 |
35865 |
GASKET This part replaces 33670A. Price: $3.95 |
| 140 |
30063 |
SCREW Price: $1.26 |
| 140C |
650628A |
SCREW Price: $1.22 |
| 140D |
26073 |
WASHER Price: Call Us |
| 196A |
31335 |
CLAMP Price: $1.26 |
| 197 |
651018 |
SCREW This part replaces 650548. Price: $1.18 |
| 201 |
610973 |
TERMINAL Price: $2.60 |
| 203 |
36677 |
CONTROL ASSY This part replaces 33879A. Price: $29.60 |
| 204 |
30200 |
SCREW Price: $3.25 |
| 204 |
650139 |
SCREW Price: $1.25 |
| 204 |
650152 |
SCREW Price: $1.60 |
| 205 |
30322 |
NUT Price: $1.22 |
| 206 |
650688 |
SCREW Price: $2.60 |
| 206 |
651029 |
SCREW This part replaces 650549. Price: $1.22 |
| 207 |
31342 |
COMP SPRING Price: $3.95 |
| 207 |
32924 |
ADJ SPRING Price: $1.19 |
| 209 |
28942 |
SCREW Price: $0.88 |
| 210 |
27793 |
CLIP Price: $1.26 |
| 211 |
31426 |
EXT SPRING Price: $2.80 |
| 213 |
650815 |
WASHER Price: $1.25 |
| 214 |
650607 |
NUT Price: $1.20 |
| 217 |
33668 |
SCREEN Price: $5.21 |
| 218 |
33667 |
STARTER CUP Price: Call Us |
| 221 |
34080 |
SPACER Price: $1.26 |
| 222 |
651024 |
STUD This part replaces 650872. Price: $2.60 |
| 240 |
36261 |
DECAL This part replaces 34346. Price: Call Us |
| 240A |
550223 |
DECAL--Discontinued Price: Call Us |
| 243 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 244 |
631701 |
CARBURETOR Price: Call Us |
| 246 |
590420A |
STARTER Price: $42.85 |
