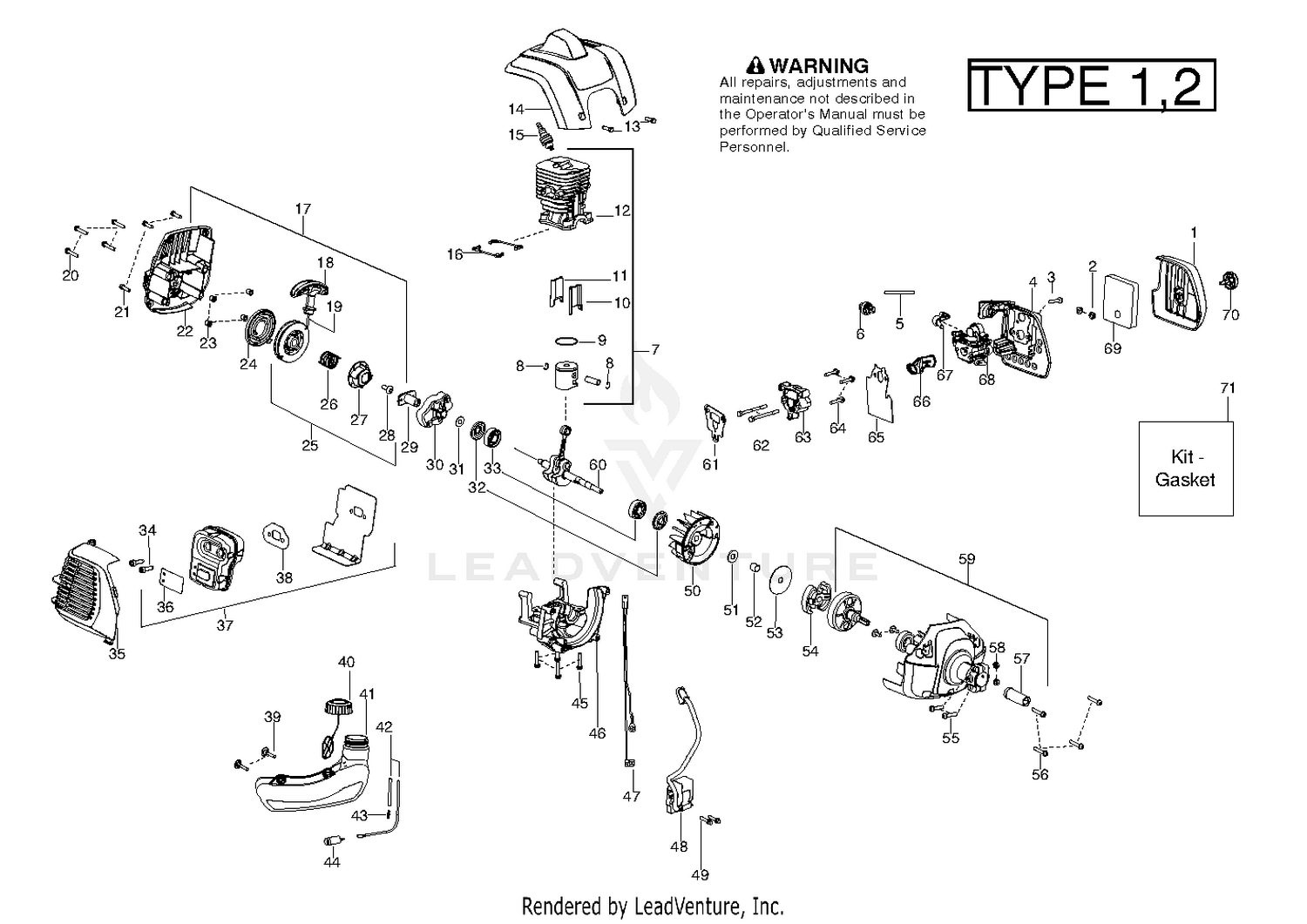

| Ref | Part Number | Description |
|---|
| 1 |
545177001 |
FITLER COVER Price: $1.99 |
| 2 |
530016101 |
NUT Price: $1.99 |
| 3 |
530016301 |
SCREW Price: $1.99 |
| 4 |
545176901 |
BASE AIRBOX BLACK Price: $2.99 |
| 6 |
530047721 |
AIR PURGE Price: $3.99 |
| 7 |
545008046 |
CYLINDER ASSY Price: $22.99 |
| 8 |
545194801 |
RETAINER PISTON PIN Price: $1.99 |
| 9 |
545194601 |
PISTON RING Price: $2.99 |
| 10 |
108-2866 |
NOZZLE HOLDER KIT Price: $438.88 |
| 10 |
545194901 |
INSERT Price: $1.99 |
| 11 |
545195001 |
INSERT Price: $1.99 |
| 12 |
545181801 |
CYLINDER Price: $12.99 |
| 13 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $1.49 |
| 14 |
545156401 |
CYLINDER COVER Price: $5.99 |
| 15 |
952030249 |
PLUG-SPARK (RCJ-6Y) Price: Call Us |
| 16 |
545008044 |
GASKET KIT 33CC Price: $6.99 |
| 17 |
545190701 |
STARTER ASSY Price: $14.99 |
| 18 |
545208401 |
STARTER HANDLE Price: $4.99 |
| 19 |
545029901 |
KIT ROPE Price: $9.99 |
| 20 |
530015897 |
B0LT, C/SHAFT 36/41 Price: $1.99 |
| 20 |
99-8301 |
NUT Price: $8.64 |
| 21 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $1.49 |
| 22 |
545190601 |
STARTER HOUSING Price: $7.99 |
| 23 |
545185301 |
SPACER Price: $1.99 |
| 24 |
545008013 |
SPRING STARTER Price: $3.49 |
| 25 |
545008049 |
KIT STARTER PULLEY Price: $17.99 |
| 26 |
545188301 |
SPRING Price: $2.99 |
| 27 |
545188001 |
STARTER PAWL Price: $2.99 |
| 28 |
545112801 |
SCREW Price: $1.99 |
| 29 |
545188201 |
SLEEVE COUPLING Price: $1.99 |
| 30 |
545188701 |
STARTER CUP ASSY Price: $3.99 |
| 30 |
99-8302 |
WASHER-ADJUSTING Price: $7.16 |
| 31 |
530015828 |
WASHER FLAT Price: $1.99 |
| 32 |
545008044 |
GASKET KIT 33CC Price: $6.99 |
| 33 |
545013401 |
BEARING RADIAL BALL (6201) Price: $6.99 |
| 34 |
530058982 |
BOLT MUFFLER Price: $1.99 |
| 35 |
545156301 |
MUFFLER COVER Price: $2.99 |
| 36 |
545224001 |
SPARK ARRESTER This part replaces 545008070. Price: $2.99 |
| 37 |
545180701 |
MUFFLER ASSY Price: $11.99 |
| 38 |
545008044 |
GASKET KIT 33CC Price: $6.99 |
| 39 |
530016445 |
SCREW FUEL TANK RETAINER Price: $1.99 |
| 40 |
530057973 |
Assy-Fuel Cap This part replaces 545215901. Price: $7.99 |
| 40 |
99-8303 |
SPRING-NOZZLE Price: $11.49 |
| 41 |
545182102 |
Price: $11.36 |
| 42 |
530069599 |
KIT-LINE(FUEL) Price: $4.69 |
| 43 |
530023877 |
FUEL LINE FITTING Price: $1.99 |
| 44 |
530095646 |
FUEL PICK-UP ASSY Price: $2.69 |
| 45 |
530015897 |
B0LT, C/SHAFT 36/41 Price: $1.99 |
| 46 |
545181901 |
CRANKCASE Price: $12.99 |
| 47 |
525387801 |
Price: $3.99 |
| 48 |
545189701 |
IGNITION MODULE Price: $22.99 |
| 49 |
530016357 |
SCREW Price: $1.99 |
| 50 |
545120401 |
FLYWHEEL ASSY Price: $9.99 |
| 50 |
99-8304 |
SPACER-DISTANCE Price: $29.26 |
| 51 |
530016463 |
WASHER CLUTCH Price: $1.99 |
| 52 |
530057852 |
SPACER FLYWHEEL Price: $2.99 |
| 53 |
530094189 |
WASHER-CLUTCH Price: $2.99 |
| 54 |
530055122 |
Assy-Clutch This part replaces 545008038. Price: $8.99 |
| 55 |
530015774 |
SCREW-10-24 X 1" (UNC) Price: $1.99 |
| 56 |
530015897 |
B0LT, C/SHAFT 36/41 Price: $1.99 |
| 57 |
545186401 |
GUIDE CLUTCH DRUM/FLEXSHAFT Price: $2.99 |
| 58 |
530015768 |
LOCKNUT-HEX 10-24 Price: $1.99 |
| 59 |
545190801 |
CLUTCH COVER ASSY Price: $28.99 |
| 60 |
545194001 |
CRANKSHAFT This part replaces 545008047. Price: $33.99 |
| 60 |
99-8305 |
ROD-PUSH Price: $60.67 |
| 61 |
545008044 |
GASKET KIT 33CC Price: $6.99 |
| 62 |
530016418 |
BOLT Price: $1.99 |
| 63 |
575391501 |
ADAPTER, CARBURETOR Price: $6.99 |
| 64 |
530016441 |
SCREW Price: $1.99 |
| 65 |
545008044 |
GASKET KIT 33CC Price: $6.99 |
| 66 |
545190501 |
CARB BOOT ADAPTER Price: $1.99 |
| 67 |
574719701 |
Price: $6.99 |
| 68 |
545189502 |
CARBURETOR This part replaces 545008042. Price: $39.99 |
| 69 |
545195901 |
AIR FILTER Price: $1.99 |
| 70 |
545188801 |
AIRBOX KNOB ASSY BLACK Price: $1.99 |
| 70 |
99-8306 |
NUT-NOZZLE Price: $34.65 |
| 80 |
99-8307 |
WASHER-PLAIN Price: $8.84 |
| 90 |
99-8308 |
PIECE-NOZZLE Price: $90.57 |
| 100 |
99-8309 |
ADJUSTING WASHER ASM Price: $56.19 |
| 110 |
99-8310 |
WASHER-ADJUST (0.10MM) Price: $2.74 |
| 110 |
99-8311 |
WASHER-ADJUST (0.20MM) Price: $3.56 |
| 110 |
99-8312 |
WASHER-ADJUST (0.30MM) Price: $2.74 |
| 110 |
99-8313 |
WASHER-ADJUST (0.40MM) Price: $2.74 |
| 110 |
99-8314 |
WASHER-ADJUST (0.50MM) Price: $1.91 |
| 110 |
99-8315 |
WASHER-ADJUST (0.52MM) Price: $1.91 |
| 110 |
99-8316 |
WASHER-ADJUST (0.54MM) Price: $1.91 |
| 110 |
99-8317 |
WASHER-ADJUST (0.56MM) Price: $1.91 |
| 110 |
99-8318 |
WASHER-ADJUST (0.58MM) Price: $1.91 |
| 110 |
99-8319 |
WASHER-ADJUST (0.80MM) Price: $1.91 |
| 120 |
98-7676 |
GASKET Price: $2.73 |
