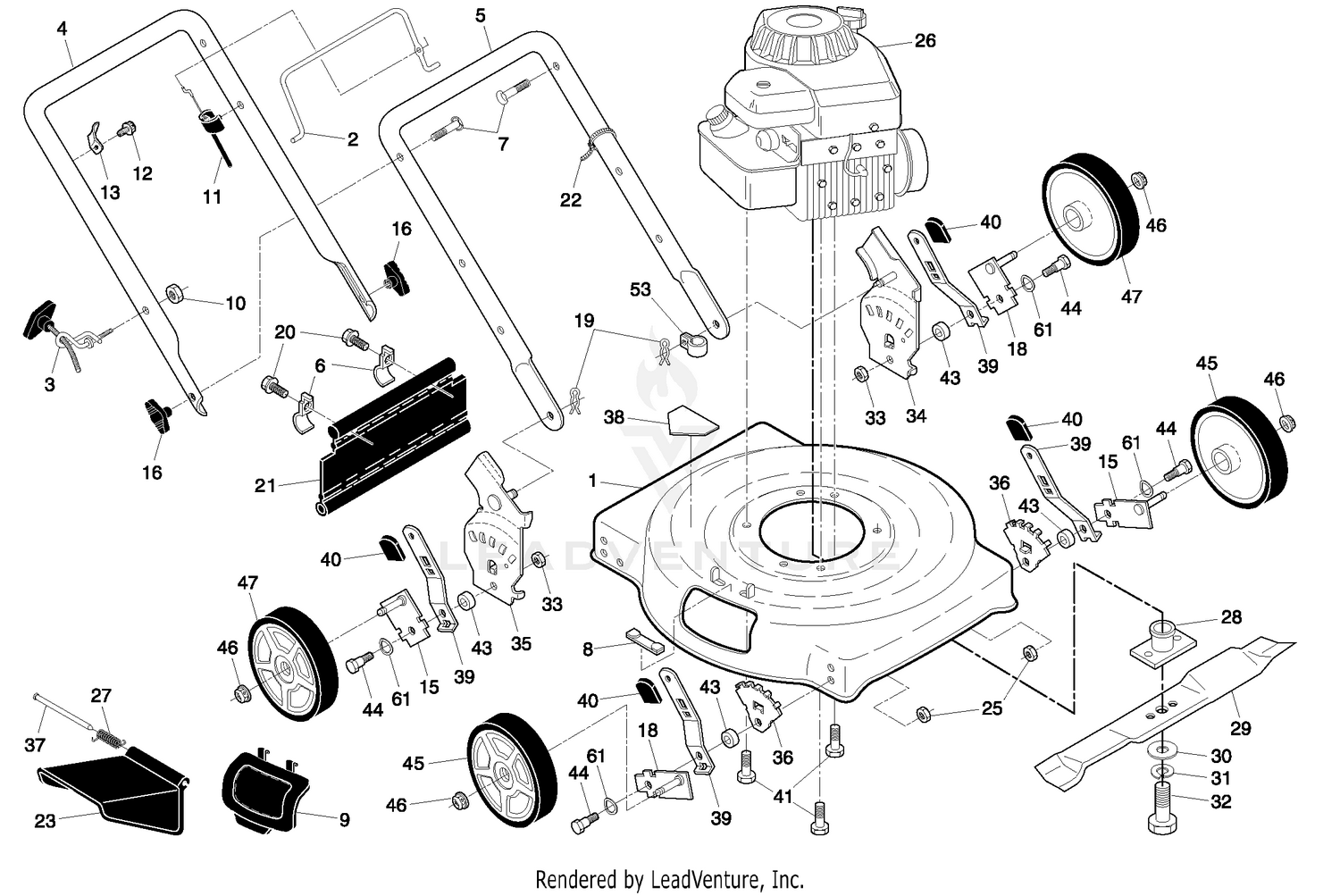

| Ref | Part Number | Description |
|---|
| 1 |
98-9508 |
WASHER-SHAFT, R-ARM Price: $0.47 |
| 2 |
194177X428 |
Control Bar Price: Call Us |
| 2 |
98-9385 |
WASHER-FLAT Price: $1.24 |
| 3 |
194788 |
Rope Guide Price: Call Us |
| 3 |
98-9393 |
NUT Price: $2.72 |
| 4 |
194179X479 |
Upper Handle Price: Call Us |
| 4 |
98-9501 |
ROCKER ARM ASM Price: $28.78 |
| 5 |
105-3790 |
R-ARM SHAFT ASM This part replaces 98-9612. Price: $28.61 |
| 5 |
169708X479 |
Lower Handle Price: Call Us |
| 6 |
192301X004 |
Hinge Bracket Price: Call Us |
| 6 |
98-9370 |
CLIP-CIRCULAR, EXTERNAL Price: $1.30 |
| 7 |
191574 |
Handle Bolt 5/16-18 Price: Call Us |
| 7 |
98-9507 |
WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 8 |
161622 |
Clip, Closeout Price: Call Us |
| 8 |
98-9505 |
BRACKET-ARM, ROCKER Price: $22.17 |
| 9 |
160830 |
Mulcher Plate Price: Call Us |
| 9 |
98-9504 |
SPRING-ARM, ROCKER Price: $0.66 |
| 10 |
132004 |
Locknut, Hex 1/4-20 Price: Call Us |
| 10 |
98-9391 |
SCREW-SET, ROCKER ARM Price: $5.98 |
| 11 |
158152 |
Engine Zone Control Cable Price: Call Us |
| 11 |
99-8385 |
SEAL-STEM, VALVE This part replaces 98-9496. Price: $7.29 |
| 12 |
750634 |
Screw, Hex Head, Threaded, Rolled #10-24 x1/2 Price: Call Us |
| 12 |
98-9626 |
SPRING-VALVE Price: $10.57 |
| 13 |
107-9092 |
RETAINER-SPRING This part replaces 98-9498. Price: $2.58 |
| 13 |
86899X004 |
Up-Stop Bracket Price: Call Us |
| 14 |
117-7572 |
COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 15 |
401174X004 |
Axle Arm Assembly (Rear, RH / Front, LH) Price: Call Us |
| 15 |
98-9497 |
CAP-VALVE Price: $8.36 |
| 16 |
189713X428 |
Handle Knob Price: Call Us |
| 16 |
98-9506 |
STUD Price: $5.98 |
| 17 |
112-7019 |
VALVE-EXHAUST This part replaces 98-9625. Price: $56.65 |
| 18 |
401175X004 |
Axle Arm Assembly (Rear, LH / Front, RH) Price: Call Us |
| 19 |
51793 |
Hairpin Cotter Price: Call Us |
| 20 |
750097 |
Screw Price: Call Us |
| 21 |
413160 |
Rear Skirt Price: Call Us |
| 22 |
664-26 |
Wire Tie Price: Call Us |
| 23 |
160831 |
Discharge Guard Price: Call Us |
| 25 |
166785 |
Nut, Hex Price: Call Us |
| 27 |
408585 |
Torsion Spring Price: Call Us |
| 28 |
193825 |
Blade Adapter Price: Call Us |
| 30 |
851074 |
Hardened Washer Price: Call Us |
| 31 |
850263 |
Helical Lockwasher 3/8 Price: Call Us |
| 32 |
851084 |
Hex Head Screw 3/8-24 x 1/4 Grade 8 Price: Call Us |
| 33 |
73930500 |
Nut, Hex, Centerlock 5/16-18 Price: Call Us |
| 34 |
400781X479 |
Support, Wheel Bracket, LH Price: Call Us |
| 35 |
400782X479 |
Support, Wheel Bracket, RH Price: Call Us |
| 36 |
407494X005 |
Adjuster, Wheel Bracket Price: Call Us |
| 37 |
160833 |
Hinge Rod Price: Call Us |
| 38 |
404763 |
Danger Decal Price: Call Us |
| 39 |
401621X004 |
Selector Spring Price: Call Us |
| 40 |
87877 |
Selector Knob Price: Call Us |
| 41 |
150406 |
Screw, Hex Head, Threaded, Rolled 3/8-16 x 1 Price: Call Us |
| 43 |
401629 |
Spacer Price: Call Us |
| 44 |
401638 |
Shoulder Bolt Price: Call Us |
| 45 |
193931X617 |
Wheel & Tire Assembly, Front Price: Call Us |
| 46 |
409148 |
Locknut, Hex 3/8-16 Price: Call Us |
| 47 |
193905X617 |
Wheel & Tire Assembly, Rear Price: Call Us |
| 53 |
197991 |
Clip, Cable Price: Call Us |
| 61 |
193732 |
Operator’s Manual, English Price: Call Us |
| 61 |
193735 |
Operator's manual, Spanish Price: Call Us |
| 61 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
