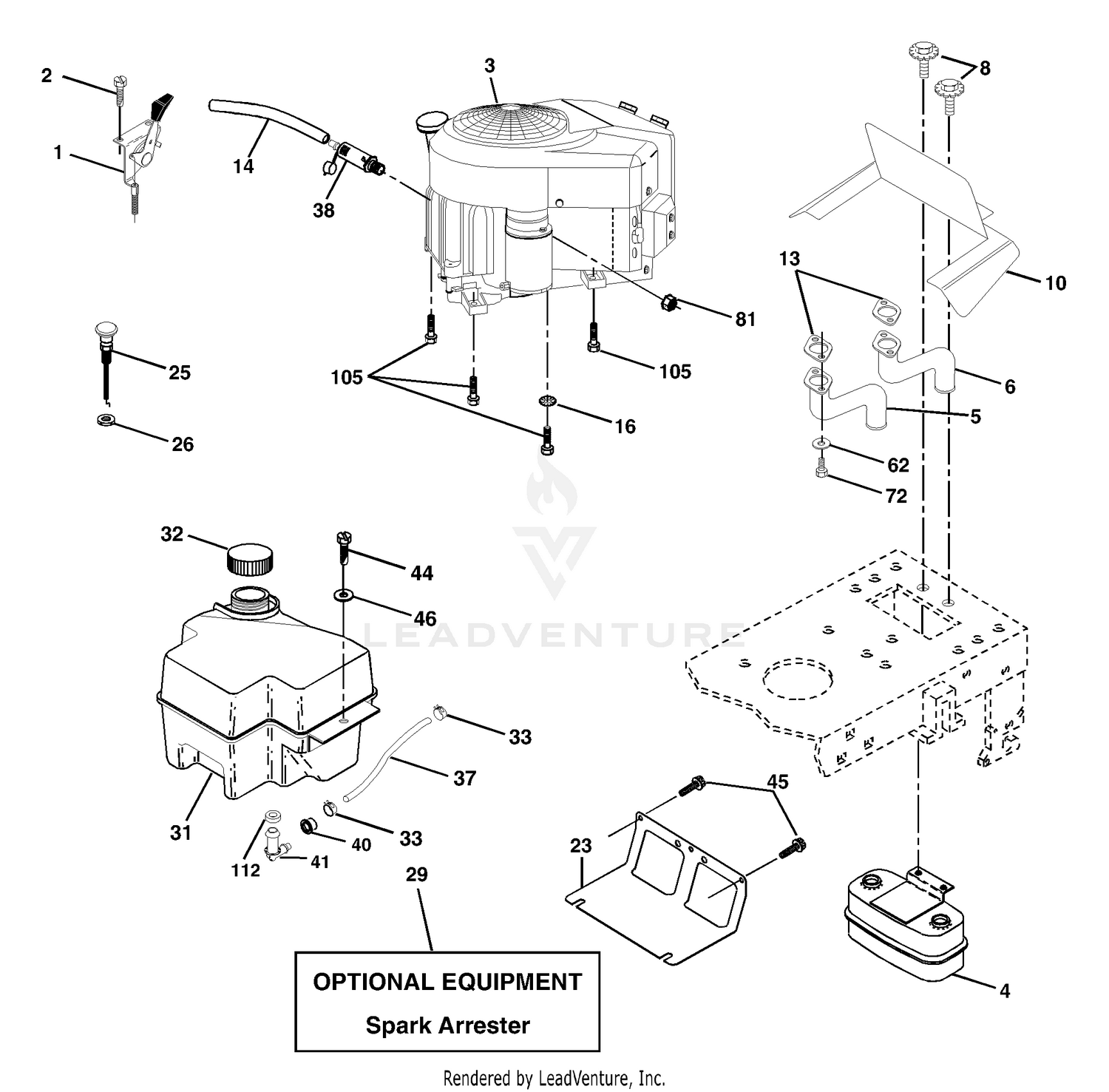

| Ref | Part Number | Description |
|---|
| 1 |
170803 |
Control Throt /Ch Flag Price: Call Us |
| 2 |
17720408 |
Screw Hex Thd Cut 1/4-20x1/2 Price: Call Us |
| 4 |
149723 |
Muffler Price: Call Us |
| 5 |
174703 |
Exhaust Tube LH Price: Call Us |
| 6 |
174704 |
Exhaust Tube RH Price: Call Us |
| 8 |
171877 |
Bolt 5/16-18unc x 3/4 Price: Call Us |
| 010 |
100-9150 |
CRANKCASE Price: $3,894.62 |
| 10 |
175563 |
Shield Muffler Price: Call Us |
| 14 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 16 |
11050600 |
Washer Lock Ext Tooth 3/8 Price: Call Us |
| 020 |
98-7486 |
PLUG Price: $1.11 |
| 23 |
169837 |
Shield Browning/Debris Guard Price: Call Us |
| 25 |
161729 |
Control Choke Price: Call Us |
| 26 |
73920600 |
Nut Keps 3/8-24 Unf Price: Call Us |
| 29 |
137180 |
Arrestor Spark Price: Call Us |
| 030 |
98-7487 |
PLUG Price: $3.18 |
| 31 |
180645 |
Tank Fuel Price: Call Us |
| 32 |
140527 |
Cap Asm Fuel W/sym Vented Price: Call Us |
| 33 |
123487X |
Clamp Hose Blk Price: Call Us |
| 37 |
137040 |
Line Fuel 20" Price: Call Us |
| 38 |
181654 |
Plug Drain Oil Easy Price: Call Us |
| 040 |
98-7488 |
PLUG Price: $2.74 |
| 40 |
124028X |
Bushing Snap Price: Call Us |
| 41 |
139277 |
Stem Fuel Tank Price: Call Us |
| 44 |
17670412 |
Screw Hexwsh Thdrol 1/4-20x3/4 Price: Call Us |
| 45 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 46 |
19091416 |
Washer 9/32 X 7/8 X 16ga Price: Call Us |
| 050 |
98-9379 |
PLUG-EXPANSION This part replaces 98-7489. Price: $0.76 |
| 060 |
98-7490 |
PLUG Price: $0.60 |
| 62 |
10040500 |
Washer Lock 5/16 Price: Call Us |
| 070 |
98-7500 |
CAP-SEALING Price: $7.89 |
| 72 |
71070512 |
Screw Hex Hd Cap 5/16-18 x 3/4 Price: Call Us |
| 080 |
98-7501 |
CAP-SEALING Price: $4.84 |
| 81 |
73510400 |
Nut Keps Hex 1/4-20 Unc Price: Call Us |
| 090 |
98-7502 |
PIN-STRAIGHT Price: $0.24 |
| 100 |
98-7503 |
PIN-STRAIGHT Price: $0.42 |
| 105 |
17120616 |
Screw Thdrol 3/8-16x1-1 Price: Call Us |
| 110 |
98-7504 |
PIN-STRAIGHT Price: $0.72 |
| 120 |
98-7505 |
PIN-STRAIGHT Price: $0.66 |
| 130 |
98-7506 |
PIN-PIPE Price: $3.62 |
| 140 |
98-7509 |
O-RING Price: $4.31 |
| 150 |
100-9153 |
PIPE-RETURN, WATER Price: $6.85 |
