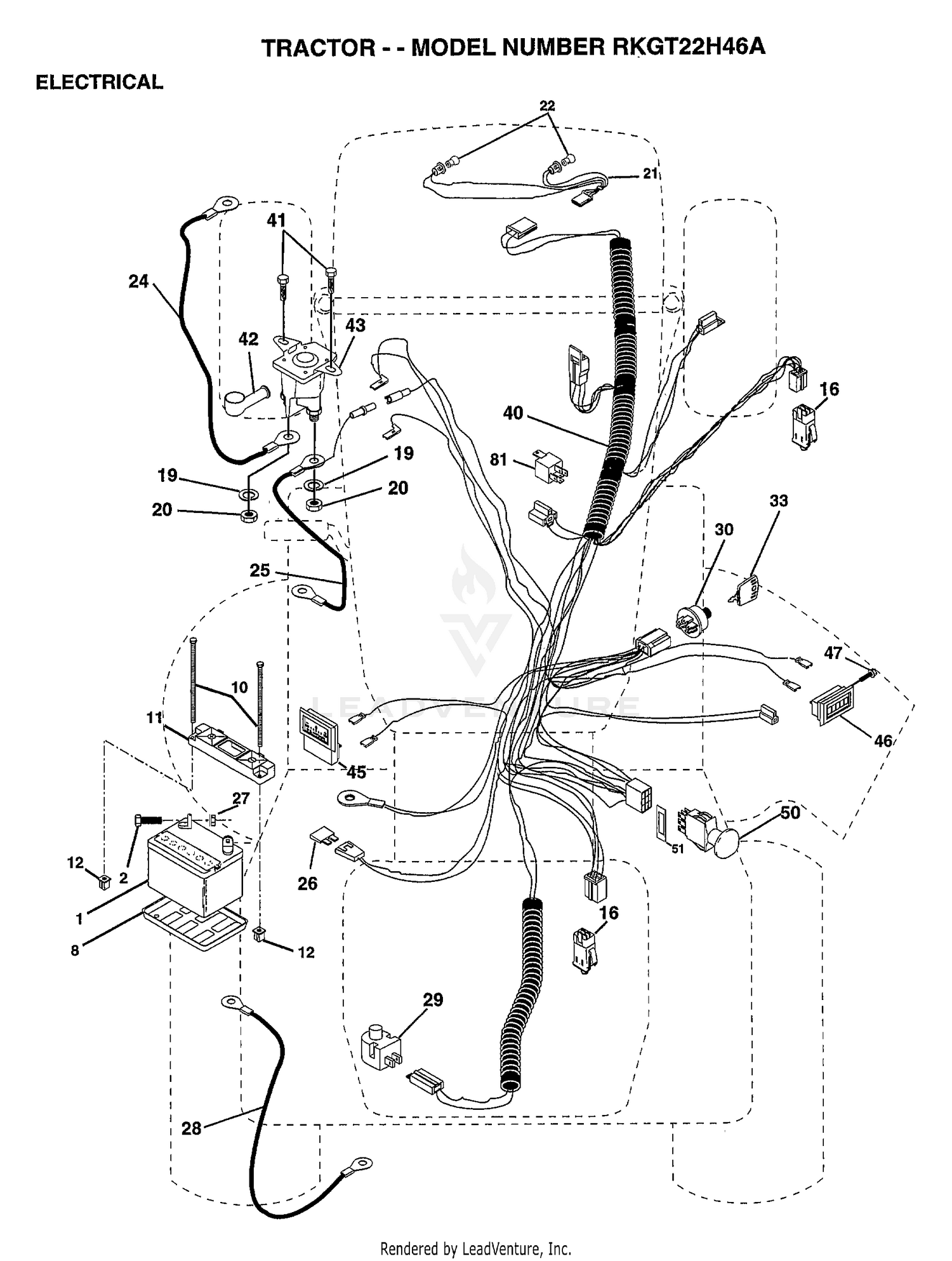

| Ref | Part Number | Description |
|---|
| 1 |
144927 |
SUB= 125603X Price: Call Us |
| 1 |
98-2354-03 |
LATCH-SEAT Price: $41.34 |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 2 |
98-2353 |
BRACKET-LATCH, SEAT Price: $17.71 |
| 3 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 4 |
98-9342 |
DECAL-SOLENOID, INFORMATION Price: $69.36 |
| 5 |
98-9302 |
PLATE-STOP, IDLER Price: $12.42 |
| 6 |
66-4190-03 |
SPRING-IDLER, CLUTCH Price: $7.20 |
| 7 |
105-4674 |
DECAL-NOISE Price: $4.80 |
| 8 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 9 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 10 |
145211 |
SUB= 150177 Price: Call Us |
| 10 |
25-8640 |
SCREW-HH Price: $1.09 |
| 11 |
150109 |
HOLDDOWN BATTERY Price: Call Us |
| 11 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 12 |
145769 |
SUB= 150177 Price: Call Us |
| 12 |
98-9311 |
SWIVEL-THROTTLE Price: $28.41 |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 16 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 17 |
110-0453-03 |
SEAT PLATE ASM Price: $363.82 |
| 18 |
106-9224 |
DECAL-DANGER Price: $4.87 |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
233-42 |
KNOB Price: $12.88 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
73350400 |
NUT Price: Call Us |
| 21 |
166182 |
HARNESS.ASM.LIGHT.W/4152J Price: Call Us |
| 21 |
98-9303 |
CABLE-THROTTLE Price: $21.41 |
| 22 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 23 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 24 |
4014J |
CABLE.BATY.22.RED Price: Call Us |
| 24 |
98-2352-03 |
FRAME-SEAT Price: $456.00 |
| 25 |
146686 |
CABLE.BATRY.4GA. Price: Call Us |
| 25 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 26 |
108824X |
FUSE HYT Price: Call Us |
| 26 |
93-0021 |
SWIVEL-CABLE, THROTTLE Price: $33.15 |
| 27 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 27 |
73510400 |
NUT Price: Call Us |
| 28 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 29 |
160784 |
SWITCH.PLUNGER Price: Call Us |
| 29 |
321-4 |
SCREW-HH Price: $0.99 |
| 30 |
163968 |
SWITCH.IGN. Price: Call Us |
| 30 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 31 |
75-3680-03 |
ROD-SEAT Price: $38.90 |
| 32 |
75-3430-03 |
LEVER-THROTTLE Price: $29.18 |
| 33 |
140401 |
KEY MLD GEN DELTA Price: Call Us |
| 40 |
166176 |
HARNESS.IGN. Price: Call Us |
| 41 |
17720408 |
SCREW Price: Call Us |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 45 |
122822X |
AMMETER Price: Call Us |
| 46 |
110940X |
HOUR METER T Price: Call Us |
| 47 |
17011008 |
SCREW Price: Call Us |
| 50 |
154959 |
PTO SWITCH.BLK Price: Call Us |
| 51 |
140405 |
RING RETAIN PTO Price: Call Us |
