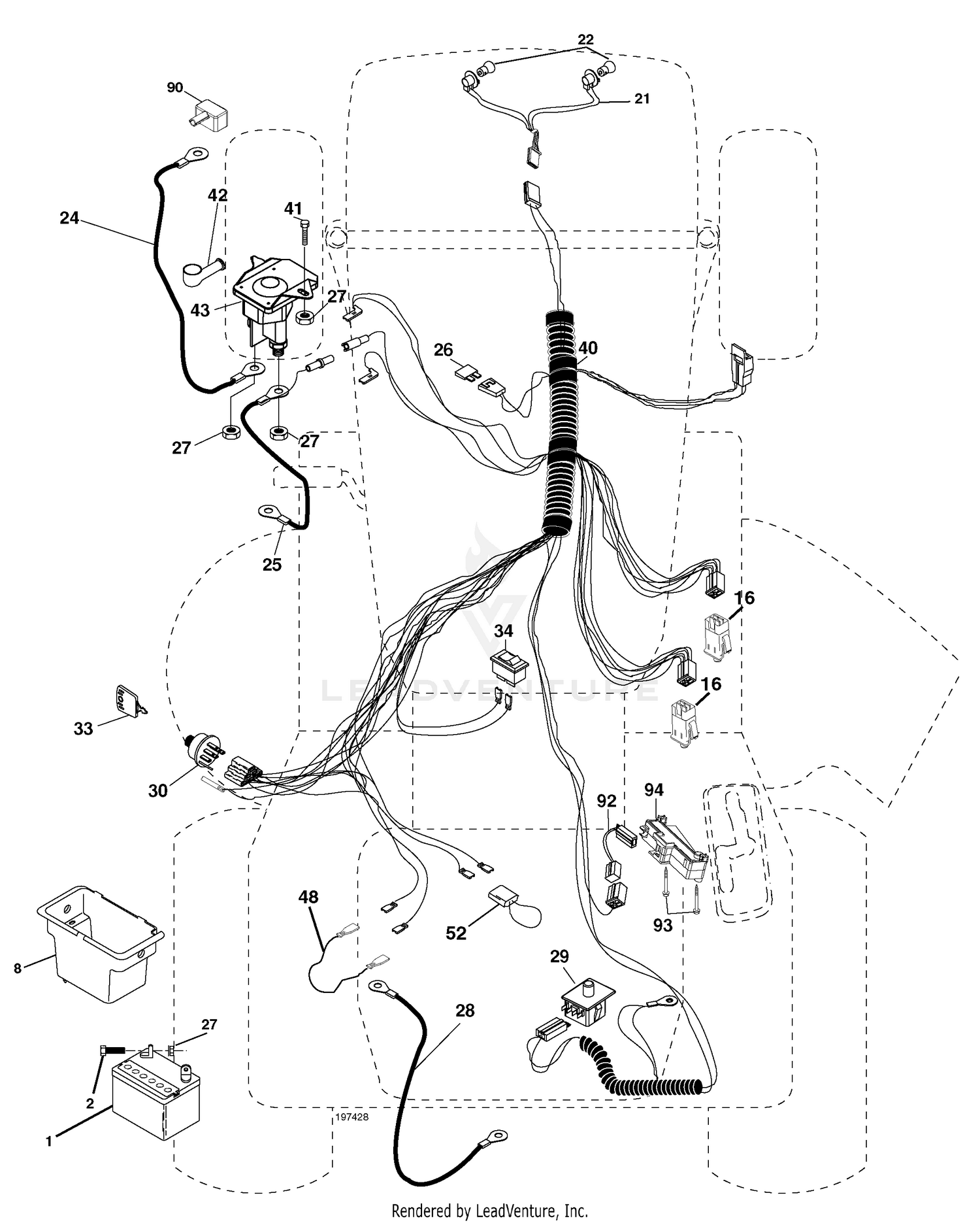

| Ref | Part Number | Description |
|---|
| 1 |
144927 |
Battery Price: Call Us |
| 1 |
94-7282 |
CAP-DUST Price: $16.25 |
| 2 |
3272-15 |
PIN-COTTER Price: $0.47 |
| 2 |
74760412 |
Bolt Hex Hd 1/4-20 unc x 3/4 Price: Call Us |
| 3 |
32136-11 |
NUT-HEX, SLOT Price: $7.74 |
| 4 |
242-35 |
NUT-WHEEL This part replaces 321077. Price: $9.04 |
| 5 |
42329 |
TIRE WHEEL ASS-Y (23" T Price: Call Us |
| 6 |
3256-62 |
WASHER-FLAT Price: $0.75 |
| 7 |
115-9471 |
BEARING-CUP This part replaces 94-7284. Price: $6.46 |
| 8 |
176689 |
Box Battery Price: Call Us |
| 8 |
254-62 |
BEARING-ROLLER, CONE This part replaces 94-7283. Price: $12.61 |
| 9 |
94-7148 |
HUB ASM Price: $205.34 |
| 10 |
94-7285 |
SEAL Price: $13.38 |
| 11 |
93-6586 |
BUSHING Price: $26.89 |
| 12 |
117-5809-03 |
RH SPINDLE ASM This part replaces 93-6582. Price: $908.87 |
| 13 |
3217-9 |
NUT-HH Price: $0.37 |
| 14 |
325-6 |
SCREW-HH Price: $1.42 |
| 15 |
93-6584 |
KING PIN ASM Price: $68.03 |
| 16 |
127-2937 |
KIT-SHOCK This part replaces 42690. Price: $180.74 |
| 16 |
176138 |
Switch Interlock Price: Call Us |
| 17 |
42691 |
BOLT ASM Price: $19.85 |
| 18 |
110-5072 |
BOLT-SHOULDER This part replaces 42599. Price: $26.52 |
| 19 |
42574 |
SHACKEL-OUTSIDE Price: $7.32 |
| 20 |
42592 |
BUSHING-SHACKLE Price: $31.94 |
| 21 |
183759 |
Harness Socket Light Price: Call Us |
| 21 |
42576 |
SHACKEL-INSIDE Price: $7.18 |
| 22 |
4152J |
Bulb, Light # 1156 Price: Call Us |
| 22 |
93-6166 |
NUT-HEX Price: $0.41 |
| 23 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 24 |
4799J |
Cable Battery Price: Call Us |
| 24 |
87-3470 |
BUMPER Price: $18.89 |
| 25 |
146147 |
Cable Battery 6 Ga. Red w/16 wire 44" Price: Call Us |
| 25 |
323-11 |
SCREW-HH Price: $1.08 |
| 26 |
175158 |
Fuse Price: Call Us |
| 26 |
93-6161 |
WASHER Price: $3.68 |
| 27 |
3217-8 |
NUT-HEX Price: $1.34 |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 28 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 28 |
4207J |
Cable Ground 12" Blk 6 Ga. Price: Call Us |
| 29 |
112-7822-03 |
PLATE-SPRING This part replaces 42575. Price: $35.83 |
| 29 |
192749 |
Switch Seat Price: Call Us |
| 30 |
193350 |
Switch Ign Price: Call Us |
| 30 |
322-1 |
SCREW-HH Price: $0.22 |
| 31 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 32 |
99-0569 |
SPRING LEAF This part replaces 99-0570. Price: $176.73 |
| 33 |
140401 |
Key Ign Molded Generic Price: Call Us |
| 33 |
93-6587 |
BEARING Price: $14.99 |
| 34 |
110712X |
Switch Light/Reset Price: Call Us |
| 34 |
361011 |
DISCONTINUED Price: Call Us |
| 35 |
3220-11 |
NUT-JAM Price: $0.81 |
| 36 |
87-1480-03 |
END-TIE ROD, RH This part replaces 87-1480. Price: $101.78 |
| 37 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 38 |
93-6568-03 |
FRONT AXLE ASM This part replaces 93-6568. Price: $1,048.55 |
| 39 |
93-6588-03 |
ROD-STEERING This part replaces 93-6588. Price: $296.55 |
| 40 |
197428 |
Harness Ign Price: Call Us |
| 40 |
3-8386 |
NUT-PINION, REEL Price: $9.79 |
| 41 |
71110408 |
Bolt Fin Hex 1/4-20 unc x 1/2 Price: Call Us |
| 41 |
87-1470-03 |
END-TIE ROD, LH This part replaces 87-1470. Price: $101.78 |
| 42 |
117-5808-03 |
LH SPINDLE ASM This part replaces 93-6577. Price: $973.03 |
| 42 |
131563 |
Cover Terminal Red Price: Call Us |
| 43 |
192507 |
Solenoid Price: Call Us |
| 43 |
93-6509 |
END-TIE ROD Price: $98.38 |
| 44 |
138-6102 |
CYLINDER ASM This part replaces 93-6510. Price: $1,096.53 |
| 45 |
32136-3 |
NUT-SHH Price: $1.22 |
| 48 |
140844 |
Adapter Ammeter Price: Call Us |
| 52 |
141940 |
Protection Loop Price: Call Us |
| 90 |
180449 |
Cover Terminal Price: Call Us |
| 92 |
196615 |
Harness Pigtail Price: Call Us |
| 93 |
192540 |
Screw Plastite 10-14 x 2.0 Price: Call Us |
| 41169 |
WHEEL |
Price: $258.19 41169 |
