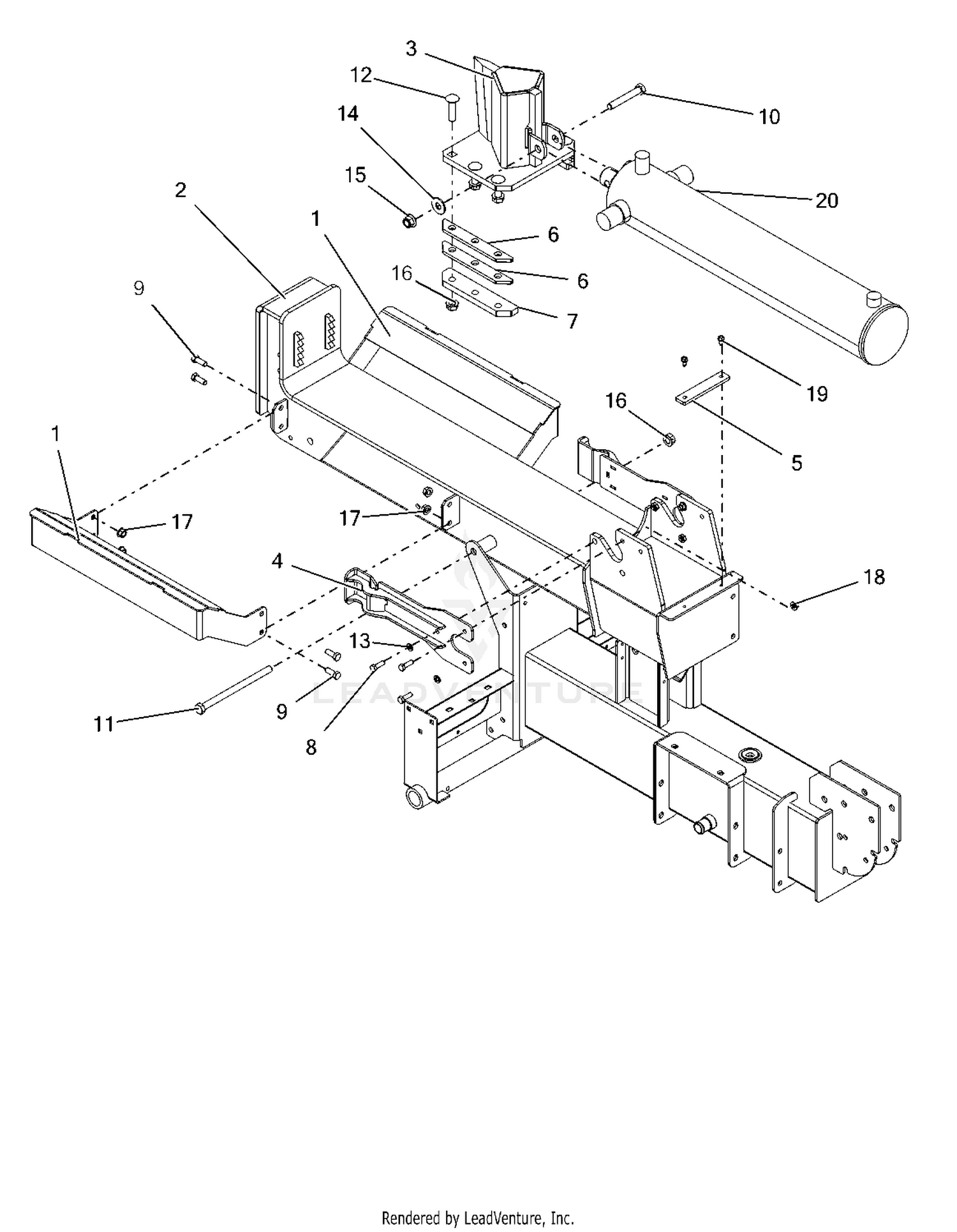

| Ref | Part Number | Description |
|---|
| 1 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 1 |
04590851 |
WLDMT, CRADLE, LOG SPLITTER Price: $132.95 |
| 1 |
3231-24 |
SCREW-CARR Price: $1.36 |
| 2 |
04740951 |
WLDMT, BEAM - 27/34T SPLITTER Price: $448.95 |
| 2 |
3296-26 |
NUT-LOCK, NI Price: $2.99 |
| 2 |
484589 |
Linkage, Speed Control Price: Call Us |
| 3 |
04824851 |
WMT, WEDGE - SPLITTER Price: $537.45 |
| 3 |
43674 |
Spacer, Idler Pulley - SFZ52 Price: Call Us |
| 4 |
04861459 |
WLDMT, PLATE - STRIPPER Price: $112.45 |
| 4 |
484035 |
Bearing Price: Call Us |
| 5 |
03835751 |
SPACER, CYLINDER Price: $9.45 |
| 5 |
452363 |
Neutral Plate Weldment Price: Call Us |
| 6 |
03967151 |
SPACER, WEDGE Price: $21.95 |
| 6 |
04040-05 |
Flatwasher, 3/8 (.406 x .812 x .065) Price: Call Us |
| 7 |
04001-77 |
Bolt, Hex Head, 3/8-16 x 3-1/2" Price: Call Us |
| 7 |
04353251 |
RETAINER,WEDGE Price: $23.95 |
| 8 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 8 |
05901701 |
BLT,HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 9 |
05901711 |
BLT,HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 9 |
48717 |
SWITCH, NEUTRAL INTERLOCK Price: Call Us |
| 9A |
483473 |
Switch, Double Pole - Plunger Price: Call Us |
| 10 |
05901634 |
BLT,HEX .50-13X3.25 G5 ZCC This part replaces 05960000. Price: $3.45 |
| 10 |
425937 |
Bracket, Operator Presence Switch Price: Call Us |
| 11 |
05902023 |
BLT, HEX .50-13X7.50 G5 ZCC This part replaces 05978200. Price: $7.45 |
| 11 |
462835 |
Handle Assy, W/Decals Price: Call Us |
| 12 |
04010-34 |
Machine Screw, #10-32 x 1-1/4", Pan Head Price: Call Us |
| 12 |
06200422 |
BLT- RHSN .50-13X2.00 G8 ZCC This part replaces 06200208. Price: $5.45 |
| 13 |
06300123 |
WSHR, LK-HVY .312X.097 ZCC This part replaces 06307400. Price: $0.45 |
| 13 |
462688 |
Latch, Thumb Price: Call Us |
| 14 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45 |
| 14 |
484749 |
Plate, Anti-Friction Price: Call Us |
| 15 |
04032-05 |
Washer, 1/4" Curved Spring Price: Call Us |
| 15 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 16 |
04009-11 |
Bolt, Shoulder 3/8 x 1" Price: Call Us |
| 16 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC This part replaces 06530008. Price: $0.95 |
| 17 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 17 |
483601 |
Spring, Speed Control Slide Price: Call Us |
| 18 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 18 |
462575 |
Neutral Handle Assy Price: Call Us |
| 19 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07400034. Price: $0.45 |
| 19 |
484672 |
Knob, Soft Touch Price: Call Us |
| 20 |
452118 |
Handle Weldment, Speed Control Price: Call Us |
| 21 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 22 |
483453-19 |
Bearing, Plastic 1/2" I.D. Price: Call Us |
| 23 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 24 |
04003-09 |
Bolt, Carriage, 1/4-20 x 1-1/4" Price: Call Us |
| 25 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-1/2" - Front Price: Call Us |
| 26 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 27 |
04021-01 |
HEX NUT, ELASTIC STOP LOCK # 10-32 Price: Call Us |
| 28 |
04009-14 |
Bolt, Shoulder 3/8 x .375" Price: Call Us |
| 29 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 30 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 31 |
425948 |
Bracket, Neutral Switch (Manual Start) Price: Call Us |
| 32 |
04009-16 |
Bolt, Shoulder 1/2 x 2" Price: Call Us |
| 33 |
484670 |
Spring, Operator Presence Price: Call Us |
| 34 |
462494 |
Handle, Op. Presence-LH Price: Call Us |
| 35 |
483453-22 |
Bearing Price: Call Us |
| 36 |
43866 |
Sleeve, Handle Pivot Price: Call Us |
| 37 |
462489 |
Handle Assembly-LH Price: Call Us |
| 38 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 39 |
484579 |
Linkage, Steering Price: Call Us |
| 40 |
04017-16 |
Capscrew, 5/16-18 x .75 Serrated Flange Hex Head Price: Call Us |
| 41 |
425756 |
Bracket, Transaxle Control Price: Call Us |
| 42 |
04001-45 |
Capscrew, Hex Head 3/8-16 x 2.0" Price: Call Us |
| 43 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 44 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 45 |
48796 |
Bearing, Self Aligning - 5/8 I.D. Price: Call Us |
| 46 |
483574 |
Linkage, Pump Price: Call Us |
| 47 |
452300 |
Weldment, Bellcrank-LH Price: Call Us |
| 48 |
43766 |
Spacer, Axles Price: Call Us |
| 49 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 50 |
04050-01 |
RETAINING RING, 5/8" EXTERNAL "E" Price: Call Us |
| 51 |
484671-01 |
Bearing Price: Call Us |
| 52 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 426568 |
Bracket, |
Neutral Switch (Electric Start Only) Price: Call Us 426568 |
| 452301 |
Weldment, |
Bellcrank-RH Price: Call Us 452301 |
| 462490 |
Handle |
Assembly-RH Price: Call Us 462490 |
| 462729 |
HANDLE |
ASSY, OPC - RH Price: Call Us 462729 |
| 483339 |
Rod |
End, 3/8-24 UNF RH Price: Call Us 483339 |
| 483340 |
Rod |
End, 3/8-24 UNF LH Price: Call Us 483340 |
| 483563 |
Rod |
End, Adjustable 3/8-24 Price: Call Us 483563 |
| 484580 |
Link, |
Pump Price: Call Us 484580 |
| 484590 |
Neutral |
Plate Weldment Price: Call Us 484590 |
| 484601 |
ROD |
END W/TRUNION - RH Price: Call Us 484601 |
| 484615 |
ROD |
END W/TRUNION - LH Price: Call Us 484615 |
