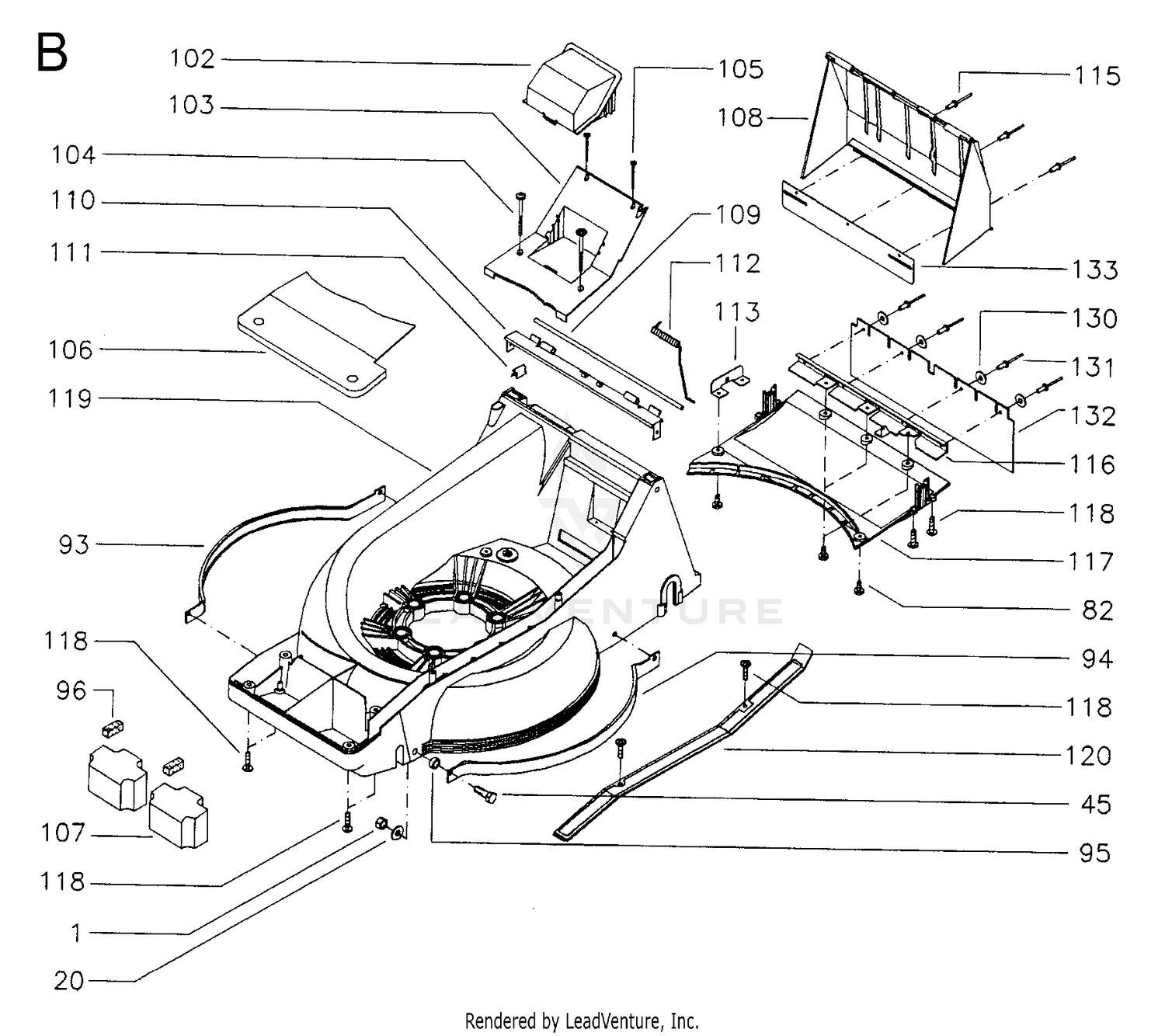

FRAME 3
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 20 | 734116441 | SPACER Price: $3.99 |
| 45 | 725245371 | SCREW This part replaces 725245351. Price: $4.99 |
| 82 | 515745046 | SCREW Price: $3.99 |
| 93 | 516614311 | DECK PROTECTOR RH Price: $27.99 |
| 94 | 516614411 | DECK PROTECTOR LH Price: $27.99 |
| 95 | 516509601 | SLEEVE Price: $5.99 |
| 96 | 516841100 | Damper Price: $3.04 |
| 102 | 516850511 | Cover Price: $5.69 |
| 103 | 516850411 | COVER Price: $10.28 |
| 104 | 516924801 | SCREW Price: $3.63 |
| 105 | 516924901 | SCREW Price: $0.99 |
| 106 | 516873907 | DECK FRONT COVER Price: $11.85 |
| 107 | 516852200 | COUNTERWEIGHT Price: $10.24 |
| 108 | 516873797 | Cover Price: $83.09 |
| 109 | 516490201 | Shaft Price: $6.81 |
| 110 | 512807968 | BRACKET TOP This part replaces 516702711. Price: $24.99 |
| 111 | 516924400 | Washer Price: $0.95 |
| 112 | 516612901 | SPRING Price: $8.99 |
| 113 | 513075400 | BOTTOM PLATE BRACKET This part replaces 516499501. Price: $1.99 |
| 115 | 516927900 | RIVET Price: $4.81 |
| 116 | 516492701 | Bracket Price: $19.90 |
| 117 | 516848911 | Cover Price: $19.59 |
| 118 | 516924701 | SCREW Price: $3.99 |
| 119 | 516873607 | DECK Price: $359.91 |
| 120 | 511918268 | LINK ARM COVER This part replaces 516511211. Price: $12.99 |
| 131 | 516924000 | RIVET Price: $1.99 |
| 132 | 516855000 | PROTECTOR Price: $12.52 |
| 133 | 516627611 | BRACKET Price: $28.78 |
