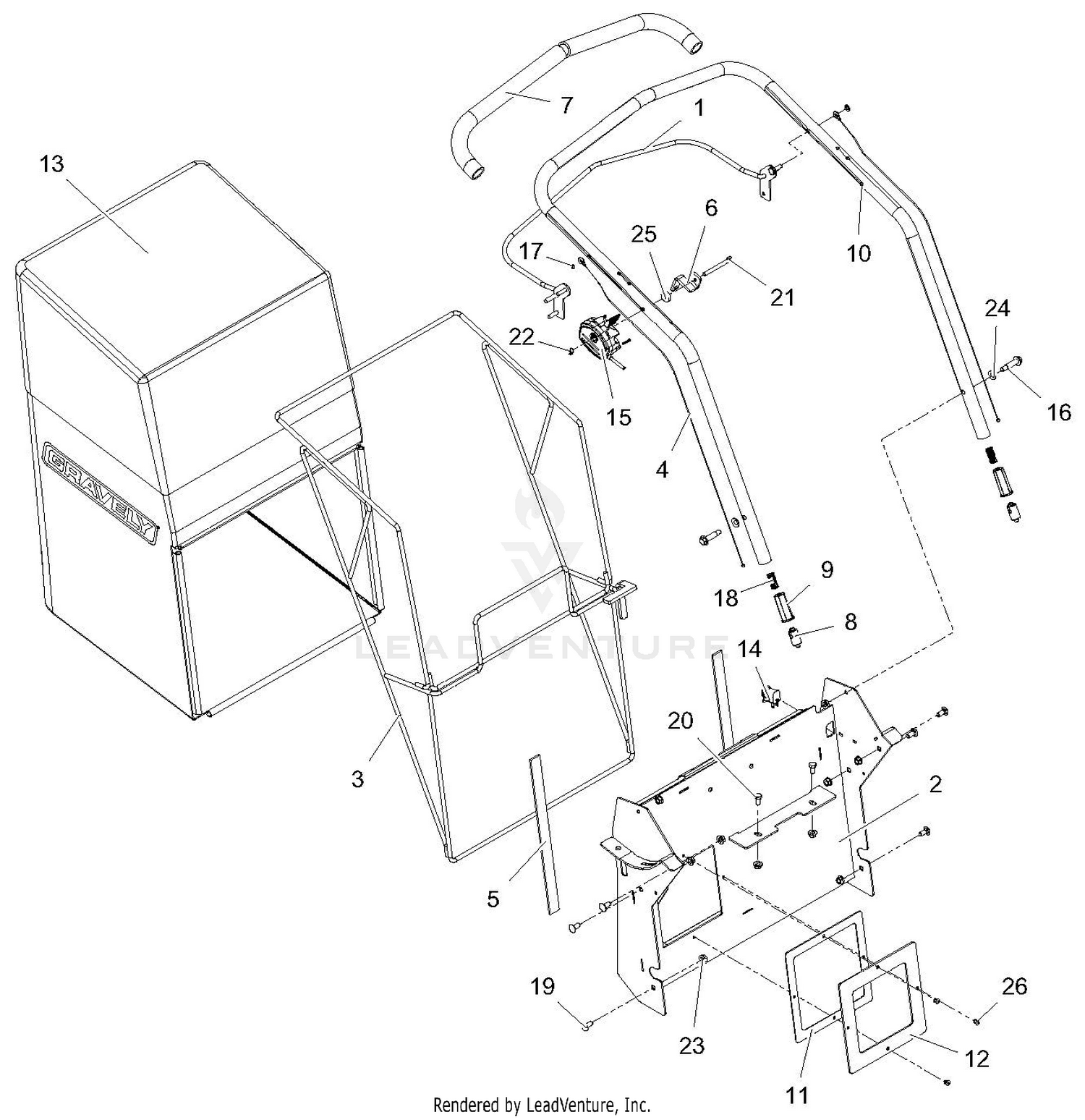

| Ref | Part Number | Description |
|---|
| 1 |
04559451 |
WLDMT, BAIL - APV TRACTION Price: $47.45 |
| 2 |
04573453 |
WLDMT, BAG BACKING PLATE Price: $174.95 |
| 3 |
04675651 |
WLDMT, BAG FRAME - APV (BLACK) This part replaces 04675653. Price: $189.95 |
| 4 |
06900604 |
CABLE, APV HANDLE ADJUST Price: $14.45 |
| 5 |
00928300 |
TAPE-FOAM .12X1.00 VINYL Price: $0.95 |
| 6 |
01245451 |
BRKT, TRACTION CABLE ANCHOR This part replaces 01245400. Price: $22.45 |
| 7 |
04290700 |
GRIP-HANDLEBAR, UPPER Price: $32.95 |
| 8 |
04521400 |
PLUNGER, HANDLEBAR LOCKING Price: $8.95 |
| 9 |
04528600 |
INSERT, HANDLEBAR ADJUST Price: $3.45 |
| 10 |
04557651 |
HANDLEBAR - APV, UPPER Price: Call Us |
| 11 |
04574851 |
PLATE, SEAL BACKER Price: $13.45 |
| 12 |
04576100 |
SEAL, RUBBER Price: $5.45 |
| 13 |
04687100 |
BAG-APV GRAVELY FELT Price: $124.95 |
| 14 |
04694300 |
SWITCH- SNAP MTG N.C. W/BOOT Price: $13.45 |
| 15 |
06900519 |
CABLE-ENG, THROTTLE/CHOKE 37.2 Price: $68.95 |
| 16 |
07001709 |
BLT-SHLDR, .50X1.15X.312-18GR5 Price: $5.45 |
| 17 |
07027600 |
NUT-PUSH .25X.50 O.D. Price: $1.95 |
| 18 |
08300028 |
SPRING, COMPRESSION Price: $4.45 |
| 19 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC This part replaces 06215700. Price: $2.45 |
| 20 |
05901832 |
BLT, HEX .31-18X.625 G5 ZCC This part replaces 05952200. Price: $1.45 |
| 22 |
06500812 |
NUT,LK-CTR .25-20 GA ZCC This part replaces 06529700. Price: $0.45 |
| 23 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 24 |
06401107 |
WSHR, FLT .385X.745X.030 ZCC This part replaces 06400840. Price: $2.45 |
| 25 |
06401103 |
WSHR, FLT .328X.870X.179 ZCC This part replaces 06439100. Price: $2.95 |
