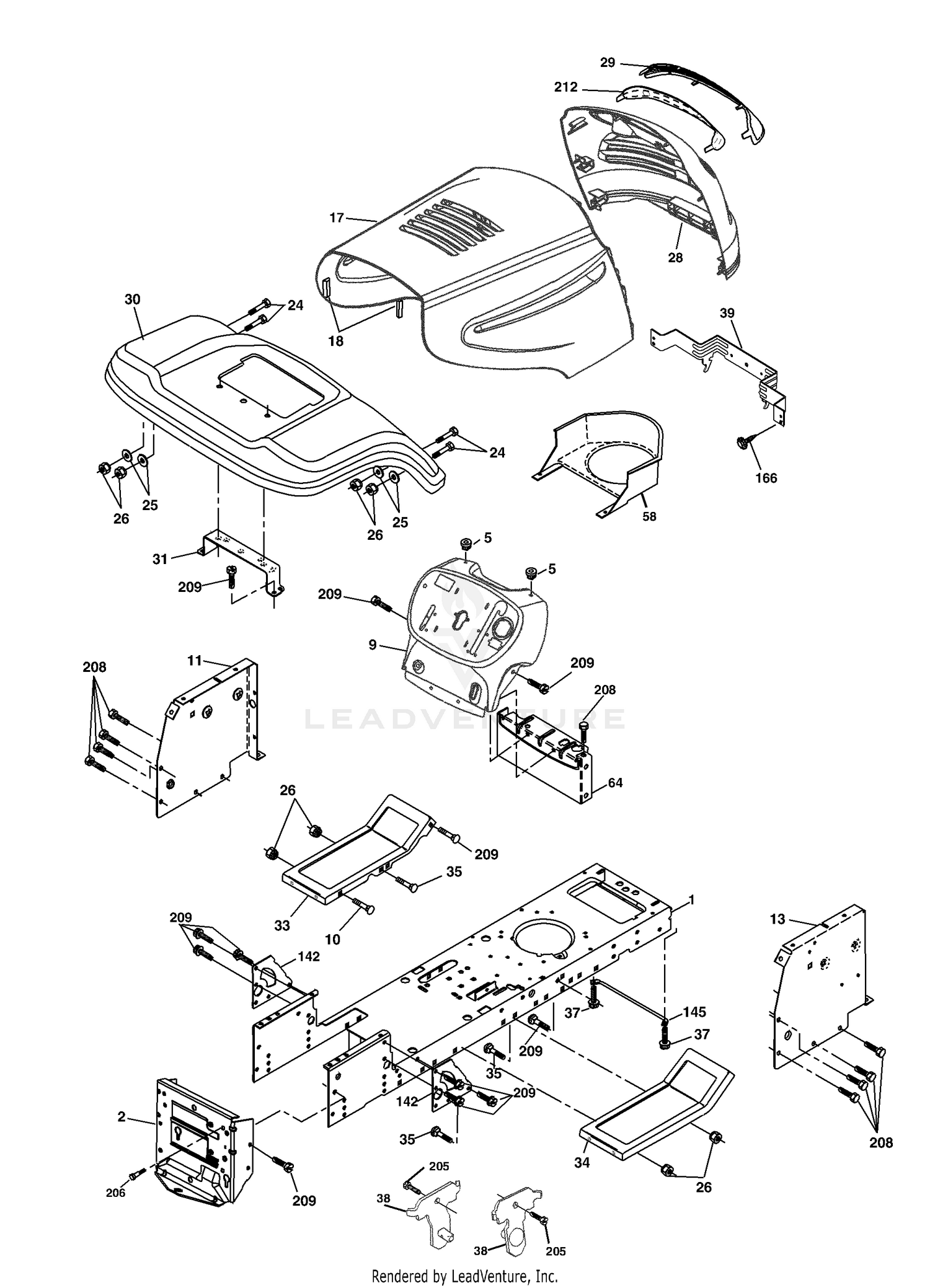

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar Price: Call Us |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 9 |
168337X012 |
Dash Price: Call Us |
| 10 |
107-9089 |
WATER PUMP ASM Price: $382.99 |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash Lh Price: Call Us |
| 13 |
179174X010 |
Panel Dash Rh Price: Call Us |
| 17 |
183394X428 |
Hood Price: Call Us |
| 18 |
126938X |
Bumper Hood Price: Call Us |
| 20 |
99-3517 |
DISCONTINUED Price: Call Us |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 unc Price: Call Us |
| 28 |
183826 |
Grille Price: Call Us |
| 29 |
183824X599 |
Lens Price: Call Us |
| 30 |
105-3750 |
MECHANICAL SEAL ASM Price: $84.06 |
| 30 |
169468X428 |
Fender Footrest STLT Pnt Price: Call Us |
| 31 |
136619 |
Bracket Support Fender Price: Call Us |
| 33 |
179716X428 |
Footrest Pnt Lh Price: Call Us |
| 34 |
179717X428 |
Footrest Pnt Rh Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Rear Price: Call Us |
| 39 |
174714 |
Bracket Pivot Price: Call Us |
| 40 |
112-8403 |
IMPELLER ASM This part replaces 99-3519. Price: $156.50 |
| 50 |
100-1932 |
PIPE-RETURN, WATER This part replaces 98-9577. Price: $8.45 |
| 58 |
150127 |
Duct Air Price: Call Us |
| 60 |
99-3454 |
GASKET-PUMP, WATER Price: $12.90 |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 70 |
98-9353 |
BOLT Price: $0.76 |
| 80 |
107-9090 |
BOLT Price: $2.58 |
| 90 |
99-3516 |
FLANGE-PUMP, WATER Price: $103.23 |
| 100 |
98-9717 |
CLAMP Price: $8.41 |
| 110 |
107-9091 |
PIPE-WATER Price: $32.93 |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 166 |
171875 |
Screw HWHD Hi-Lo #13-16 x 5/8 Price: Call Us |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1-1/4 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdr. 3/8-16 x 3/4 Price: Call Us |
| 212 |
183823 |
Insert Lens Reflect Price: Call Us |
