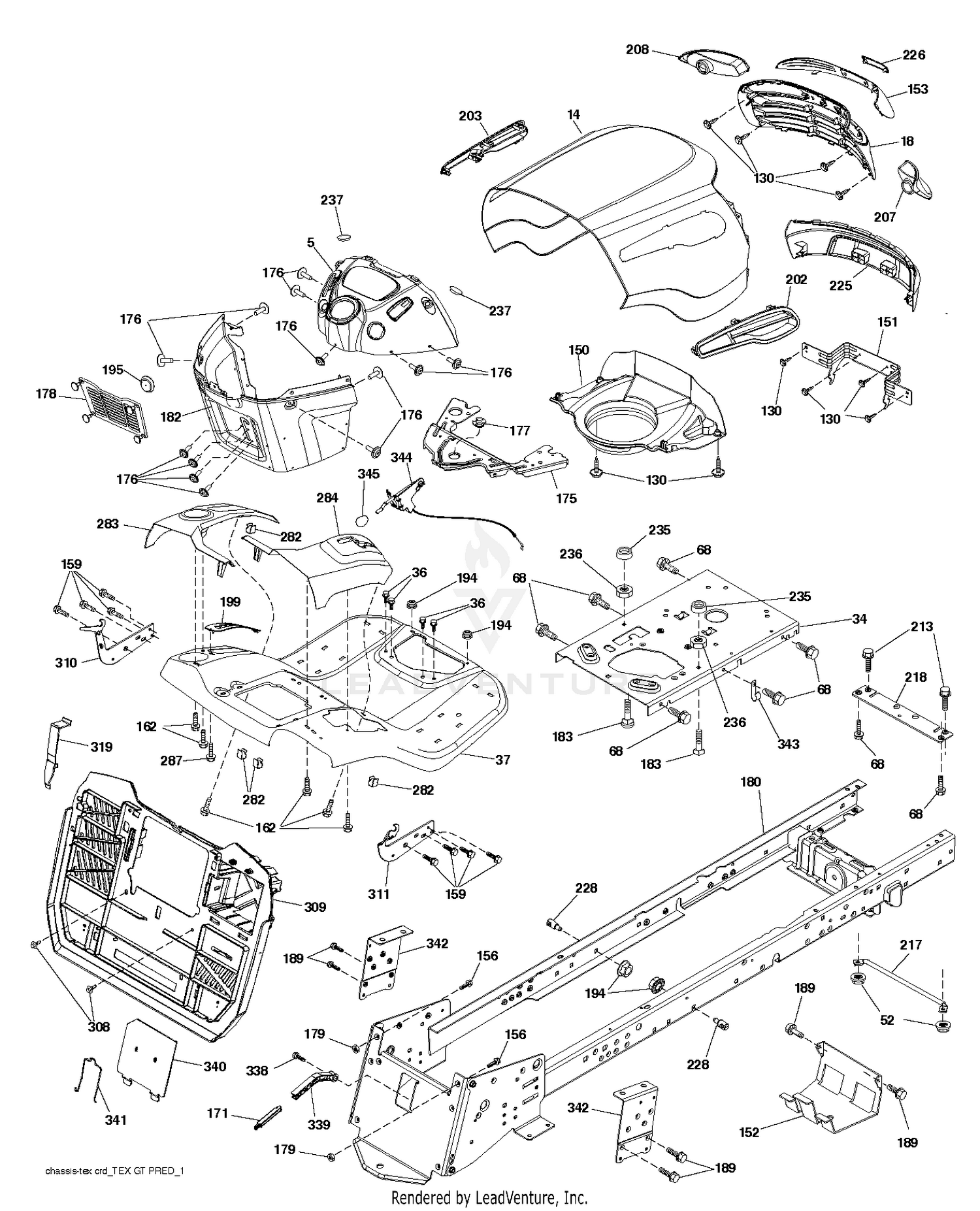

| Ref | Part Number | Description |
|---|
| 1 |
75-0560 |
STEERING WHEEL ASM Price: $204.13 |
| 2 |
68-5370 |
DECAL Price: $6.21 |
| 3 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 4 |
21-9260 |
COVER-DUST Price: $8.19 |
| 5 |
233-17 |
KNOB Price: $10.58 |
| 5 |
532446639 |
Price: $43.99 |
| 6 |
87-6620 |
SCREW Price: $1.29 |
| 7 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 8 |
93-1263 |
DECAL-TOWER Price: $46.56 |
| 9 |
93-7998-03 |
PLATE-INSTRUMENT Price: $40.21 |
| 10 |
95-1821 |
SPRING-COMPRESSION This part replaces 95-1821-03. Price: $6.71 |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 12 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 13 |
104-1492 |
ROD ASM Price: $65.49 |
| 14 |
532443824 |
Price: $64.99 |
| 14 |
75-6230 |
HOSE Price: $133.10 |
| 15 |
75-6240 |
HOSE Price: $137.49 |
| 16 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 17 |
63-7900-03 |
RACK Price: $144.55 |
| 18 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 18 |
532427333 |
Price: $33.99 |
| 19 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 20 |
75-5940 |
HOSE Price: $94.45 |
| 21 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 22 |
75-6250 |
HOSE Price: $175.77 |
| 23 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 24 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 25 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 26 |
75-0600 |
UNIT-STEERING, POWER Price: $1,809.64 |
| 27 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 28 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 29 |
75-2810 |
BRACKET-COLUMN, STEERING Price: $11.01 |
| 31 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 32 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 33 |
104-9324 |
SPEEDOMETER Price: $312.55 |
| 34 |
104-2541 |
SWITCH ASM Price: $36.70 |
| 34 |
532447253 |
Price: $15.99 |
| 35 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 36 |
532171877 |
Bolt 5/16-18 unc x 3/4 This part replaces 817060512. Price: $3.99 |
| 37 |
532441339 |
Price: $124.99 |
| 52 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 68 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 130 |
532416358 |
SCREW.#10 X 0.750.BOS THREAD Price: $2.99 |
| 150 |
532199411 |
Price: $20.99 |
| 151 |
532407807 |
BRACKET PIVOT Price: $14.99 |
| 152 |
532199535 |
SHIELD BROWNING Price: $11.99 |
| 153 |
532424717 |
Price: $11.99 |
| 156 |
872140614 |
BOLT Price: $2.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 162 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 171 |
532441289 |
Price: $2.16 |
| 175 |
532196304 |
PLATE.CROSSMEMBER.HUSQ Price: $22.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $6.99 |
| 177 |
532195227 |
BUSHING,STEERING Price: $3.69 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $19.99 |
| 179 |
532168937 |
NUT Price: $2.99 |
| 180 |
532435472 |
Price: Call Us |
| 182 |
532438967 |
Price: $25.99 |
| 183 |
874520520 |
BOLT.5/16-18X1-1/4 FULL THD Price: $2.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49 |
| 194 |
873900500 |
NUT LOCK HEX FLANGE 5/16-18 Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $2.99 |
| 199 |
532418739 |
Price: $2.99 |
| 202 |
532445426 |
Price: $11.54 |
| 203 |
532445583 |
Price: $5.99 |
| 207 |
532198963 |
Price: $17.99 |
| 208 |
532198964 |
Price: $13.99 |
| 213 |
539976934 |
HCS.5/16-18X3/4 This part replaces 874760512. Price: $1.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $8.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $2.99 |
| 225 |
532443825 |
Price: $26.99 |
| 226 |
532424716 |
Price: $4.99 |
| 228 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 235 |
532406129 |
SPACER FENDER Price: $2.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 237 |
532403704 |
PLUG.MOUNT.CARGO.BLK Price: $2.99 |
| 282 |
532414110 |
CLIP.RETAINER.CONSOLE.LT.HUSQ Price: $2.99 |
| 283 |
532440361 |
Price: $40.99 |
| 284 |
532440360 |
Price: $34.99 |
| 287 |
817600406 |
SCREW Price: $2.99 |
| 308 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 309 |
532436626 |
Price: Call Us |
| 310 |
532446636 |
Price: $27.99 |
| 311 |
532446637 |
Price: $27.99 |
| 319 |
532174662 |
Bracket Actuator Bagger CRD Price: $2.99 |
| 338 |
532436640 |
Price: $1.99 |
| 339 |
532441288 |
Price: $2.21 |
| 340 |
532440931 |
Price: $7.99 |
| 341 |
532436638 |
Price: $3.99 |
| 342 |
532435938 |
Price: $3.99 |
| 343 |
532440749 |
Price: $1.99 |
| 344 |
532438970 |
Price: $48.99 |
