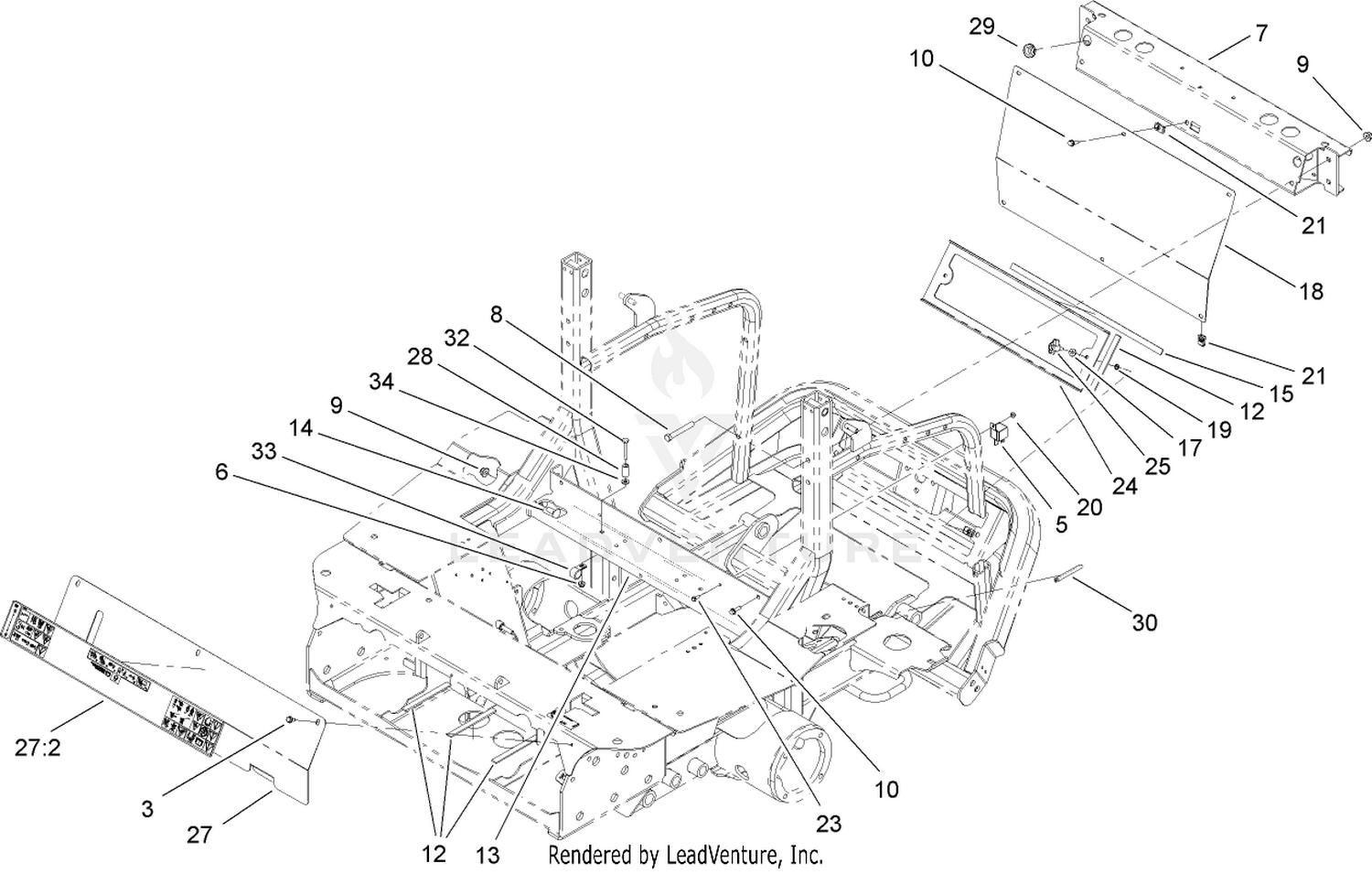

Frame Assembly — Parts Catalog

Ref	Part Number	Description
3	32144-10	SCREW-HWH Price: $4.29
5	99-7435	RELAY Price: $32.43
6	104-7201	NUT-HF Price: $0.69
7	112-6361-03	CROSSMEMBER ASM Price: $240.97
8	119-4162	SCREW-CARR This part replaces 323-13. Price: $1.73
9	104-8301	NUT-HF, NI Price: $1.09
10	3234-4	SCREW-HHF Price: $0.50
12	105-0778	STRIP-FOAM Price: $11.41
13	105-7296-03	SUPPORT-SEAT Price: $122.64
14	3231-2	BOLT-CARR Price: $0.81
15	112-6387	STRIP-FOAM Price: $10.62
17	3256-22	WASHER-FLAT Price: $0.39
18	112-6367-03	PANEL-REAR Price: $75.89
19	32151-106	RING-RETAINING Price: $0.25
20	3296-2	NUT-LOCK, NI Price: $1.89
21	107069	CLIP Price: $1.79
23	32105-2	SCREW-SHWH Price: $3.49
24	112-6384-0P	SCREEN This part replaces 112-6384-03. Price: $149.73
25	98-8332	KNOB Price: $4.89
27	110-9794	COVER-FRONT Price: $120.96
28	95-5807	SPACER Price: $10.10
29	237-124	GROMMET Price: $2.30
30	110-8276	TRIM-HOLD DOWN, BATTERY Price: $4.66
32	321-10	SCREW-HH Price: $1.29
33	2412-87	CLAMP-CABLE Price: $2.89
