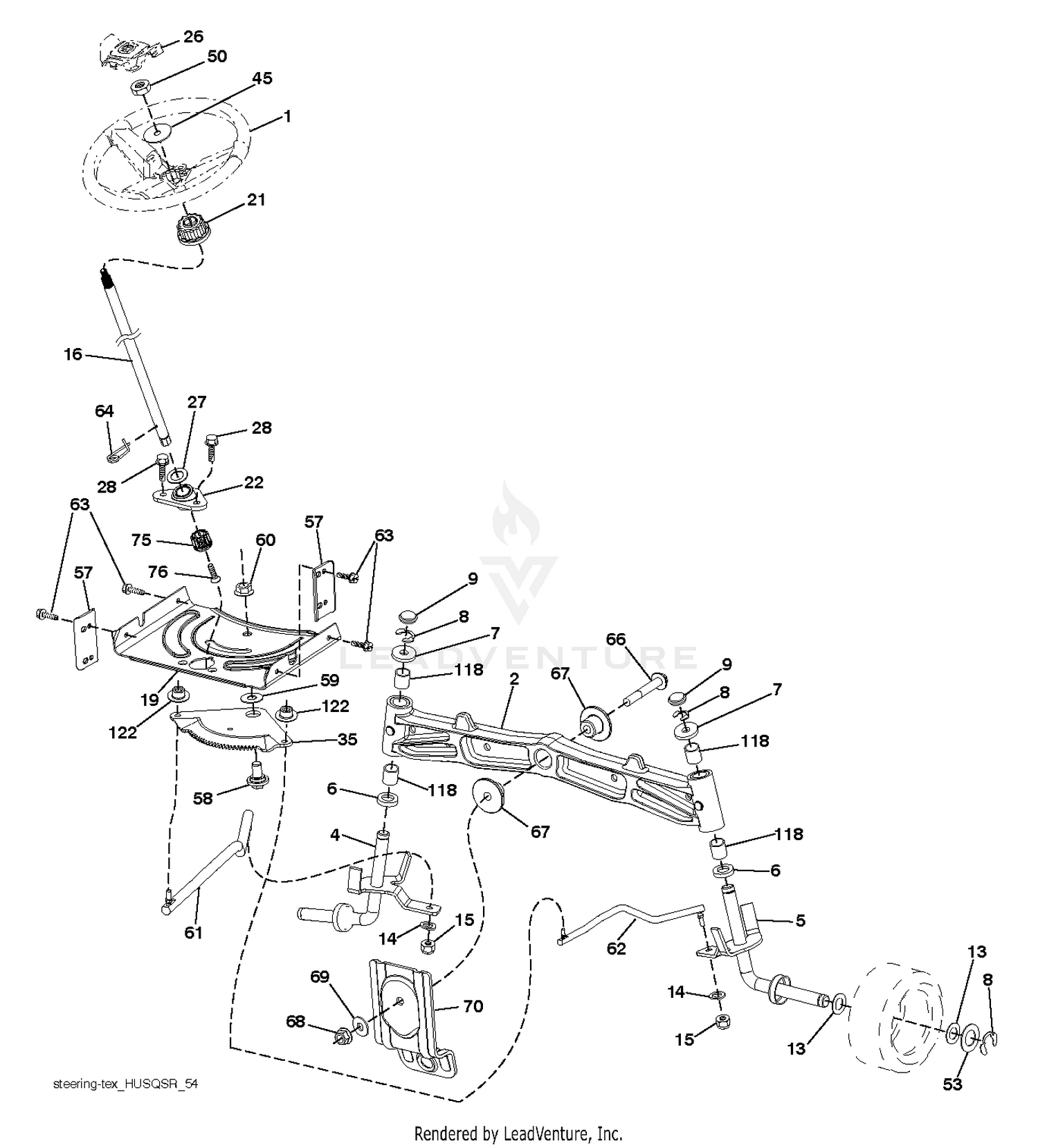

| Ref | Part Number | Description |
|---|
| 1 |
321-5 |
SCREW-HH Price: $0.22 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 2 |
2412-106 |
CLAMP-R Price: $2.04 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX Price: $119.99 |
| 4 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 4 |
596873601 |
SPINDLE.WELDED.LH.15"TEX.X431 This part replaces 532403087. Price: $14.99 |
| 5 |
538691201 |
SPINDLE.WLDMT.RH.15INTIRE.X431 This part replaces 532403088. Price: $19.99 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
92-6059 |
PLUG-BUTTON Price: $0.88 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 7 |
92-9273-03 |
CONSOLE-CENTER Price: $4,636.98 |
| 8 |
32148-6 |
NUT-CLINCH Price: $1.24 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 12 |
33113-016 |
SCREW-HH Price: $0.34 |
| 13 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
68-6150 |
BREATHER Price: $27.22 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 587016002. Price: $34.99 |
| 16 |
98-3844 |
BREATHER TUBE ASM Price: $93.59 |
| 17 |
237-65 |
O-RING Price: $2.50 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
93-9406 |
DECAL-GLASS, SIGHT Price: $28.02 |
| 21 |
58-5940 |
PLUG-GAGE, SIGHT Price: $184.36 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 586840201. Price: $7.99 |
| 22 |
48-6900 |
SCREW Price: $1.52 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 585029802. Price: $14.99 |
| 23 |
92-5682 |
STRIP-SEALING Price: $20.71 |
| 25 |
58-0980-01 |
MUDGUARD-LH Price: $432.91 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 26 |
93-9407 |
DECAL-LEVER, LIFT Price: $17.21 |
| 27 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 31 |
93-9425 |
DECAL-DANGER Price: $28.20 |
| 32 |
93-9408 |
DECAL-OPERATION WARNING Price: $73.30 |
| 33 |
68-7840 |
STRIP-SEALING Price: $19.08 |
| 34 |
340-117 |
CAP Price: $10.30 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 35 |
92-5694 |
HOSE-HYDRAULIC Price: $92.15 |
| 36 |
237-79 |
O-RING Price: $5.46 |
| 37 |
58-1750-03 |
PANEL-ACCESS Price: $270.79 |
| 38 |
92-4746-01 |
MUDGUARD-RH Price: $452.39 |
| 39 |
237-22 |
O-RING Price: $2.43 |
| 42 |
92-4799 |
FITTING-TEE, HYD Price: $159.71 |
| 44 |
48-7890 |
NUT-HEX Price: $0.25 |
| 45 |
321-24 |
SCREW-HH Price: $2.31 |
| 45 |
587016401 |
WASHER.3/8ID.2-3/8OD.12GA.PLTD Price: $2.99 |
| 46 |
237-80 |
O-RING Price: $6.10 |
| 47 |
58-9160 |
PLUG-DRAIN Price: $23.70 |
| 48 |
68-7810 |
PANEL-LINING Price: $140.77 |
| 49 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 50 |
48-7120 |
ELEMENT-SUCTION Price: $153.05 |
| 50 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
3250-36 |
SCREW-PPH Price: $2.41 |
| 53 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 75 |
587738906 |
KIT.SRVC.STEERINGSHAFT.PINION This part replaces 580683702. Price: $4.99 |
| 76 |
580683601 |
SCREW HEAD SOCKET LRVB Price: $2.99 |
| 118 |
532406013 |
BUSHING, AXLE CAST Price: $4.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
