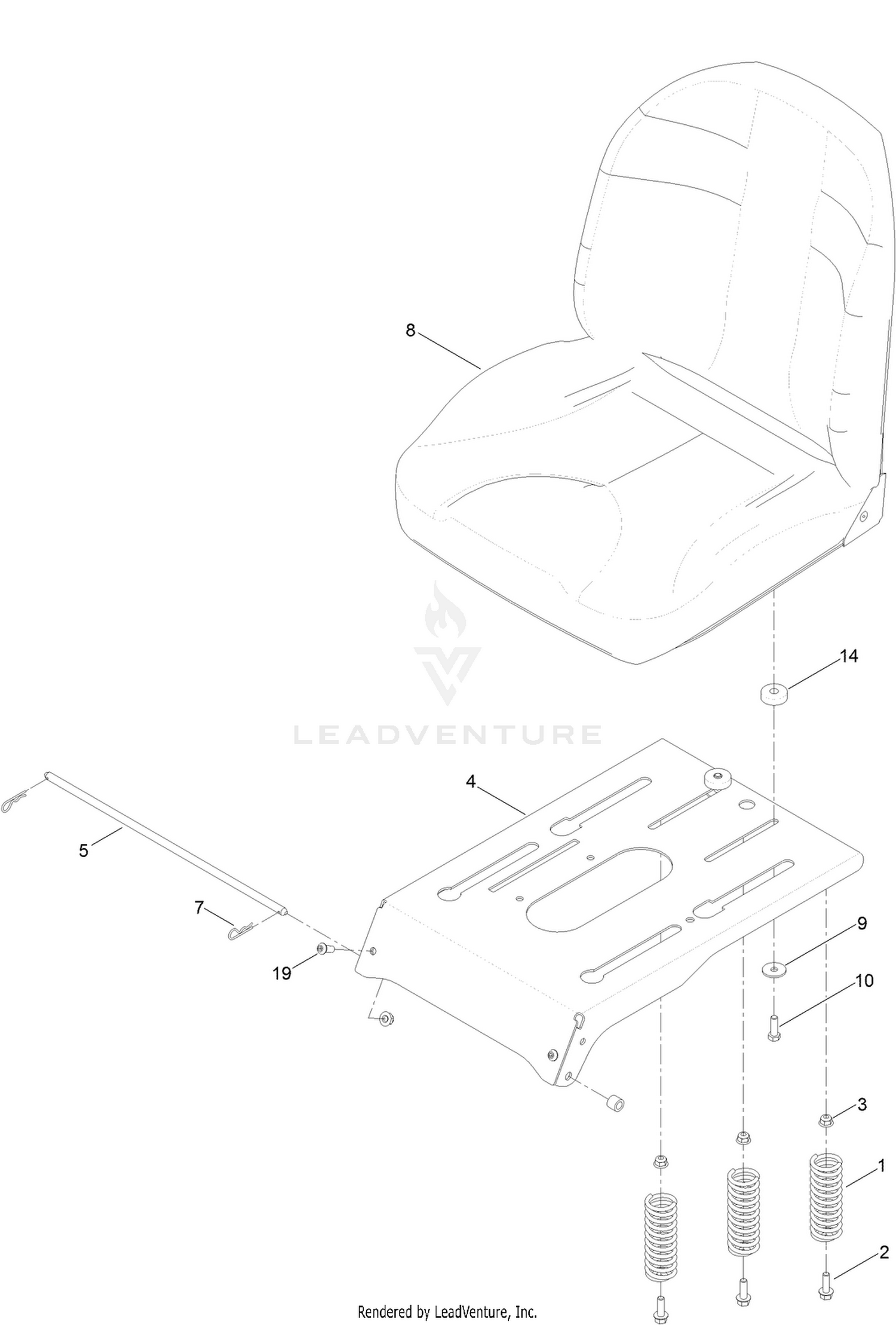

Seat Pan Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 92-7054 | SPRING-COMPRESSION Price: $13.32 |
| 2 | 3234-29 | SCREW-HHF Price: $1.84 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 4 | 136-5571-03 | PAN-SEAT, DELUXE Price: $45.33 |
| 5 | 119-3433 | ROD-PIVOT, NARROW Price: $8.01 |
| 7 | 3290-250 | PIN-COTTER Price: $5.59 |
| 8 | 137-1991 | SEAT ASM(SERVICE) This part replaces 136-5575. Price: $216.88 |
| 9 | 5-4460 | WASHER-PIVOT Price: $6.19 |
| 10 | HY3225 | DISCONTINUED This part replaces 322-5. Price: Call Us |
| 14 | 136-5572 | BUSHING-SLIDE, SEAT Price: $1.63 |
