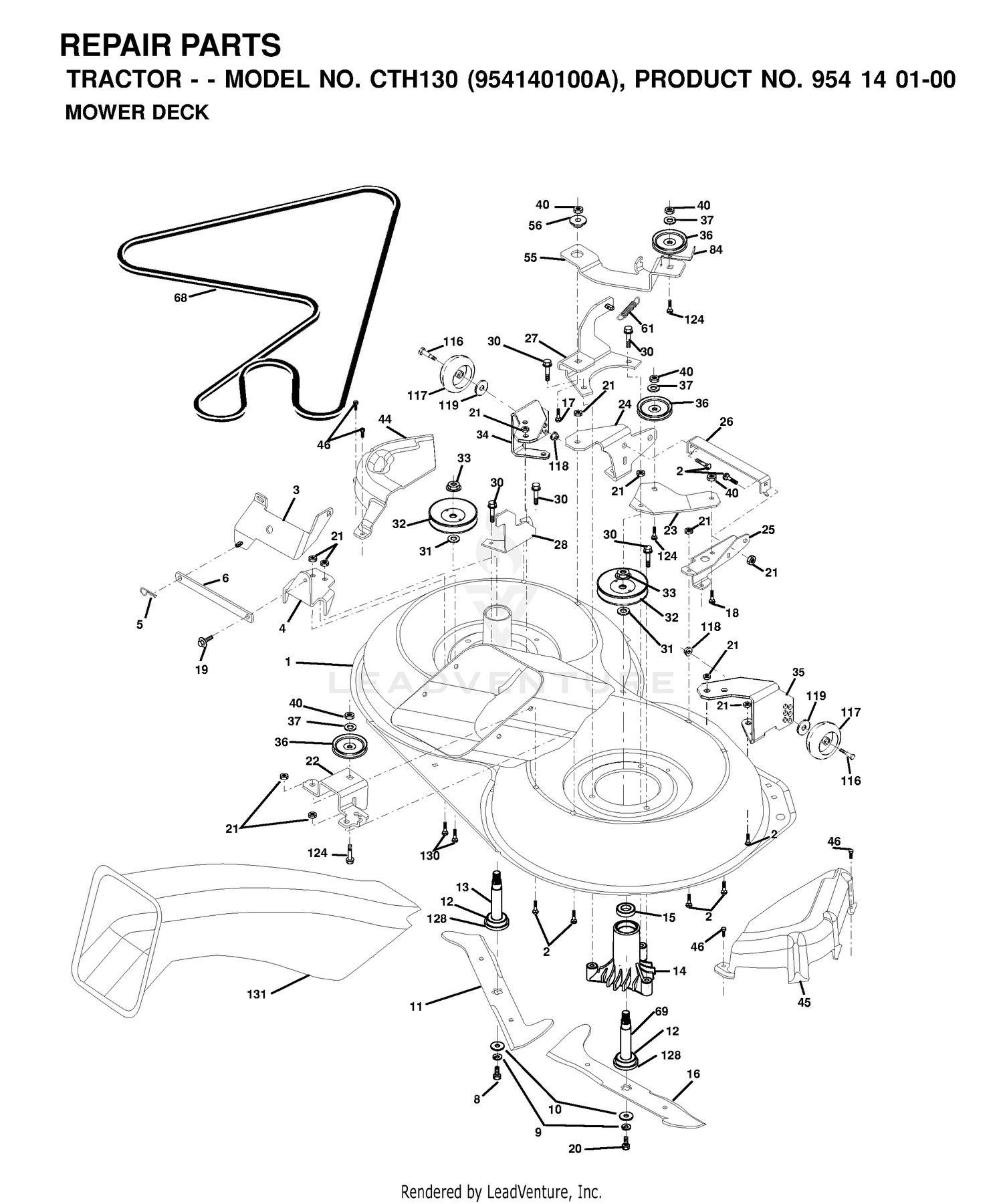

| Ref | Part Number | Description |
|---|
| 1 |
532176029 |
DECK.SVCX1.92.CRD This part replaces 532165552. Price: $229.99 |
| 1 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 3 |
3272-30 |
PIN-COTTER Price: $0.47 |
| 3 |
532165569 |
BRACKET Price: $23.99 |
| 4 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 4 |
532165558 |
BRACKET Price: $14.76 |
| 5 |
110-6006 |
PIN-CLEVIS Price: $31.49 |
| 6 |
532165557 |
BAR.SWAY.92.CRD Price: $6.99 |
| 6 |
93-7972 |
RING-RETAINING, INTERNAL Price: $0.25 |
| 7 |
100-3046 |
SHAFT-BRAKE, SPLINED Price: $192.79 |
| 8 |
136-2941 |
KIT-SERVICE, PLANETARY ASM This part replaces 136-2913. Price: $3,119.29 |
| 10 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 11 |
140-6337 |
PIN ASM This part replaces 100-3017. Price: $55.25 |
| 11 |
532426323 |
KIT.SVC.BLADES.3-1.92.CRD This part replaces 532170037. Price: $49.99 |
| 12 |
100-6116 |
SCREW-HHF Price: $6.41 |
| 12 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 13 |
93-7984 |
GASKET Price: $20.21 |
| 14 |
100-3070 |
LH BRAKE ASM This part replaces 100-3070-03. Price: $802.37 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
33106-080 |
SCREW-HHF Price: $2.80 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
3218-4 |
NUT-JAM Price: $0.49 |
| 16 |
532426322 |
KIT.SVC.BLADES.3-1 L/RH.92.CRD This part replaces 532170038. Price: $49.99 |
| 17 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 18 |
33106-030 |
SCREW-HHF Price: $1.15 |
| 19 |
325-13 |
SCREW-HH Price: $3.57 |
| 22 |
532165243 |
BRACKET Price: $17.99 |
| 23 |
532165446 |
BRACKET Price: $5.99 |
| 24 |
532165242 |
BRACKET Price: $12.99 |
| 25 |
100-3069 |
RH BRAKE ASM This part replaces 100-3069-03. Price: $802.37 |
| 25 |
532165244 |
BRACKET Price: $22.99 |
| 26 |
132-6250-03 |
FRAME-FRONT Price: $2,505.29 |
| 26 |
583259301 |
BRACE.SUSP.FRONT.CRD/36.2006 This part replaces 532165237. Price: $29.99 |
| 27 |
532165568 |
BRACKET Price: $22.99 |
| 28 |
532165567 |
BRACKET Price: $17.99 |
| 32 |
532173434 |
MANDREL PULLEY This part replaces 532153531. Price: $14.99 |
| 34 |
532165239 |
BRACKET Price: $13.30 |
| 35 |
532165238 |
BRACKET Price: $13.30 |
| 36 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 44 |
532165724 |
COVER.MANDREL.LH.92.CRD Price: $52.99 |
| 45 |
532175539 |
COVER.MANDREL.RH.CRD This part replaces 532165556. Price: $17.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 This part replaces 532171253. Price: $3.99 |
| 55 |
532165445 |
ARM IDLER Price: $11.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $5.99 |
| 61 |
532165945 |
SPRING.TENSION.BELT Price: $11.99 |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $59.99 |
| 84 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 128 |
532153390 |
WASHER FELT Price: $3.99 |
| 131 |
532165661 |
CHUTE BAGGER Price: $79.99 |
