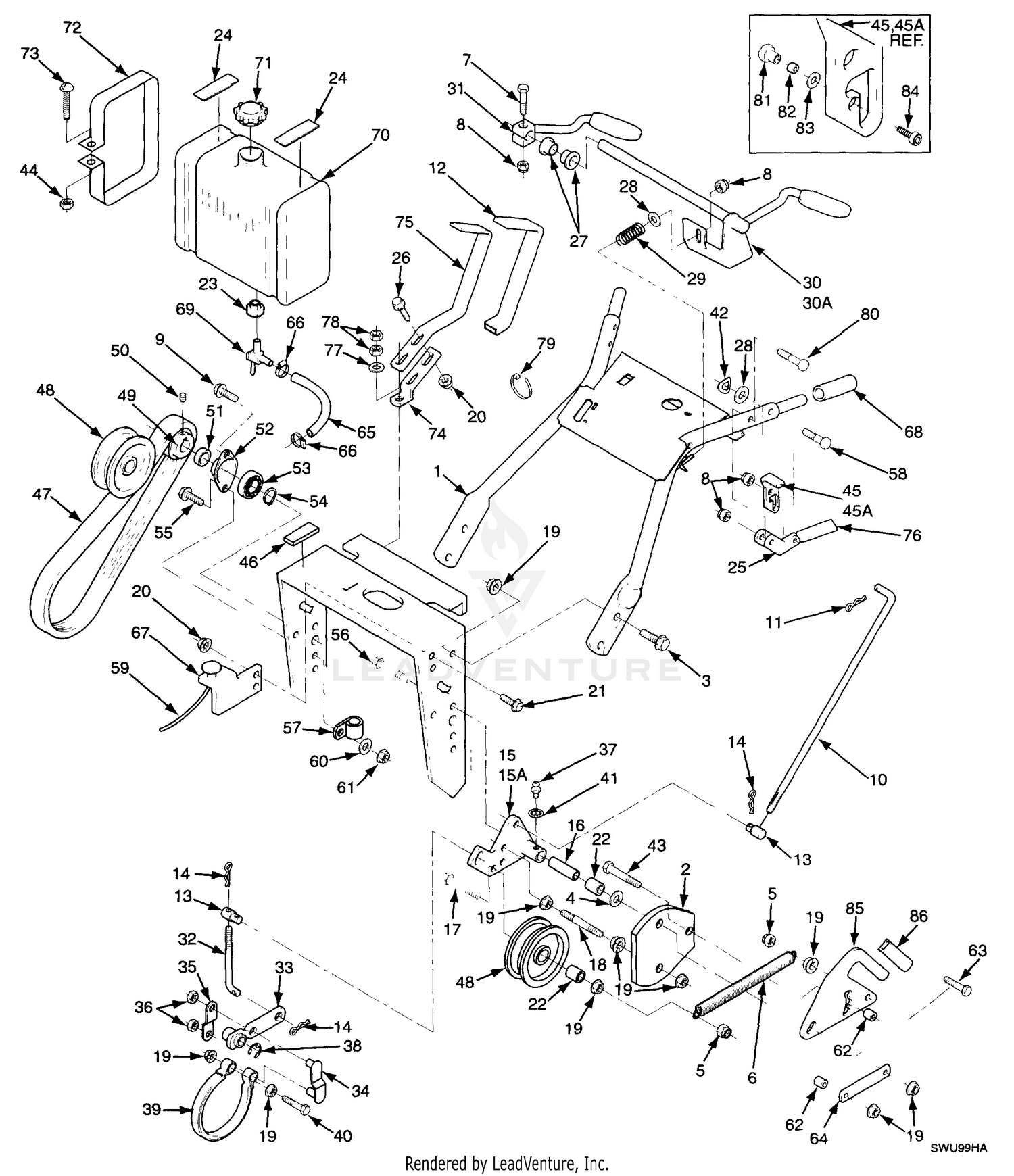

| Ref | Part Number | Description |
|---|
| 1 |
461978 |
HANDLE ASSY W/ DECALS, 16" SW This part replaces 461126. Price: Call Us |
| 2 |
421360 |
Belt Guard Price: Call Us |
| 3 |
04017-27 |
Capscrew, 3/8-16 x 1" Ser. Flange Price: Call Us |
| 4 |
04041-07 |
Flatwasher, 3/8 (.391 x .938 x .105) Price: Call Us |
| 5 |
04021-09 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
| 6 |
481834 |
Spring, Idler Price: Call Us |
| 7 |
04001-10 |
Bolt, 5/16-18 x 1-1/4" Hex Head Price: Call Us |
| 8 |
04021-10 |
Nut, 5/16-18 Elastic Stop Price: Call Us |
| 9 |
04017-05 |
Capscrew, 1/4-20 x 3/4" Hex Head Price: Call Us |
| 10 |
44004 |
Control Rod, Steering Price: Call Us |
| 11 |
04062-02 |
Hair Pin, Small Price: Call Us |
| 13 |
43032 |
Swivel Joint Price: Call Us |
| 14 |
04062-01 |
Hair Pin, Large .094 Diameter Price: Call Us |
| 15 |
45847 |
Idler Bracket, RH Price: Call Us |
| 15A |
45846 |
Idler Bracket, LH Price: Call Us |
| 16 |
43092 |
Idler Sleeve Price: Call Us |
| 17 |
04001-62 |
Bolt, 3/8-16 x 3/4" Hex Head Price: Call Us |
| 18 |
04004-17 |
Support Belt Guard Price: Call Us |
| 19 |
04019-04 |
Nut, 3/8-16 Serrated Flange Price: Call Us |
| 20 |
04019-03 |
Nut, 5/16-18 Serrated Flange Price: Call Us |
| 22 |
43286 |
Spacer Price: Call Us |
| 23 |
482571 |
Bushing This part replaces 48309. Price: Call Us |
| 24 |
48292 |
Rubber Pad, (Upper) Price: Call Us |
| 25 |
483042 |
Steering Lever This part replaces 46089. Price: Call Us |
| 26 |
04017-17 |
Capscrew, 5/16-18 x 1" Ser. Flng. Price: Call Us |
| 27 |
48312 |
Bushing, Operator Presence Price: Call Us |
| 28 |
04040-15 |
Washer, 5/16 (.375 x .875 x .083) Price: Call Us |
| 29 |
48951 |
Spring, Operator Presence Price: Call Us |
| 30 |
45573 |
Operator Presence Lever, LH (Small Frame) Price: Call Us |
| 31 |
45572 |
Operator Presence Lever, RH Price: Call Us |
| 32 |
44005 |
Brake Rod Price: Call Us |
| 33 |
45092 |
Brake Lever Price: Call Us |
| 34 |
45093 |
Brake Link Price: Call Us |
| 35 |
42254 |
Brake Link Plate Price: Call Us |
| 36 |
04024-01 |
Nut, 3/8 Push-on Price: Call Us |
| 37 |
48114-05 |
Greese Fitting, Straight 1/4-28 Price: Call Us |
| 38 |
04050-01 |
Retaining Ring, 5/8 Ext. "E" Price: Call Us |
| 39 |
48210 |
Brake Band Price: Call Us |
| 40 |
04001-45 |
Bolt, 3/8-16 x 2" Hex Head Price: Call Us |
| 42 |
04032-01 |
Curved Spring Washer Price: Call Us |
| 43 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 44 |
04020-02 |
Nut, 1/4-20 Hex Price: Call Us |
| 45 |
461242 |
Neutral Latch, RH This part replaces 46942. Price: Call Us |
| 45A |
461241 |
Neutral Latch, LH This part replaces 46941. Price: Call Us |
| 46 |
48205 |
Rubber Pad (Lower) Price: Call Us |
| 47 |
48202A |
Belt, Wheel Drive Price: Call Us |
| 48 |
483211 |
Idler Pulley, Wheel Drive This part replaces 48198. Price: Call Us |
| 50 |
04012-04 |
Setscrew, Hex Socket Knurl Cup Pt. 5/16-18 (nylock) Price: Call Us |
| 51 |
43098 |
Spacer, Jackshaft Pulley Price: Call Us |
| 52 |
48223 |
Flange, Jackshaft Bearing Price: Call Us |
| 53 |
48224 |
Bearing, Jackshaft Price: Call Us |
| 54 |
04050-09 |
Retaining Ring, 5/8 Ext. Basic Price: Call Us |
| 55 |
04017-06 |
Capscrew, 1/4-20 x 1" Ser. Flange Price: Call Us |
| 56 |
04001-62 |
Bolt, 3/8-16 x 3.25" Price: Call Us |
| 57 |
48030-09 |
Clamp Price: Call Us |
| 58 |
04001-17 |
Bolt, 5/16-18 x 2" Hex Head Price: Call Us |
| 60 |
04040-15 |
Flatwasher, 5/16 (.375 x .875 x .083) Price: Call Us |
| 61 |
04021-02 |
Nut, 1/4-20 Elastic Stop Price: Call Us |
| 62 |
43212 |
Spacer, Deck Assist Price: Call Us |
| 63 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 64 |
422756 |
Bar Price: Call Us |
| 65 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) This part replaces 48058. Price: Call Us |
| 66 |
48059-01 |
Clamp, Fuel Hose Price: Call Us |
| 68 |
48159 |
Grip, Handle Price: Call Us |
| 69 |
483747 |
Ball Valve w/Screen This part replaces 48308. Price: Call Us |
| 71 |
481603 |
Fuel Tank Cap Price: Call Us |
| 72 |
421239 |
Strap, Fuel Tank Price: Call Us |
| 73 |
04010-10 |
Screw, 1/4-20 x 2" Rnd Hd Slotted Price: Call Us |
| 74 |
422279 |
Shift Lever Price: Call Us |
| 76 |
48144 |
Grip, Steering Lever Price: Call Us |
| 77 |
04041-07 |
Washer, 3/8 (.391 x .938 x .105) Price: Call Us |
| 78 |
04020-14 |
Nut, 3/8-24 UNF Price: Call Us |
| 79 |
48028-05 |
Cable Tie Price: Call Us |
| 80 |
04001-53 |
Bolt, 5/16-18 x 2-1/2" Price: Call Us |
| 81 |
461241 |
Neutral Latch, LH This part replaces 481411. Price: Call Us |
| 82 |
481420 |
Bearing Price: Call Us |
| 83 |
04041-23 |
Washer, #8-.170 x .375 x .032 Price: Call Us |
| 84 |
04015-13 |
Capscrew, Socket Head #8-32 x .50" Price: Call Us |
| 85 |
422799 |
Lever, Traction Adjustment Price: Call Us |
