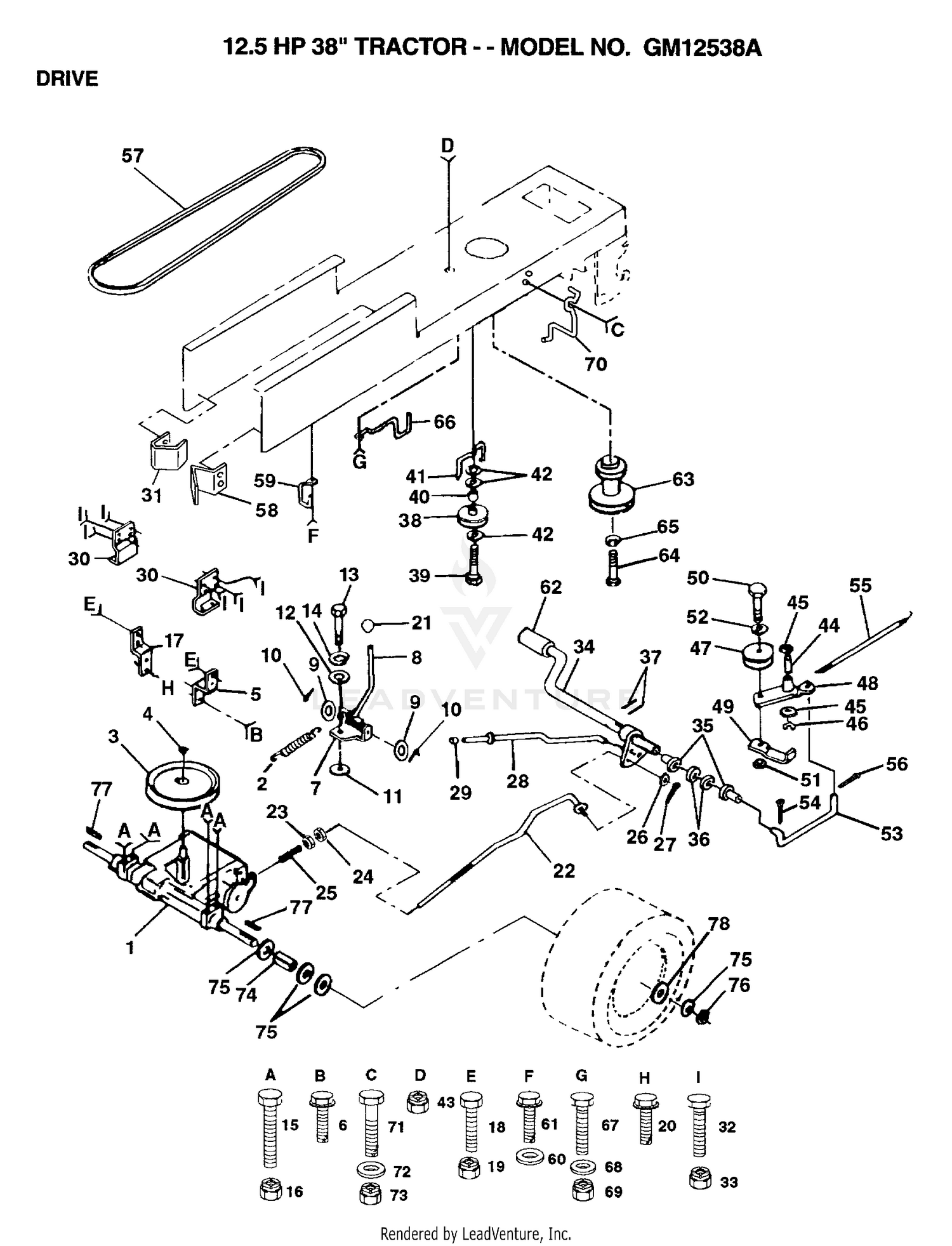

DRIVE

DRIVE

Parts (90)

RefPart NumberDescription
1 137363 SUB= 137367 Price: Call Us
2 110422X SUB= 146682 Price: Call Us
2 52-9230 RING-RETAINING Price: $26.68
3 123666X PULLEY TRANS Price: Call Us
3 52-9240 BUSHING Price: $65.67
4 12000028 SUB= 2267J Price: Call Us
5 121520X STRAP TORQUE Price: Call Us
6 17490512 SCREW Price: Call Us
7 106919X PLATE SHIFT LT Price: Call Us
8 124461X ROD SHIFTER Price: Call Us
9 19151216 WASHER Price: Call Us
10 59-6820 CENTERING SPRING KIT Price: $50.64
10 76020416 PIN COTTER 1/8 Price: Call Us
11 105701X WASH-SHFT PLT LT Price: Call Us
12 19091210 WASHER LT Price: Call Us
13 71040412 SUB= 74550412 Price: Call Us
13 92-9732 PLATE-WEAR Price: $101.64
14 10040400 LOCKWASHER Price: Call Us
14 59-6860 DRIVE Price: $204.59
15 59-6870 GEROTOR Price: $570.98
15 74760644 BOLT Price: Call Us
16 73680600 SUB= 73690600 Price: Call Us
16 92-9730 CAP-END Price: $167.54
17 121520X STRAP TORQUE Price: Call Us
18 74760612 SUB= 74780612 Price: Call Us
18 92-9733 SCREW-CAP Price: $2.23
19 59-6830 CENTERING PIN KIT Price: $3.98
19 73680600 SUB= 73690600 Price: Call Us
20 17490512 SCREW Price: Call Us
20 74-3090 SPRING-ANTI-CAV Price: $6.23
21 106933X KNOB T (1/2-HOLE) Price: Call Us
21 92-9737 PLUG-RETAINER Price: $38.10
22 131867 BRAKE ROD Price: Call Us
22 74-3140 BALL-CHECK, ANTI-CAV Price: $6.84
23 52-9290 RETAINER-CHECKBALL Price: $15.41
23 73800600 NUT Price: Call Us
24 52-9280 CHECKBALL Price: $7.01
24 73350600 NUT Price: Call Us
25 106888X SPRING ROD LT Price: Call Us
26 19131316 WASHER Price: Call Us
26 52-9270 SEAT-CHECKBALL Price: $35.12
27 76020412 COTTER PIN Price: Call Us
28 128904 PARKING BRAKE ROD Price: Call Us
28 52-9260 SCREW-SET Price: $8.09
29 52-9250 BEARING KIT Price: $65.87
29 71673 PLUNGER CAP T Price: Call Us
30 109167X BRACKET LT Price: Call Us
30 92-9749 SEAL KIT Price: $46.95
32 74760612 SUB= 74780612 Price: Call Us
33 73680600 SUB= 73690600 Price: Call Us
34 122424X SUB= 149001 Price: Call Us
35 120183X NYLON BEARING Price: Call Us
36 19211616 WASHER LT Price: Call Us
37 1572H SUB= 2882J Price: Call Us
38 123674X PULLEY.IDLER.FLAT Price: Call Us
39 74760644 BOLT Price: Call Us
40 4470J SPACER T Price: Call Us
41 109070X BELT KEEPER LT Price: Call Us
42 19131312 WASHER Price: Call Us
43 73680600 SUB= 73690600 Price: Call Us
45 110812X WASHER LT Price: Call Us
46 12000039 KLIP RING Price: Call Us
47 127783 SUB= 139245 Price: Call Us
48 123789X ARM IDLER Price: Call Us
49 123205X RETAIN BELT Price: Call Us
50 74760624 SUB= 74930624 Price: Call Us
51 73680600 SUB= 73690600 Price: Call Us
52 19131316 WASHER Price: Call Us
54 76020412 COTTER PIN Price: Call Us
56 76020412 COTTER PIN Price: Call Us
57 125907X BELT-V.90.0.GD.DR Price: Call Us
59 136715 SUB= 140312 Price: Call Us
60 19131312 WASHER Price: Call Us
61 17490612 SCREW Price: Call Us
62 8883R PEDAL COVER T Price: Call Us
63 134825 SUB= 136004 Price: Call Us
64 71170764 BOLT Price: Call Us
65 10040700 LOCKWASHER Price: Call Us
66 129921 KEEPER.BELT.ENG.L Price: Call Us
67 74760616 BOLT Price: Call Us
68 19131312 WASHER Price: Call Us
69 73680600 SUB= 73690600 Price: Call Us
70 134683 KEEPER BELT ENG Price: Call Us
71 74760616 BOLT Price: Call Us
72 19132012 WASHER Price: Call Us
73 73680600 SUB= 73690600 Price: Call Us
74 109502X SPACER LT Price: Call Us
75 121749X WASHER Price: Call Us
76 12000001 E-RING LT Price: Call Us
77 123583X SQUARE KEY Price: Call Us
