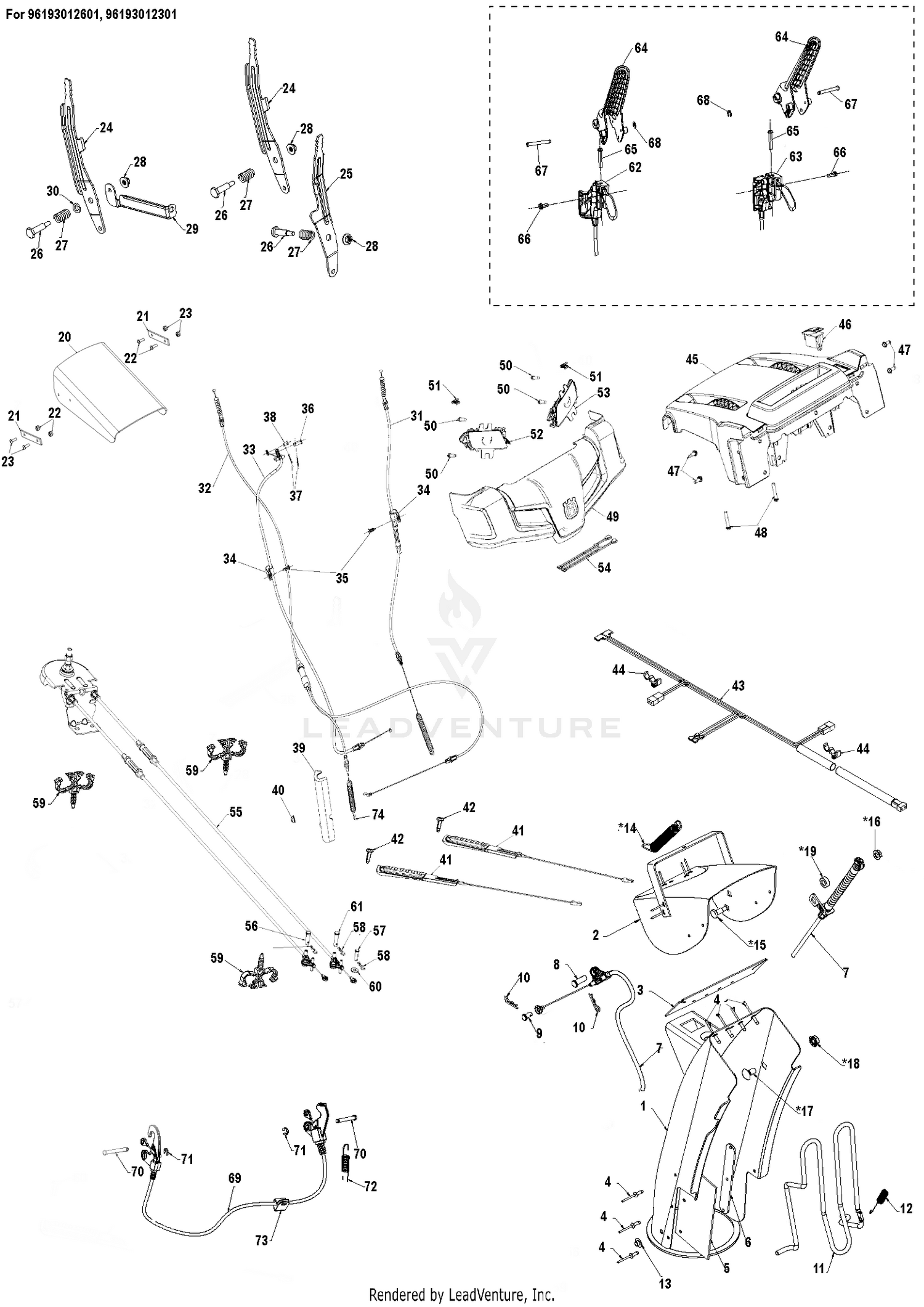

| Ref | Part Number | Description |
|---|
| 1 |
590518207 |
DEFLECTOR ASSEMBLY RIVETED This part replaces 588077802. Price: $17.99 |
| 7 |
590587002 |
CABLE CONTROL.CHUTE.DEFLECTOR. Price: $19.99 |
| 8 |
581329401 |
PIN CLEVIS 5/16X.875 Price: $2.99 |
| 9 |
585808301 |
PIN CLEVIS .25 X .31 Price: $3.99 |
| 10 |
583404901 |
HAIRPIN.SOFT.ZINC.059X1.125 This part replaces 532423303. Price: $2.99 |
| 11 |
593622201 |
GUARD ROD CHUTE GUARD SHORT CL Price: $11.99 |
| 12 |
532435616 |
SPRING.CHUTE.GUARD Price: $2.99 |
| 13 |
582935201 |
PAL NUT PM This part replaces 532059349. Price: $2.99 |
| 20 |
532421138 |
SHIELD.DEFLECTOR.BLACK.SNOW Price: $29.99 |
| 21 |
532435831 |
STRAP.DEFLECTOR.SHEILD This part replaces 532421139. Price: $4.99 |
| 22 |
586118001 |
SCREW.MACHINE.8-32 X 1/2-BLK Price: $2.99 |
| 23 |
586118101 |
NUT.HEX.NYLOCK Price: $2.99 |
| 24 |
581123902 |
LEVER.CONTROL.SPEED/DEFLEC.BLK Price: $7.99 |
| 25 |
581241602 |
LEVER.CONTROL.CHUTE.ROTATON.BL Price: $14.99 |
| 26 |
581329702 |
BOLT SHOULDER_HEX HD_1/4-20_3/ Price: $2.99 |
| 27 |
581329601 |
SPRING.COMPRESSION.82LBS Price: $3.99 |
| 28 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK Price: $3.99 |
| 29 |
584468402 |
BRACE.SUPPORT.SPEED.BLACK Price: $7.99 |
| 30 |
587031301 |
WASHER.FLAT.625 X .375 NYLON Price: $2.99 |
| 31 |
501656602 |
CABLE DRIVE WITH ADJUSTER Price: $19.99 |
| 32 |
579763601 |
CABLE IMPELLER Price: $32.99 |
| 33 |
588122301 |
CABLE.CONTROL.SPEED.DSST.OPP Price: $9.99 |
| 34 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 35 |
532428124 |
FASTENER.PUSH.O.250X0.783 Price: $1.99 |
| 36 |
581329401 |
PIN CLEVIS 5/16X.875 Price: $2.99 |
| 37 |
583404901 |
HAIRPIN.SOFT.ZINC.059X1.125 This part replaces 532423303. Price: $2.99 |
| 38 |
585808301 |
PIN CLEVIS .25 X .31 Price: $3.99 |
| 39 |
589265201 |
COVER AUGER CABLE Price: $9.99 |
| 40 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 41 |
590493601 |
GRIP.HANDLE.HEATED Price: $19.99 |
| 42 |
532442250 |
SCREW.PAN.HD.TORX.1/4-20X.750 Price: $3.99 |
| 43 |
587535701 |
HARNESS WIRE.LIGHT AND GRIPS Price: $19.99 |
| 44 |
532145006 |
PUSH CLIP Price: $2.99 |
| 45 |
581131212 |
CONSOLE BASE MULTI CONTROL This part replaces 581131204. Price: $44.99 |
| 46 |
585805001 |
SWITCH HEATED GRIP BLK Price: $14.99 |
| 47 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 48 |
581329501 |
SCREW HEX_WASH_13-16 X 1.50_H Price: $4.99 |
| 49 |
581127901 |
COVER CONSOLE_ASM_HUSQVARNA Price: $44.99 |
| 50 |
532194189 |
SCREW.HWH.13-16-5.8.BZP Price: $4.99 |
| 51 |
581928701 |
CLIP PANEL ERGO 30603 Price: $4.99 |
| 54 |
585868301 |
HARNESS.WIRE.LIGHT.JUMPER Price: $8.99 |
| 55 |
598803401 |
Chutes This part replaces 581680302. Price: $54.99 |
| 56 |
581329401 |
PIN CLEVIS 5/16X.875 Price: $2.99 |
| 57 |
877100812 |
PIN.CLEVIS Price: $2.99 |
| 59 |
584652201 |
CLIP.CONDUIT.DOUBLE LOOP Price: $2.99 |
| 60 |
586682101 |
WASHER FLAT_.250 X .625 X .06 Price: $2.99 |
| 61 |
587130803 |
PIN CLEVIS CLEVIS Price: $2.99 |
| 62 |
588263901 |
CABLE.POWER STEERING.LHS Price: $14.99 |
| 63 |
588263902 |
CABLE.POWER STEERING.RHS Price: $14.99 |
| 64 |
582917801 |
LEVER ENGAGMENT Price: $9.99 |
| 65 |
581329501 |
SCREW HEX_WASH_13-16 X 1.50_H Price: $4.99 |
| 66 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 67 |
583473901 |
PIN.GROOVED Price: $2.99 |
| 68 |
812000014 |
E-RING Price: $3.99 |
| 69 |
593853401 |
CABLE INTERLOCK CONTROL ACETAL Price: $19.99 |
| 70 |
583473901 |
PIN.GROOVED Price: $2.99 |
| 71 |
812000014 |
E-RING Price: $3.99 |
| 72 |
581151202 |
NEEDS DESCRIPTION This part replaces 581151201. Price: $2.99 |
| 73 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 74 |
594716501 |
SPRING EXTENSION; AUGER EXTENS Price: $4.99 |
