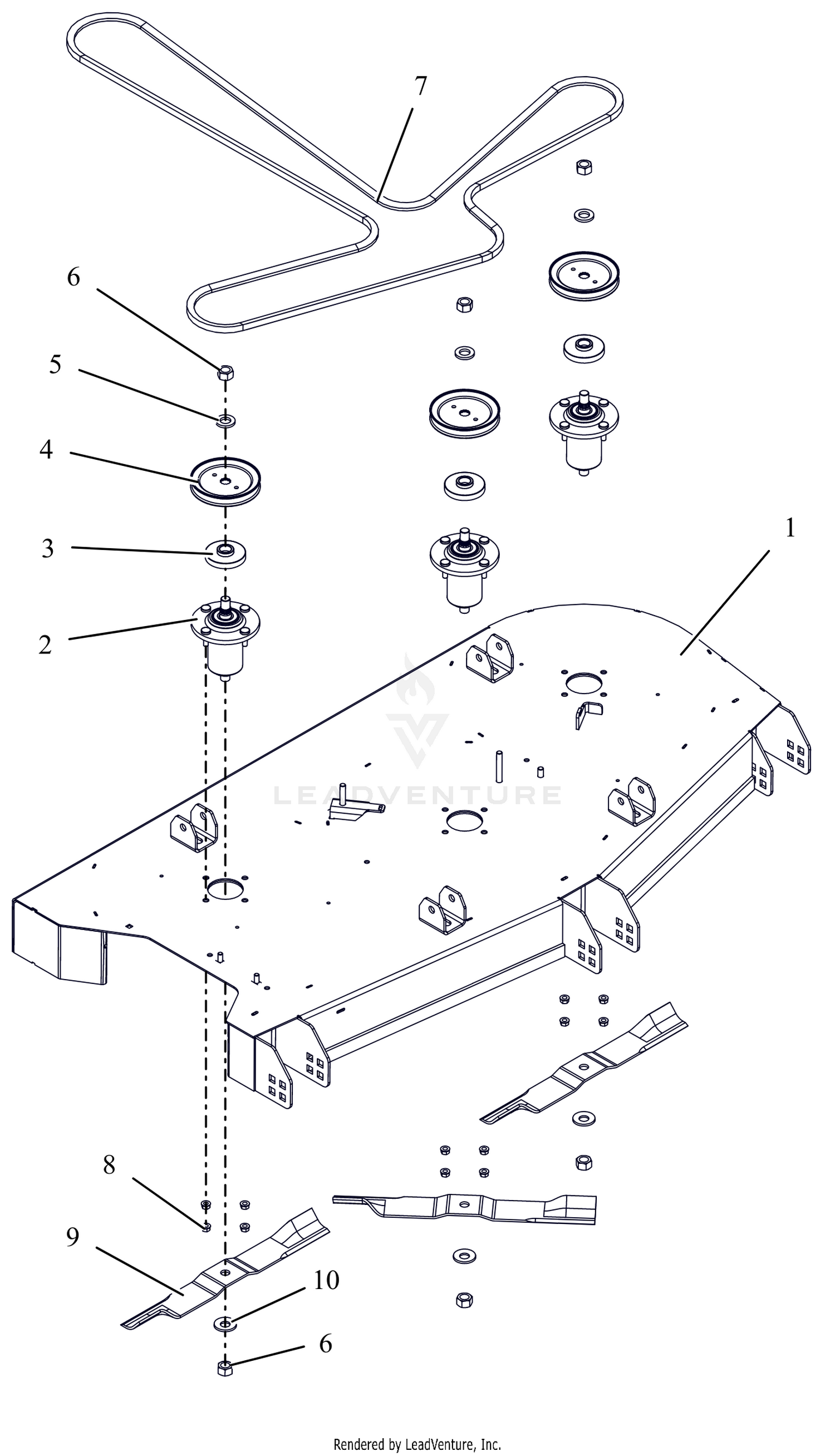

Deck, Belt, Blades, and Spindles
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 51802300 | KIT,ARIENS DECK 52" WITH DECALS Price: $611.95 |
| 2 | 30138800 | ASM, ALUMINUM SPINDLE SUB Price: $87.95 |
| 3 | 09482000 | SHIELD, DUST Price: $8.45 |
| 4 | 07351602 | PULLEY, V-4.75 ODX.625 SPLINE ID Price: $17.45 |
| 5 | 05501510 | SPACER Price: $6.45 |
| 6 | 06500920 | NUT-STD .625-18 ZCC Price: $1.95 |
| 7 | 07200921 | V-BELT, HA SECTION Price: $109.95 |
| 8 | 06500840 | NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 9 | 09659100 | BLADE, MOWER 18.0" Price: $22.95 |
