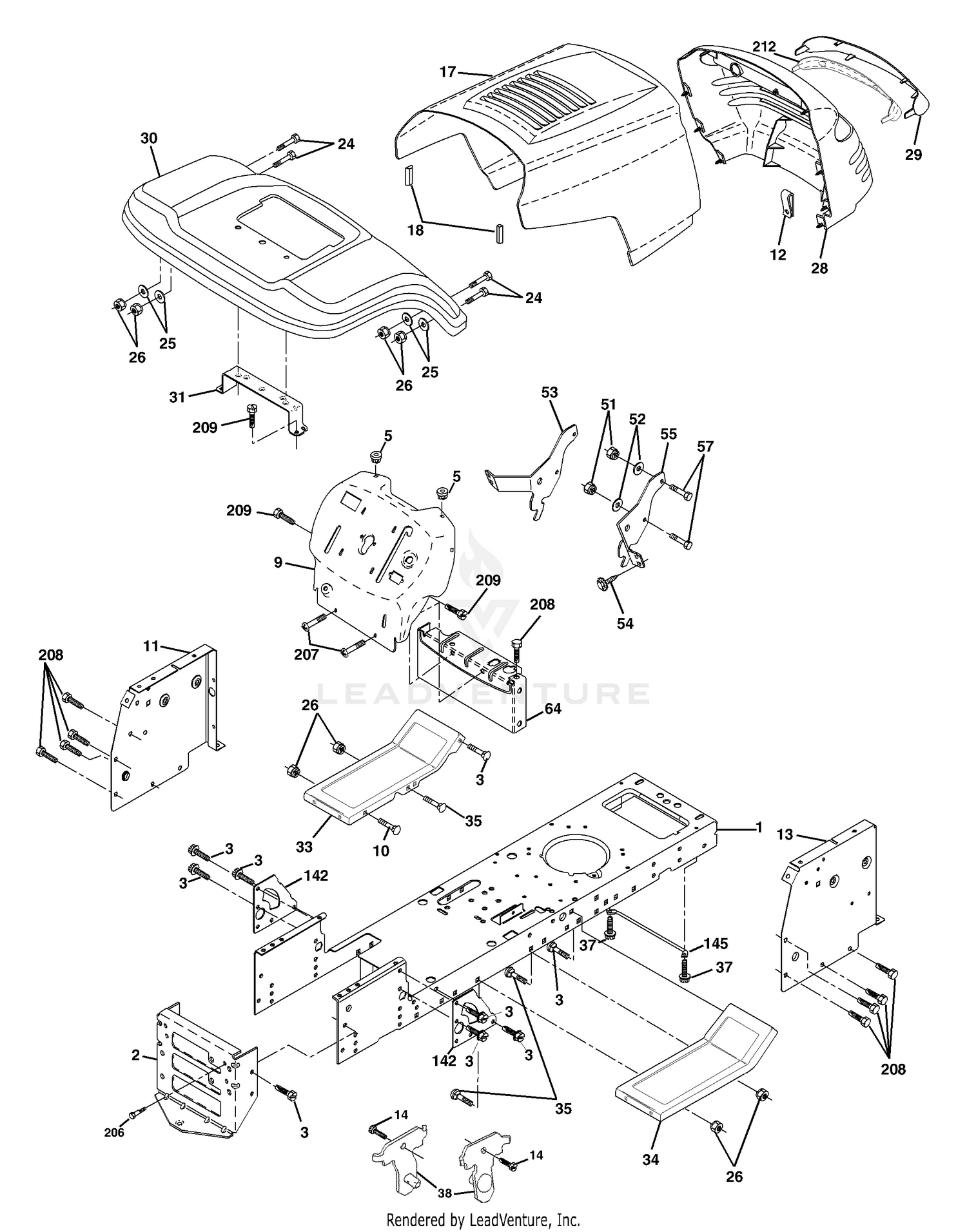

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 1 |
3296-60 |
NUT-LOCK, NI Price: $5.08 |
| 2 |
104-3548 |
PULLEY-DRIVEN, HIGH Price: $157.35 |
| 2 |
176554 |
Drawbar Price: Call Us |
| 3 |
112-8446 |
SEAL-V RING This part replaces 104-3564. Price: $4.26 |
| 3 |
17060612 |
Screw 3/8-16x.75 Price: Call Us |
| 4 |
119-4546 |
SPINDLE HOUSING ASM This part replaces 104-3552. Price: $244.67 |
| 5 |
138-6416 |
SPACER-SPINDLE, SHAFT This part replaces 92-9800. Price: $18.44 |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 6 |
104-3554 |
SHAFT-SPINDLE Price: $67.98 |
| 7 |
104-8322 |
WASHER-HARDENED Price: $23.22 |
| 9 |
168336X010 |
Dash P/L Price: Call Us |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash Lh Price: Call Us |
| 12 |
145660 |
Clip Tinnerman Price: Call Us |
| 13 |
172105X010 |
Panel Dash Rh Price: Call Us |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1-1/4 Price: Call Us |
| 17 |
159639X428 |
Hood LT/PL Price: Call Us |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 x 1 Gr 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 Unc Price: Call Us |
| 28 |
179844 |
Grille LT/PL Price: Call Us |
| 29 |
170472X599 |
Lens LT/PL Price: Call Us |
| 30 |
169468X428 |
Fender Footrest STLT Pnt Price: Call Us |
| 31 |
136619 |
Bracket Support Fender Price: Call Us |
| 33 |
179716X428 |
Footrest Pnt Lh Price: Call Us |
| 34 |
179717X428 |
Footrest Pnt Rh Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Rear Price: Call Us |
| 51 |
73800400 |
Nut Lock Hex W/Ins 1/4-20 Price: Call Us |
| 52 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 53 |
144697 |
Bracjet Grukke Lh Price: Call Us |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 55 |
144696 |
Bracket Grille Rh Price: Call Us |
| 57 |
74780412 |
Bolt Hex 1/4-20 x 3/4 Price: Call Us |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdr. 3/8-16 x 3/4 Price: Call Us |
| 212 |
156229 |
Insert Lens Reflect P/L LT Price: Call Us |
