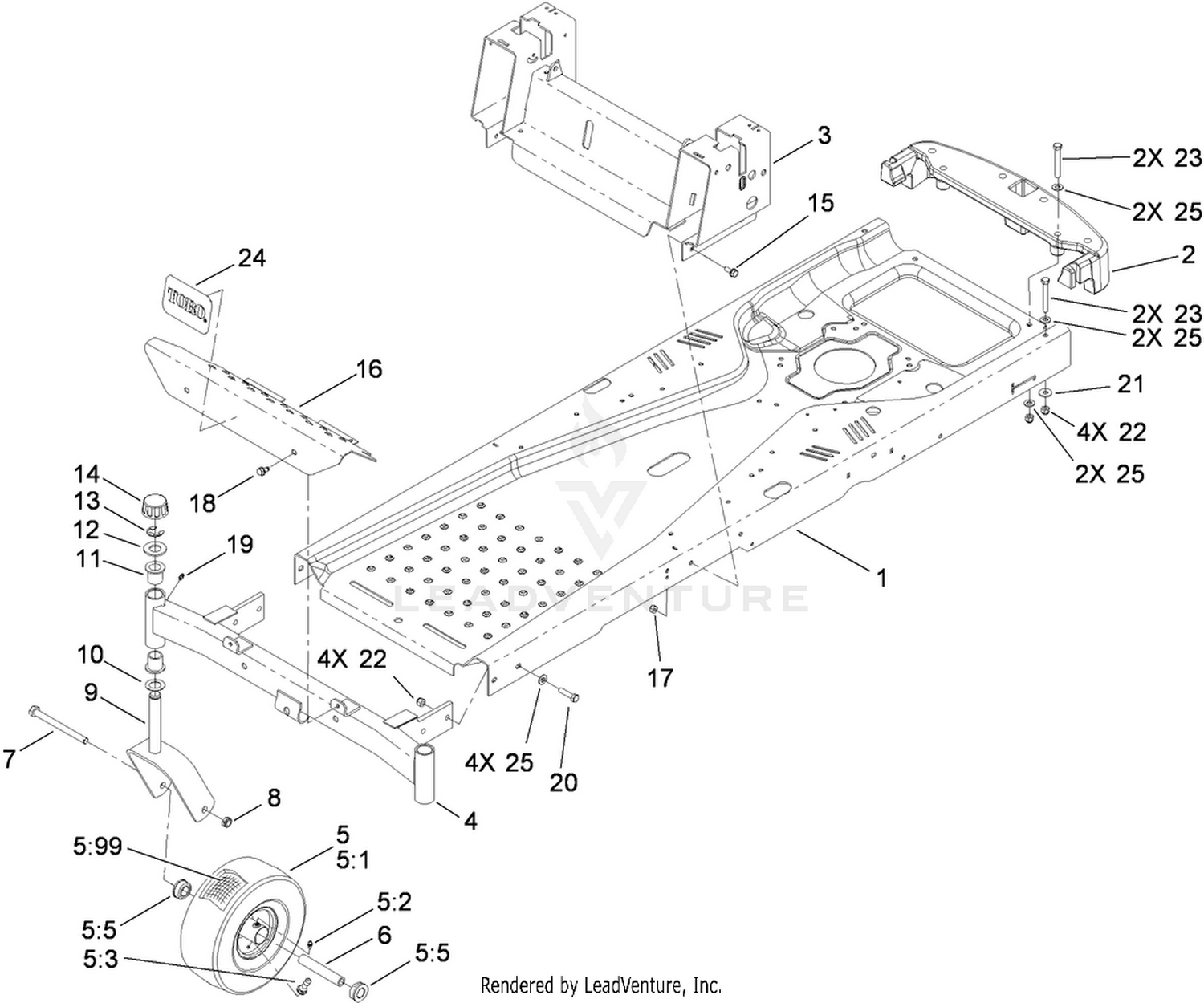

Frame Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-2464-01 | FRAME Price: $501.43 |
| 2 | 110-6899-03 | BUMPER-REAR Price: $131.31 |
| 3 | 115-5041-03 | SEAT PIVOT/CONTROL ASM Price: $155.85 |
| 4 | 108-7882-01 | FRONT AXLE ASM Price: $226.85 |
| 5 | 105-3471 | FRONT WHEEL AND TIRE ASM Price: $62.92 |
| 6 | 104-3667 | BUSHING-SPANNER Price: $12.64 |
| 7 | 325-22 | SCREW-HH Price: $4.26 |
| 8 | 3296-45 | NUT-HEX Price: $3.79 |
| 9 | 108-7851-01 | CASTER FORK ASM Price: $40.51 |
| 10 | 110-6767 | WASHER-THRUST Price: $1.10 |
| 11 | 1-303514 | BEARING-FLANGED Price: $8.02 |
| 12 | 104-8076 | WASHER Price: $3.22 |
| 13 | 32151-103 | RING-RETAINING, EXT Price: $2.09 |
| 14 | 61-9780 | CAP-HUB Price: $7.29 |
| 15 | 3234-47 | SCREW-HHF Price: $1.79 |
| 16 | 108-7855-03 | FOOTREST Price: $46.58 |
| 17 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 18 | 32104-32 | SCREW-HWH Price: $1.99 |
| 19 | 302-5 | FITTING-GREASE Price: $0.59 |
| 20 | 323-8 | SCREW-HH Price: $1.20 |
| 21 | 80-6990 | WASHER-HARDENED Price: $3.06 |
| 22 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 23 | 119-4162 | SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 24 | 99-2385 | DECAL Price: $2.93 |
