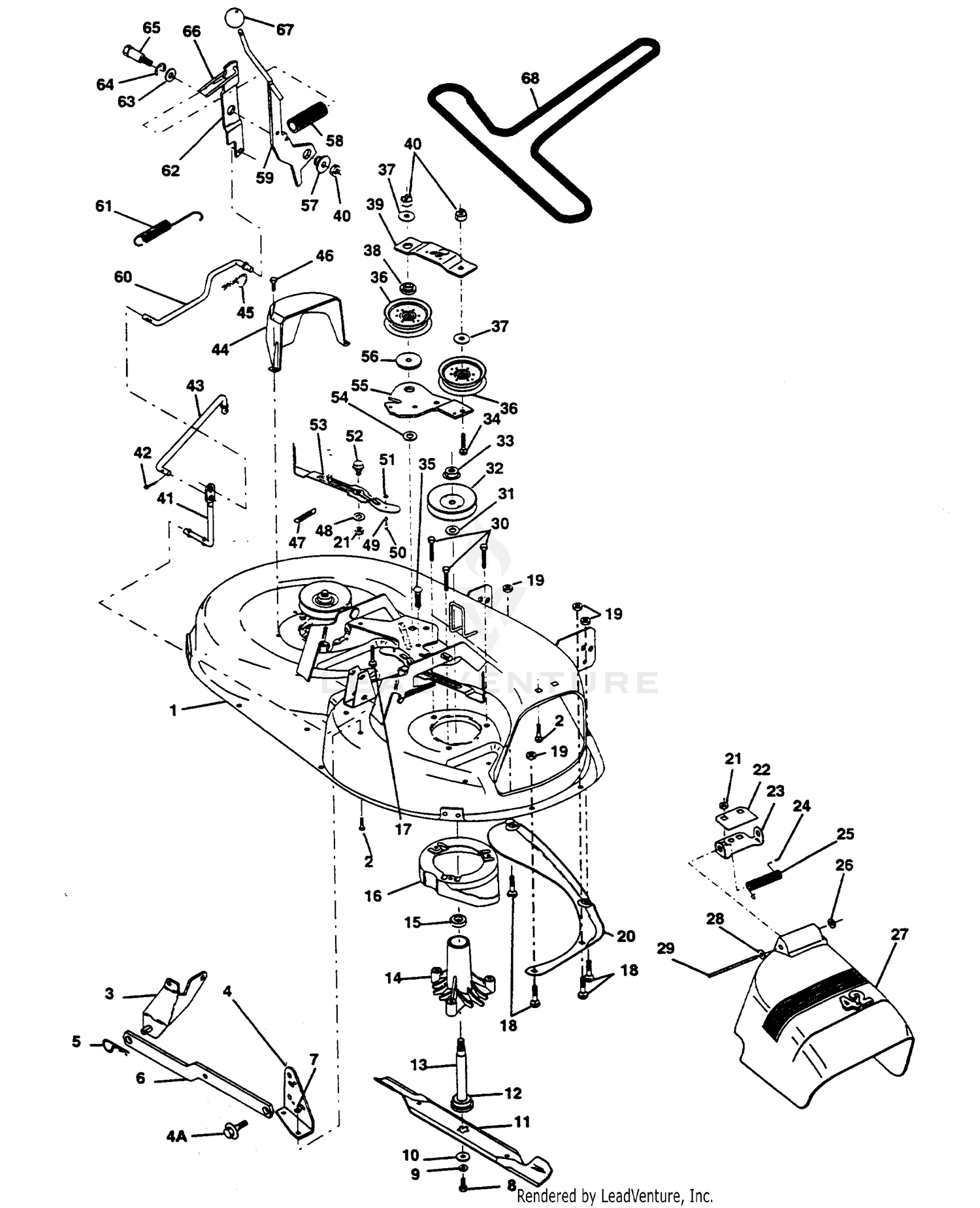

| Ref | Part Number | Description |
|---|
| 1 |
115-8293-0P |
TUBE-SHORT This part replaces 115-8293-03. Price: $224.35 |
| 1 |
532145338 |
DECK CONVERSION KIT 42" T-PATH This part replaces 532138024. Price: $379.99 |
| 2 |
114-5410 |
SHAFT-SHORT, REAR ROLLER Price: $128.74 |
| 2 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
532138017 |
Bracket Asm Fr Sway Bar 38/42 (AYP part number) Price: $7.99 |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
532138440 |
Bracket Asm Deck 42"sway Bar (AYP part number) Price: $3.99 |
| 4a |
532132827 |
Bolt Shoulder (AYP part number) Price: $2.99 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
532124670 |
Retainer Spring (AYP part number) Price: $5.99 |
| 6 |
114-5411 |
NUT-LOCK, BEARING Price: $24.46 |
| 6 |
532178024 |
BAR SWAY DECK This part replaces 532130832. Price: $5.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
873800500 |
Locknut-hex W/ins 5/16-18unc P (AYP part number) Price: $2.99 |
| 8 |
532850857 |
Bolt 3/8 - 24 X 1.25 Gr 8 (AYP part number) Price: $1.99 |
| 9 |
539990118 |
SLW 3/8 STD This part replaces 810030600. Price: $1.99 |
| 10 |
532140296 |
WASHER.BLADE This part replaces 532129962. Price: $2.99 |
| 12 |
532129895 |
Bearing Ball #6024 (Mandrel) (AYP part number) Price: $6.99 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $17.99 |
| 14 |
532128774 |
Housing Mandrel Vented Price: $22.99 |
| 15 |
532110485 |
Bearing Ball Mandrel (AYP part number) Price: $7.99 |
| 16 |
532174493 |
STRIPPER.MANDREL.ROUND.BLACK This part replaces 532136929. Price: $3.99 |
| 17 |
872110618 |
Bolt Rdhd Sqnk 3/8-16 X 2-1/4 (AYP part number) Price: $2.99 |
| 18 |
872140505 |
Bolt Rdhd Sqnk 5/16-18 X 5/8 (AYP part number) Price: $2.99 |
| 19 |
873800500 |
Locknut-hex W/ins 5/16-18unc P (AYP part number) Price: $2.99 |
| 20 |
532159770 |
BAFFLE.VORTEX This part replaces 532136888. Price: $12.99 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
532134753 |
Stiffener Bracket 42"deck (AYP part number) Price: $5.99 |
| 23 |
532177563 |
BRKT, DEFL. MOWER This part replaces 532131267. Price: $2.99 |
| 24 |
532105304 |
Cap Sleeve 80x 112 Blk Mower (AYP part number) Price: $2.99 |
| 25 |
532123713 |
Spring Torsion Deflector 2 52 (AYP part number) Price: $3.99 |
| 26 |
532110452 |
Nut Push Phos & Oil (AYP part number) Price: $1.99 |
| 27 |
532130968 |
Shield Deflector Mower 42" Blk (AYP part number) Price: $22.99 |
| 28 |
819111016 |
Washer 11/32 X 5/8 X 16 Ga (AYP part number) Price: $5.99 |
| 29 |
532131491 |
Rod Hinge 42"6 75 Wlg (AYP part number) Price: $1.99 |
| 30 |
817580520 |
Screw Thdrol. 5/16-18 x 1.25 (AYP part number) This part replaces 532078158. Price: $2.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $1.99 |
| 32 |
532129861 |
Pulley Mandrel 42" (AYP part number) Price: $17.99 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $4.99 |
| 34 |
872110614 |
Bolt Rdhd 3/8-16uncx1-3/4 Gr5 (AYP part number) Price: $3.99 |
| 35 |
532133835 |
Fastner Christmas Tree (AYP part number) Price: $3.99 |
| 36 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532131494. Price: $14.99 |
| 37 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) Price: $3.99 |
| 38 |
532133502 |
Spacer Arm Idler Upper Hdn 42" (AYP part number) Price: $2.99 |
| 39 |
532133503 |
Stiffener Arm Idler Upper 42" (AYP part number) Price: $3.99 |
| 40 |
873680600 |
Nut Crownlock 3/8-16 Unc Price: $1.99 |
| 41 |
532133551 |
Rod Pivot W/nibs (AYP part number) Price: $4.99 |
| 42 |
876020308 |
Pin, Cotter 3/32 x 1/2 (AYP part number) This part replaces 876020312. Price: $1.99 |
| 43 |
532133504 |
Rod Clutch Secondary W/nibs (AYP part number) Price: $6.99 |
| 44 |
532140088 |
GUARD MANDREL LH BLACK This part replaces 532134236. Price: $14.99 |
| 45 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 46 |
532137729 |
Screw Thdrol 1/4-20x5/8 T (AYP part number) Price: $2.99 |
| 47 |
532179748 |
SPRING This part replaces 532131335. Price: $1.99 |
| 48 |
532133944 |
Washer Hardened Smaller (AYP part number) Price: $2.99 |
| 49 |
532174284 |
ROLLER ASM CAM FOLLOWER This part replaces 532133940. Price: $6.99 |
| 50 |
532131340 |
Bolt Shldr 10-24 Zinc Gr 5 42" (AYP part number) Price: $2.99 |
| 51 |
532069180 |
Nut Lock #10-24 Unc (AYP part number) Price: $2.99 |
| 52 |
532139888 |
BOLT.SHOULDER.5/16-18 This part replaces 532105529. Price: $2.99 |
| 53 |
532184907 |
ARM BRAKE ASSY This part replaces 532131845. Price: $11.99 |
| 54 |
532178515 |
WASHER This part replaces 532133943. Price: $2.99 |
| 55 |
532151785 |
CAM ROLLER KIT This part replaces 532133844. Price: $27.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $2.99 |
| 57 |
532127498 |
Bushing 747 Od X 794 Lg Brass (AYP part number) Price: $4.99 |
| 58 |
532153701 |
SPRING-CLUTCH This part replaces 532128759. Price: $4.99 |
| 59 |
532133573 |
Arm Asm Clutch Primary (AYP part number) Price: Call Us |
| 60 |
532142655 |
ROD, CLUTCH ASM. This part replaces 532134666. Price: $9.99 |
| 61 |
532131870 |
Spring Return (AYP part number) Price: $11.99 |
| 62 |
532127847 |
Arm Clutch Secondary (AYP part number) Price: $2.99 |
| 63 |
532121748 |
Washer 25/32 X 1-5/8 X 16 Ga (AYP part number) Price: $1.99 |
| 64 |
812000029 |
Ring Klip #t5304-75 (AYP part number) Price: $1.99 |
| 65 |
532128903 |
Bolt Shoulder 3/8-16 Unc 1 44 (AYP part number) Price: $3.99 |
| 66 |
532127845 |
Keeper Spring 4 000 (AYP part number) Price: $4.16 |
| 67 |
532106932 |
Knob Rd 3/8-16 Plstc Thds Blk (AYP part number) Price: $2.99 |
| 68 |
532130969 |
V-Belt Mower 42" 92 40 (AYP part number) Price: $22.99 |
