| Ref | Part Number | Description |
|---|
| 1 |
322-1 |
SCREW-HH Price: $0.22 |
| 2 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 3 |
115-3259 |
KIT-SERVICE, PIN This part replaces 10-6110. Price: $39.21 |
| 4 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 5 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 6 |
105-3822 |
HYD CYLINDER ASM This part replaces 83-2580. Price: $533.45 |
| 7 |
140-5248 |
PIN-PIVOT RAM, WELDED This part replaces 10-6060. Price: $25.64 |
| 8 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 9 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 10 |
5-1226 |
WASHER Price: $3.90 |
| 11 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 12 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 13 |
137-9706 |
DECAL-WARNING This part replaces 93-8064. Price: $4.48 |
| 13 |
84-6560 |
DECAL-WARNING (JAPAN) Price: $18.28 |
| 14 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 15 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 16 |
3-1506 |
BUSHING Price: $2.42 |
| 17 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 18 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 19 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 20 |
133-2337 |
ROLLER ASM This part replaces 52-2720. Price: $176.14 |
| 21 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 22 |
133-2378 |
BEARING This part replaces 251-141. Price: $23.28 |
| 23 |
3220-3 |
NUT-HJ Price: $0.28 |
| 24 |
136-8484 |
FRAME-PULL, LH This part replaces 92-9176. Price: $382.66 |
| 25 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 94-2959. Price: $16.35 |
| 29 |
62-2460 |
LIFT ARM ASM Price: $130.13 |
| 30 |
94-5586-01 |
BAR ASM-LIFT, LH ARM This part replaces 94-5586. Price: $131.34 |
| 31 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 32 |
57-7650 |
SPRING-TORSION Price: $11.81 |
| 33 |
63-8750 |
PIN-PIVOT Price: $4.20 |
| 34 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 35 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 36 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 37 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 38 |
237-78 |
O-RING Price: $3.85 |
| 39 |
63-3850 |
HOSE ASM Price: $83.26 |

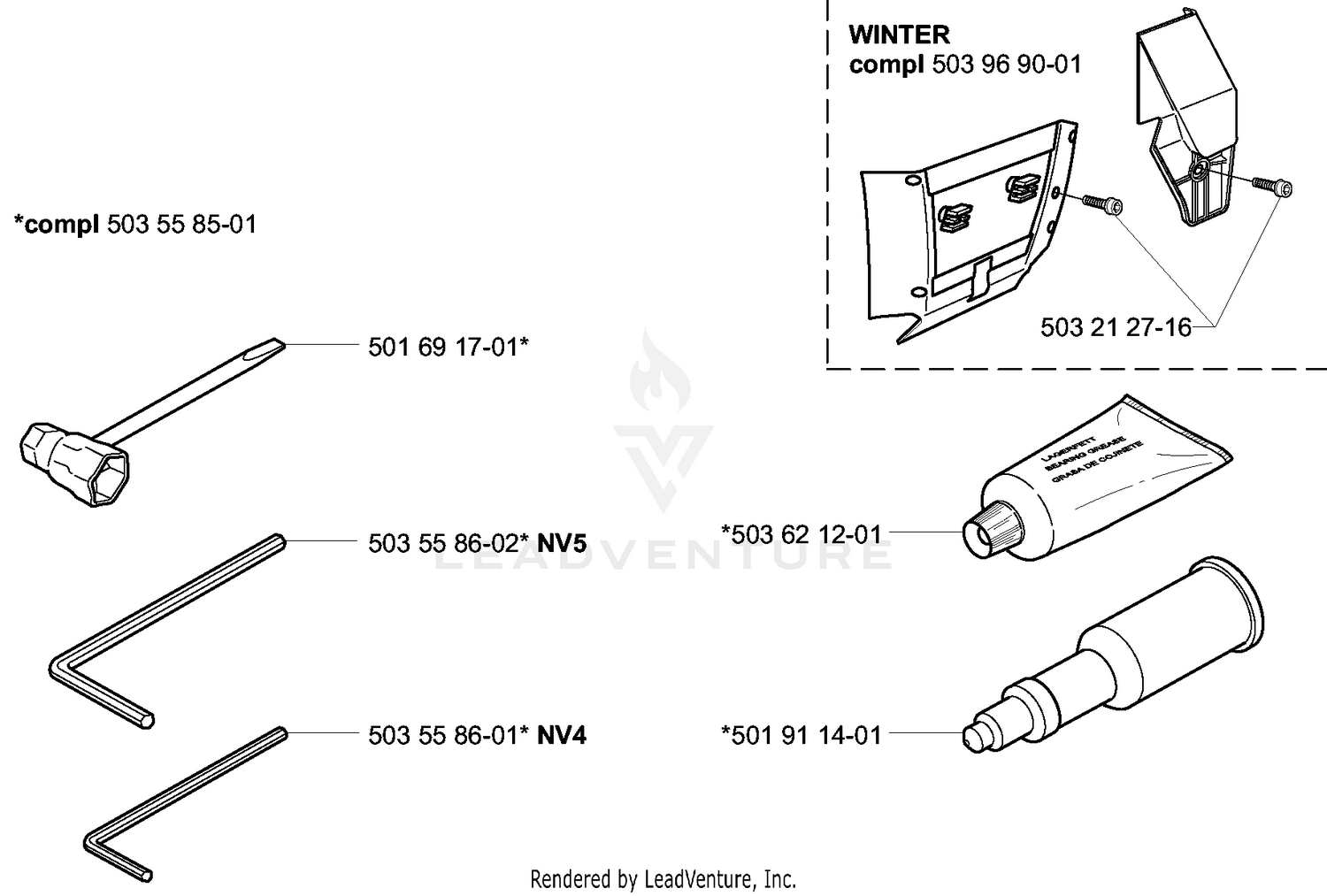

| 501691701 |
531222001 |
COMBINATION WRENCH COMBI TOOL This part replaces 501691701. Price: $5.99 |
| 501911401 |
501911402 |
GREASES This part replaces 501911401. Price: $7.99 |
| 503212716 |
586505201 |
NEEDS DESCRIPTION This part replaces 503212716. Price: $1.99 |
| 503558501 |
531222001 |
COMBINATION WRENCH COMBI TOOL This part replaces 503558501. Price: $5.99 |
| 503558601 |
503558601 |
L-SPANNER Price: $2.99 |
| 503558602 |
503558602 |
L-SPANNER Price: $2.99 |
| 503621201 |
503551601 |
OIL CAP This part replaces 503621201. Price: $6.99 |
