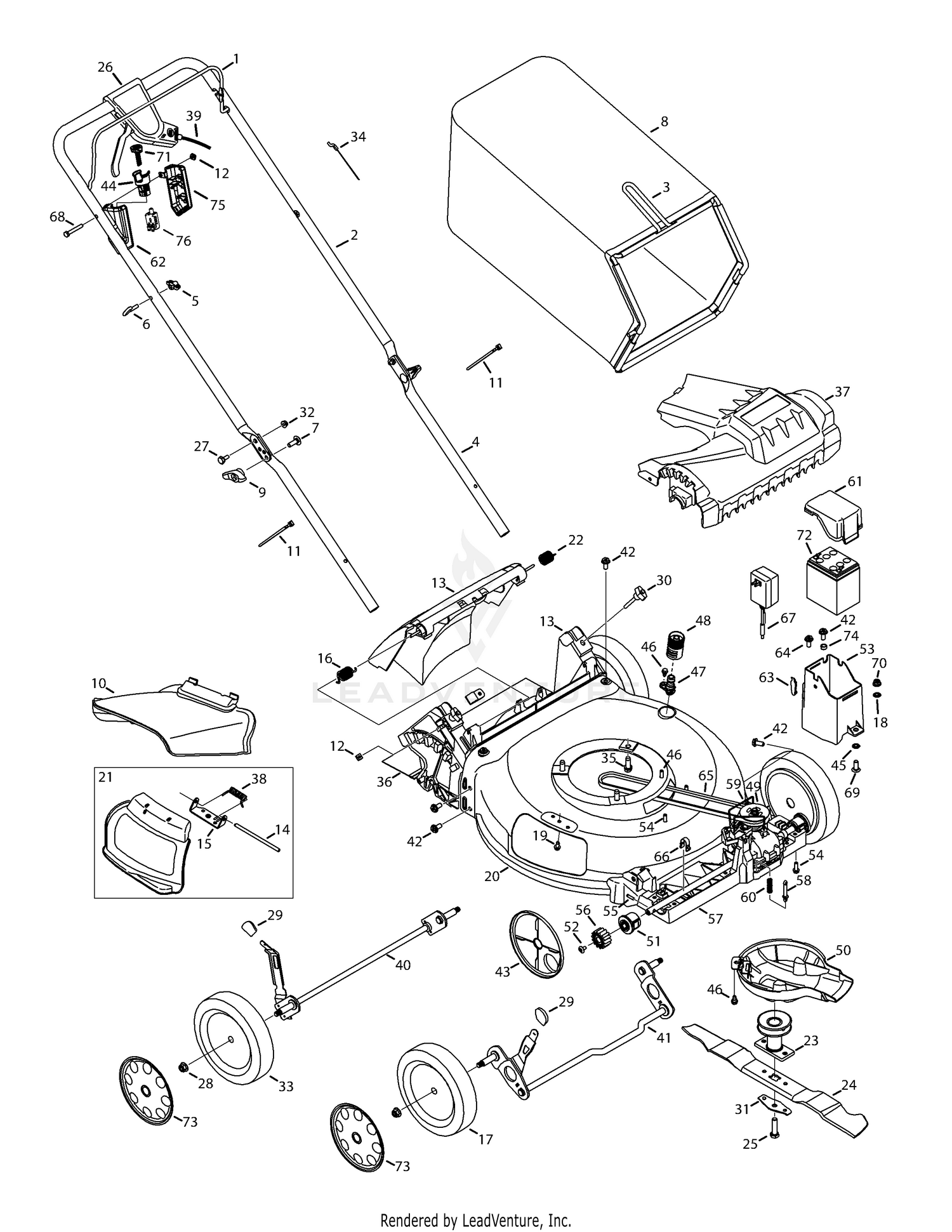

| Ref | Part Number | Description |
|---|
| 1 |
747-05267C |
Blade Control Price: $14.84 |
| 2 |
749-04679D-0637 |
UPPER SQUEEZE HANDLE (POWDER BLACK) This part replaces 749-04679. Price: $40.67 |
| 3 |
647-04271-0637 |
Grass Catcher Frame Price: $36.15 |
| 4 |
749-07298-0637 |
LOWER HANDLE (POWDER BLACK) This part replaces 749-04608A-0637. Price: $8.76 |
| 5 |
720-0279 |
Wing Nut Price: $3.93 |
| 6 |
710-1205 |
Rope Guide Price: $3.53 |
| 7 |
710-04998 |
Carriage Screw ,5/16-18 Price: $4.89 |
| 9 |
720-04124 |
Wing Knob Price: $4.37 |
| 10 |
731-07131 |
Side Chute Price: $13.83 |
| 11 |
725-0157 |
Cable Tie Price: $3.46 |
| 12 |
712-04222 |
Nut, Sq., 1/4-20 Price: $4.77 |
| 13 |
631-08159 |
REAR DOOR & BAFFLE ASSEMBLY This part replaces 631-04371A. Price: $48.98 |
| 14 |
747-0710A |
Hinge Pin Price: $3.86 |
| 15 |
787-01779 |
Chute Deflector Bracket Price: $4.13 |
| 16 |
732-05061B |
TORSION SPRING (RH) This part replaces 732-05061A. Price: $4.64 |
| 17 |
634-05039 |
Front Wheel Price: $36.45 |
| 18 |
736-0242 |
Washer, Bell, .340 x .872 x .080 Price: $3.75 |
| 19 |
710-05073 |
Screw, 1/4-20 x .500 Price: $3.52 |
| 20 |
787-01875C-0638 |
Deck , 21" Price: $111.78 |
| 22 |
732-05062A |
Torsion Spring - LH Price: $4.64 |
| 23 |
687-02528 |
BLADE ADAPTER Price: $34.68 |
| 24 |
942-0741A |
Mulching Blade Price: $27.55 |
| 25 |
710-1044 |
Screw , 3/8-24 x 1.50 Price: $3.48 |
| 26 |
753-06060A |
Control Lever Assembly Price: $23.77 |
| 27 |
738-04419A |
Sldr. Screw, .375 x .126 x 1/4-20 Price: $3.61 |
| 28 |
712-04217 |
Flange Lock Nut, 3/8-16 Price: $3.75 |
| 29 |
720-04131A |
Adjustment Lever Knob Price: $5.34 |
| 30 |
720-05066A |
Wing Nut Price: $3.93 |
| 31 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 32 |
712-04064 |
Nut, Flange Lock, 1/4-20 Price: $3.64 |
| 33 |
634-04660 |
Rear Wheel Price: $24.13 |
| 34 |
946-04661A |
Control Cable Price: $11.88 |
| 35 |
710-04683C |
SCREW 3/8-16 x 1 This part replaces 710-04683B. Price: $5.67 |
| 36 |
731-07203 |
Trail Shield Price: $9.41 |
| 37 |
731-07790A |
FRONT COVER This part replaces 731-07790. Price: $26.02 |
| 38 |
732-1014C |
Torsion Spring Price: $7.40 |
| 39 |
946-04655A |
Drive Cable Price: $21.28 |
| 41 |
911-04150 |
Front Axle Assembly Price: $40.29 |
| 42 |
710-04995A |
Screw, 5/16-14 x .750 Price: $3.61 |
| 43 |
731-07240A |
Wheel Dust Cover Price: $5.30 |
| 44 |
931-05131A |
Key Switch Price: $11.54 |
| 45 |
726-0201 |
Speed Nut Price: $6.01 |
| 46 |
738-04502 |
Shoulder Screw, 1/4-20 x 0.50 Price: $3.75 |
| 47 |
731-07487 |
Water Nozzle Price: $3.86 |
| 48 |
921-04041 |
Water Nozzle Adapter Price: $20.19 |
| 49 |
753-09444 |
TRANSMISSION KIT (SP FWD 53CM WALK) This part replaces 918-04881A. Price: $130.17 |
| 50 |
931-04535C |
ENGINE BAFFLE ASSEMBLY This part replaces 931-04535B. Price: $12.58 |
| 51 |
941-00019 |
Bearing Assembly Price: $5.78 |
| 52 |
710-04531 |
Screw, 1/4-20 x .390 Price: $4.42 |
| 53 |
731-07135 |
Battery Housing Price: $12.52 |
| 54 |
710-0895 |
Screw, 1/4-15 x .750 Price: $5.82 |
| 55 |
715-04099 |
Dowel Pin Price: $3.65 |
| 56 |
917-04801 |
Spur Gear, 14T - RH Price: $8.34 |
| 56 |
917-04802 |
Spur Gear, 14T - LH Price: $8.03 |
| 57 |
731-07789A |
LOWER TRAY This part replaces 731-07789. Price: $29.05 |
| 58 |
731-07355 |
Spring Body Price: $4.99 |
| 59 |
732-04675B |
TRANSMISSION WIRE This part replaces 732-04675A. Price: $3.48 |
| 60 |
732-04704 |
Compression Spring Price: $3.76 |
| 61 |
731-07154A |
Battery Housing Top Price: $7.49 |
| 62 |
731-09753B |
PUSH START HOUSING (RH) This part replaces 731-09753A. Price: $5.59 |
| 63 |
735-04213C |
LID SEAL This part replaces 735-04213B. Price: $3.99 |
| 64 |
738-04431A |
SHOULDER SCREW 5/16-14 x .972 Price: $3.36 |
| 65 |
954-04260 |
V-Belt Price: $26.49 |
| 66 |
787-01793 |
Front Axle Clip Price: $3.76 |
| 67 |
725-06121C |
BATTERY CHARGER This part replaces 725-06121A. Price: $41.56 |
| 68 |
710-0136 |
Screw, 1/4-20 x 1.75 Price: $3.66 |
| 69 |
710-0276 |
Bolt, Carr., 5/16-18 x 1.00 Price: $3.68 |
| 70 |
712-0429 |
Lock Nut, 5/16-18 This part replaces 912-0429. Price: $3.56 |
| 71 |
731-09728 |
Key Price: $4.19 |
| 72 |
725P04903 |
BATTERY 12V This part replaces 725-04903. Price: $99.17 |
| 73 |
731-07198 |
Hubcap, 8" Price: $6.28 |
| 74 |
750-05377 |
Spacer, .340 x .460 x .246 Price: $3.13 |
| 75 |
731-09755 |
Electric Start Housing, LH Price: $4.64 |
| 76 |
725-06114 |
Plunger Switch Price: $29.37 |
