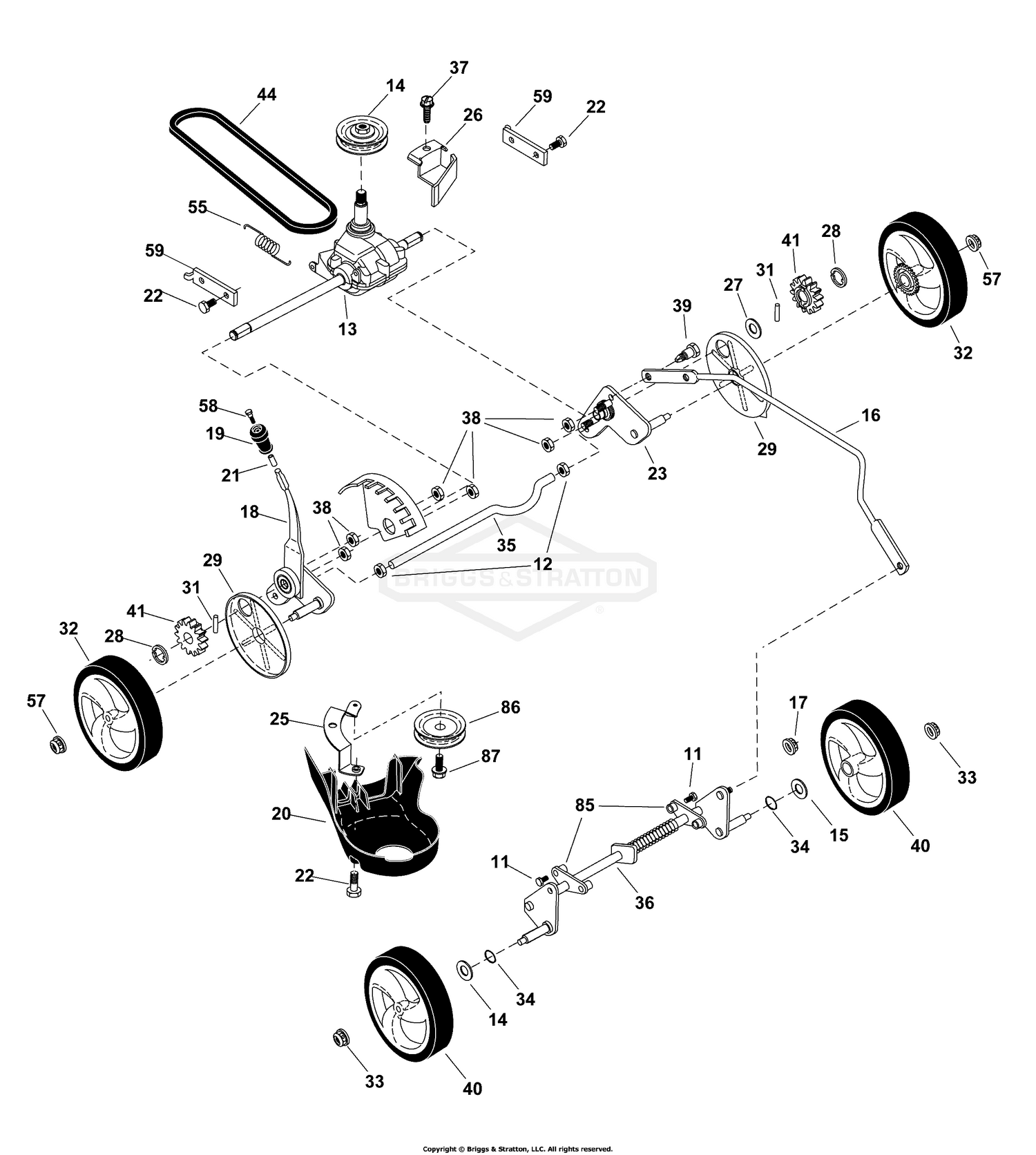

| Ref | Part Number | Description |
|---|
| 11 |
709159 |
Screw, Hex Washer Head, #13 x 3/4 Price: $7.11 |
| 12 |
705357 |
Nut Hex Jam Toplock 1/2-20 unf Price: $5.77 |
| 13 |
707704 |
GEARCASE ASSEMBLY, Rear Price: $286.19 |
| 14 |
709833 |
PULLEY Price: $14.22 |
| 15 |
709452 |
WASHER, Flat, 3/8 Price: $6.13 |
| 16 |
84005590 |
ROD, Height Adjust Price: $73.99 |
| 17 |
709354 |
NUT, HEX 5/16-18 This part replaces 709445. Price: $7.88 |
| 18 |
84005589 |
LEVER, Height Adjust Price: Call Us |
| 19 |
84005588 |
KNOB Price: $12.72 |
| 20 |
707709 |
COVER, Debris Price: $57.99 |
| 21 |
84005587 |
INSERT, Threaded Price: $11.79 |
| 22 |
705320 |
SCREW 5/16-18 Price: $9.42 |
| 23 |
84005586 |
AXLE, Rear Price: Call Us |
| 25 |
84005580 |
BRACKET, Mounting Price: Call Us |
| 26 |
84005579 |
GUIDE, Belt Price: $10.59 |
| 27 |
84005577 |
WASHER, Flat Price: Call Us |
| 28 |
709760 |
E-RING Price: $5.59 |
| 29 |
84005576 |
COVER, Wheel, Dust Price: $27.49 |
| 31 |
709310 |
Pawl, Drive Price: $5.54 |
| 32 |
84005985 |
WHEEL ASSEMBLY, Rear Price: $88.34 |
| 33 |
709321 |
NUT, HEX Price: $8.55 |
| 34 |
709288 |
O-Ring Price: $6.47 |
| 35 |
84005575 |
AXLE, Rear Price: $84.99 |
| 36 |
84005574 |
AXLE, Front Price: Call Us |
| 37 |
707720 |
SCREW, Hi-Lo Thread, #12 x 5/8 Price: $5.63 |
| 38 |
709237 |
Nut, Hex, Flanged 1/4-20 Price: $6.02 |
| 39 |
84005573 |
CAPSCREW Price: $11.79 |
| 40 |
84005986 |
WHEEL ASSEMBLY, Front Price: Call Us |
| 41 |
84005572 |
GEAR, Drive Price: $15.29 |
| 44 |
84005571 |
BELT, Drive Price: $21.48 |
| 55 |
707729 |
SPRING, Tension Price: $8.44 |
| 57 |
709088 |
NUT, Lock Flange, 3/8-16 UNC Price: $7.88 |
| 58 |
84005570 |
BOLT Price: $11.79 |
| 59 |
707730 |
BRACKET, Support Price: $5.63 |
| 86 |
84005568 |
PULLEY, Idler Price: $15.46 |
